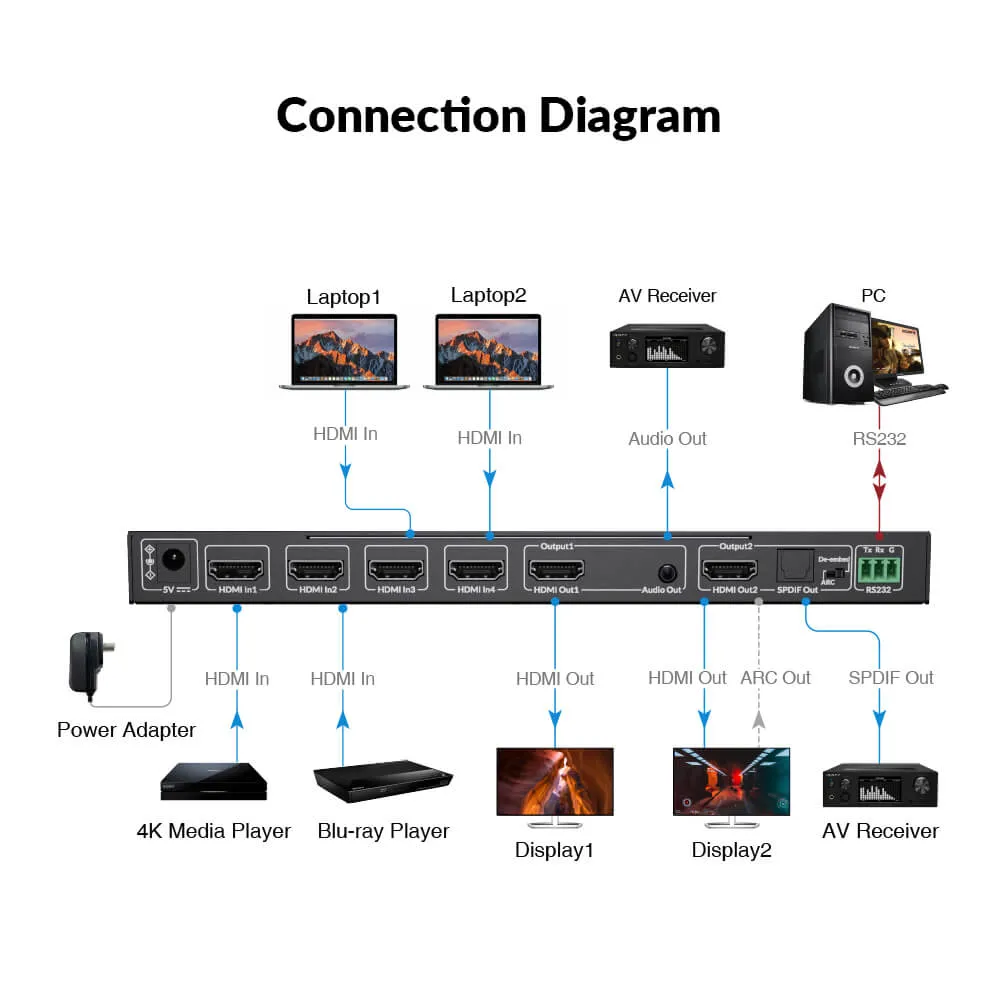

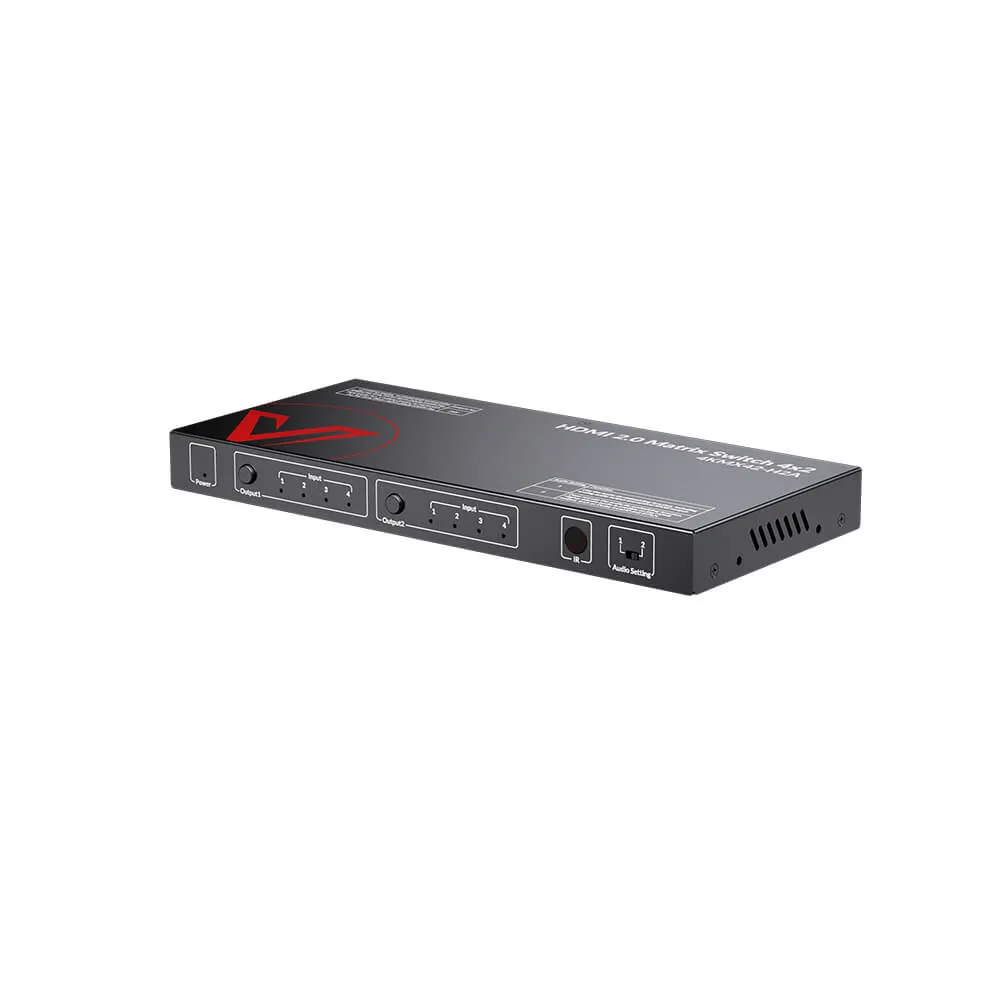

The AV Access 4KMX42-H2A allows users to connect a 4K video source and 1080P/4K monitors simultaneously to the matrix switcher, it can automatically downscale 4K to 1080P for the 1080P monitor, ensuring optimal video performance. It features 3 ways of control Control via front panel buttons, the included IR remote controller or RS232 command. The switch can distribute any of the four HDMI sources to two displays (output videos can be different or the same) and supports video resolution up to 4K@60Hz 4:4:4 with HDR 10, Dolby Vision or HLG. Also supports lossless audio formats, like Dolby Atmos and DTS:X, offering you amazing audio and video experiences.
Versatile 4 In 2 Out Matrix Switch
This AV Access 4KMX42-H2A 4K HDMI matrix switch boasts HDMI 2.0 and HDCP 2.2 compatibility. It independently distributes up to four Ultra HD 4K sources to two remarkable Ultra HD displays. With resolutions reaching up to 4K@60Hz 4:4:4 8-bit, you can experience unparalleled clarity and precision in every visual detail.
Innovative HDMI ARC Function

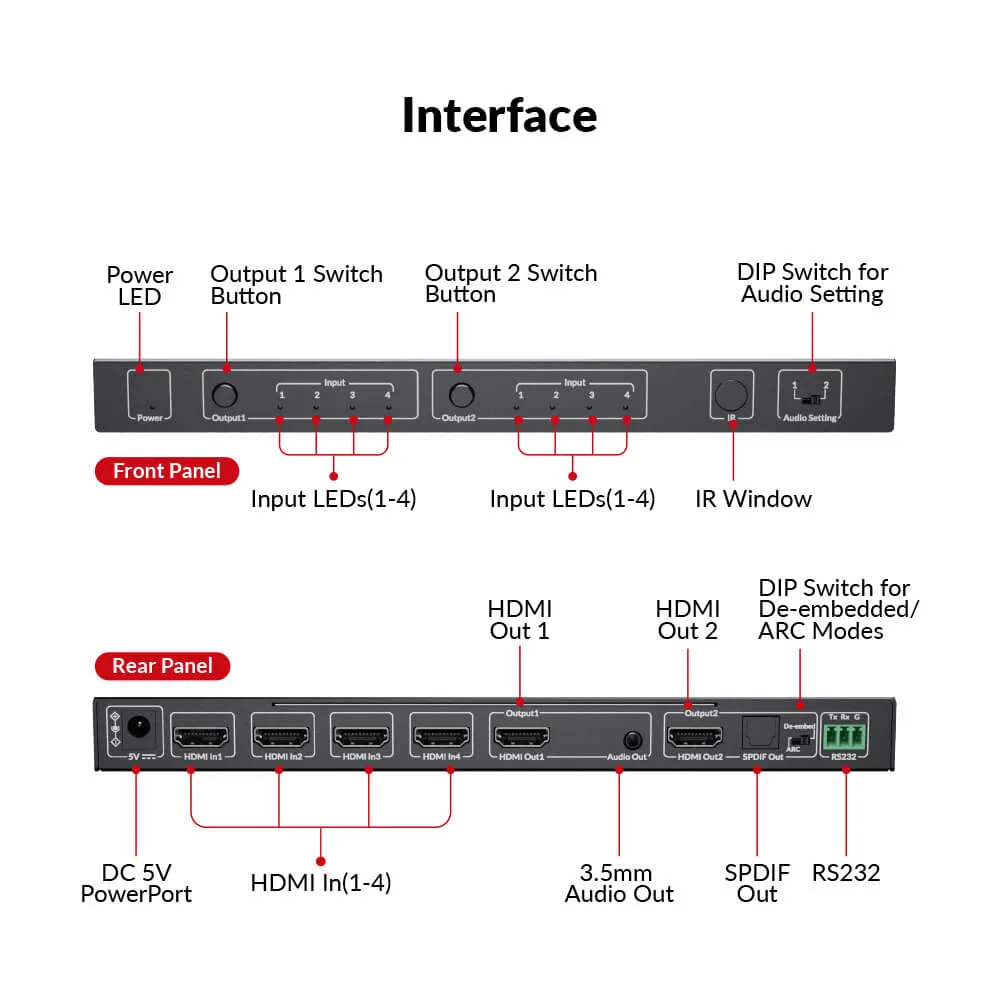

With the DIP switch near the HDMI out port 2, you can also configure the ARC mode to transfer 5.1 surround sound from your smart TV back to your AV receiver via the SPDIF out port. Thus, this 4K HDMI matrix switcher can save the hassles of using an extra audio cable and simplify your home theater installation.
Notes:
1. Only HDMI out port 2 supports ARC.
2.Before using the ARC function, please first ensure your AV receiver and TV both support ARC.
3.During use, please connect the HDMI cable to the ARC port of your TV. Also, please make sure the ARC and CEC functions of the AV receiver and the TV are enabled.
Excellent Audio Extraction
The audio extraction function in the 4KMX42-H2A will be activated when you switch the DIP switch to the de-embedded mode. The audio out port next to HDMI output 1 can distract HDMI audio to a headphone, providing stereo audio. The SPDIF out port next to HDMI output 2 can distract audio to an AV receiver, delivering 5.1 channel audio for an immersive experience.
Intelligent 4K to 1080P Downscaler
The AV Access 4KMX42-H2A can efficiently transmit your 4K video sources to both 4K and 1080P displays simultaneously by leveraging downscaling with our 4K HDMI matrix switch. Diverse output resolutions provide flexibility for cost-effective display distribution, helping you reduce costs.
3 Ways to Switch, As You Like
You can control this matrix switch 4KMX42-H2A with ease using our intuitive 3 options: utilize button controls on the device, operate wirelessly with the included IR remote, or seamlessly integrate through RS232 for advanced control. If you prefer RS232 serial communication, comprehensive API commands are provided in the manual, ensuring a well-documented and user-friendly experience.
