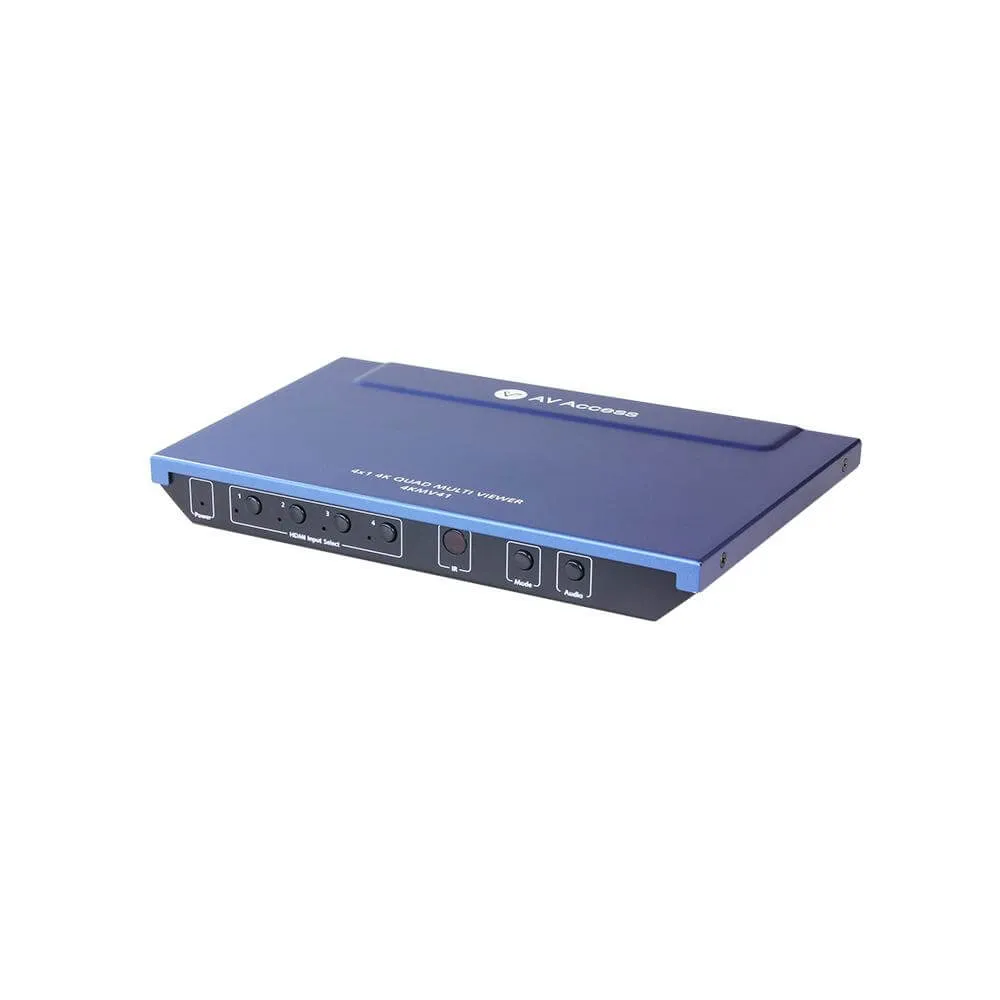

4KMV41 AV Access 4x1 Multiviewer, Quad View HDMI Switch w/ Seamless Switching & IR Remote Control
4KMV41 AV Access 4x1 4K HDMI Multiviewer, Quad View HDMI Switch w/ Seamless Switching & IR Remote Control - Image 2
4KMV41 AV Access 4x1 4K HDMI Multiviewer, Quad View HDMI Switch w/ Seamless Switching & IR Remote Control - Image 3
4KMV41 AV Access 4x1 4K HDMI Multiviewer, Quad View HDMI Switch w/ Seamless Switching & IR Remote Control - Image 4

4KMV41 AV Access 4×1 4K HDMI Multiviewer, Quad View HDMI Switch w/ Seamless Switching & IR Remote Control

The AV Access 4KMV41  4×1 HDMI Switch with Multi-Viewing 4KMV41 allows you to display up to four video sources on single TV simultaneously to meet the demands of advertising, video conference, security monitoring, live broadcasting, etc. Supporting up to 4K@30 UHD resolution, seamless switching, IR remote control and other amazing functions, the device makes control and switching a total breeze.

4KMV41 Main Features:

  • 4×1 HDMI switch with 4K input/output.
  • Supports video resolution up to 4K@30Hz 4:4:4 8bit.
  • Supports multi-view function with 5 viewing modes, including Original, Dual view, Master mode, PIP mode and Quad mode.
  • Supports seamless switching of four inputs in the same layout.
  • Rich control options, including IR Remote, front panel buttons and RS232 control.

Manual

Connection Diagram

API Command Guide

SKU: 4KMV41 Categories: , , , , , , , , , , , , , , , Tags: , ,

Description

Newest 4×1 4K HDMI Multiviewer w/ Seamless Switching

4KMV41 is AV Access brand-new 4×1 4K HDMI switch with multi-viewing function. It allows you to stream up to four video sources onto a single TV screen at the same time with 5 different viewing modes. With up to 4K@30 UHD resolution, seamless switching and flexible control options, this 4K HDMI multi-viewer makes control and switching a total breeze, ideal for advertising, video conference, security monitoring, live broadcasting, etc.

Main Features:

  • 4×1 HDMI switch with 4K input/output.
  • Supports video resolution up to 4K@30Hz 4:4:4 8bit.
  • Supports multi-view function with 5 viewing modes, including Original, Dual view, Master mode, PIP mode and Quad mode.
  • Supports seamless switching of four inputs in the same layout.
  • Rich control options, including IR Remote, front panel buttons and RS232 control.

4×1 HDMI Switch with Multi-Viewing

4KMV41 allows you to display up to four video sources on single TV simultaneously to meet the demands of advertising, video conference, security monitoring, live broadcasting, etc. Supporting up to 4K@30 UHD resolution, seamless switching, IR remote control and other amazing functions, the device makes control and switching a total breeze.

Five Different Screen Layout Modes

With the IR remote, you can easily adjust the multi-view screen layout to meet your own need, including original, dual-view, master mode, PIP mode and quad mode. When displayed in dual-view or master mode, the images are shown in normal aspect ratio to keep it undistorted. You can also use RS232 commands to squash the images to fit the full screen.

4KMV41_5 Different Multiviewing Layout

Various Control Options

You can effortlessly control the HDMI switch via front panel buttons, IR remote or RS-232 command. What’s more, the included IR receiver cable is available for you to easily extend the IR signal.

Fast Seamless Switching

With the built-in scaler, the device lets you seamlessly switch between sources within 2~3 seconds. Smooth screen transitions deliver consistent performance and reliability so you never miss a moment.

4KMV41_Seamless Switching

Connection Diagram

4KMV41_Connection Diagram

Application Scenarios

4K HDMI Switch with Multi-Viewing:
Switch easily between four different HDMI source devices with up to 4K@30 UHD resolution; stream your STB, DVD player, laptop and game console onto the same TV screen simultaneously for versatile viewing experience.

5 Different Viewing Modes:
5 multi-view screen layouts (original, dual-view, master mode, PIP mode and quad mode) can meet your demands of advertising, video conference, security monitoring, live broadcasting, etc.

3 Ways to Control the Switch:
Effortlessly control the HDMI switch via front panel buttons, IR remote or RS-232 command. And the included IR receiver cable is available for you to easily extend the IR signal.

Fast Seamless Switching:
The built-in scaler lets you seamlessly switch between sources within 2~3 seconds. Smooth screen transitions ensure you never miss a moment.

PART NUMBER: AVAccess 4KMV41

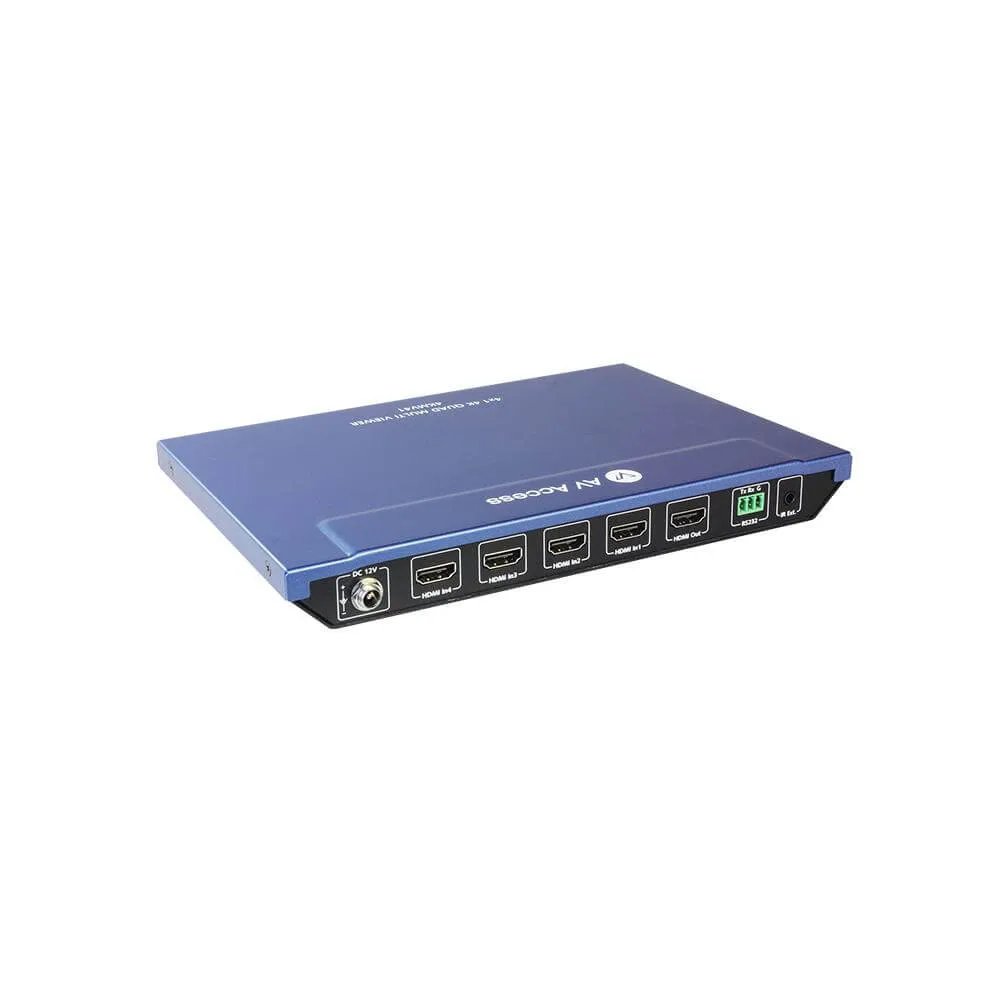

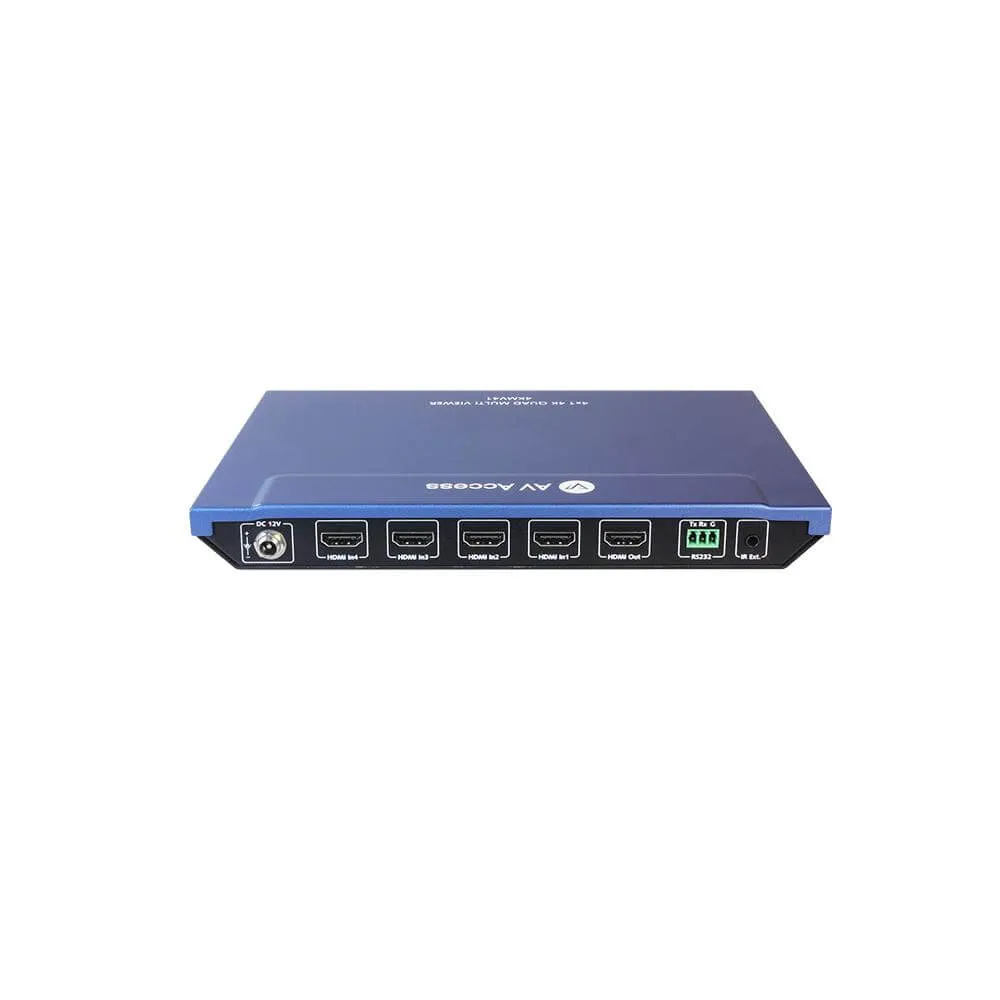

Input/Output Port 4 x HDMI In, 1 x HDMI Out, 1 x RS232, 1 x IR Ext.,1 x DC 12V IN
Input/Output Signal Type Input/Output: HDMI with 4K@30Hz 4:4:4 8bit, HDCP 1.4
Input/Output Resolution Supported VESA:800×6008, 1280×9608, 1280×10248,1360×7688, 1366×7688, 1600×9008, 1600×12008, 3840×21602,3,5

SMPTE:

1280x720P6, 1920x1080P1,2,3,4,5,6,7,8, 3840×21602,3,5,

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz
Audio Format Stereo
Maximum Data Rate 10.2 Gbps
Control Method IR Remote, Front Panel Buttons, RS232 (API Commands)
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection Human-body Model:±8kV (Air-gap discharge)/

±4kV (Contact discharge)
Power Supply DC 12V 2A
Power Consumption (Max) 8.97W
Device Dimension(W x H x D) 230.03mm x 25mm x 142.6mm/9.06” x 0.98” x5.61”
Product Weight 0.54kg/1.19lb

WHAT’S IN THE BOX

  • 1x 4KMV41 HDMI Switch
  • 1x Power Adapter (DC 12V, 2A) with US Pins
  • 1x IR Remote
  • 1x IR Receiver
  • 1x Phoenix Male Connector (3.5mm, 3-Pin)
  • 4x Rubber Feet
  • 1x User Manual
