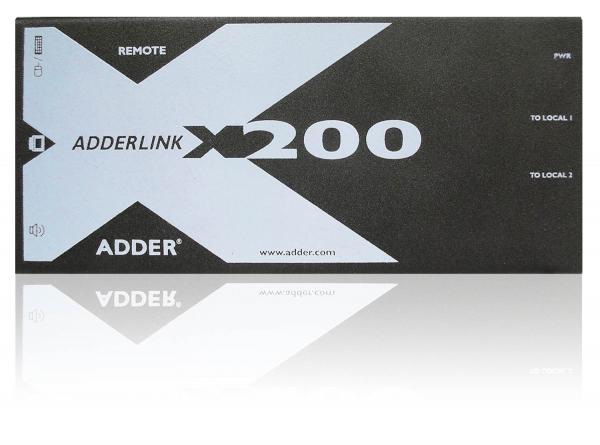

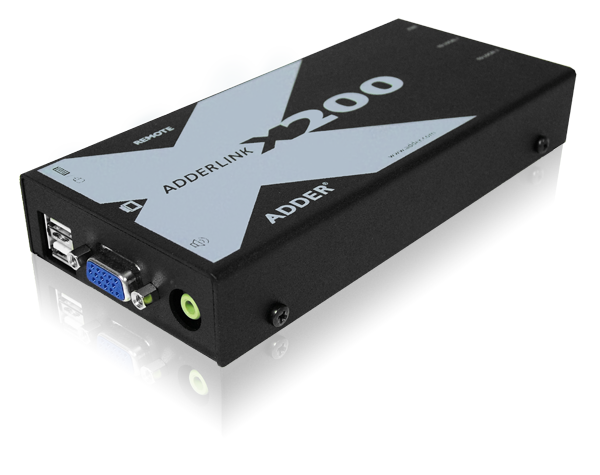

X200AS-USB/P AdderLink USB & VGA Extender with Audio & Video Compensation

£499.00 inc VAT

AdderLink X200AS-USB/P USB, VGA, Audio and Video Compensation extender (Pair) features resolutions 1920 x 1200 at distances up to 50 m/165 ft, 1600 x 1200 at distances up to 200 m/650 ft, 1280 x 1024 at distances up to 300 m/1000 ft. using CATx cable (x=5,5e,6).

Data Sheet

Manual

SKU: X200AS-USB/P Categories: , , , , Tags: , , , , , ,

Description

AdderLink X200AS-USB/P Pair with fully featured USB keyboard, video and mouse extender with 44.1kHz digital stereo audio support for two computers.

The AdderLink X200AS-USB/P suports resolutions of: 1920 x 1200 to 50 m (165 ft.). 1600 x 1200 to 200 m (650 ft.) and 1280 x 1024 to 300 m (1000 ft.)

X200AS-USB/P has been designed for use in applications where up to two computers can have their keyboard, video, audio and mouse control extended up to 300 m (1000 ft.) across CAT5 or higher UTP cable.

The ADDERLink X200AS-USB/P provides absolute real time keyboard and mouse performance along with hi-definition, hi-resolution video over a VGA interface.

Features

  • Video performance: Industry leading resolutions of:
    1920 x 1200 to 50 m (165 ft.)
    1600 x 1200 to 200 m (650 ft.)
    1280 x 1024 to 300 m (1000 ft.)
  • Video compensation: the ADDERLink X200 applies 128 steps of signal compensation enabling fine picture adjustments.
  • Brightness control: the ADDERLink X200 offers its own brightness correction to ensure images are crisp, clear and bright.
  • Integrated De-Skew: the ADDERLink X200AS/R model has integrated skew correction with a 300MHz bandwidth (1/4 of a pixel movement at 1600 x 1200 resolution). This removes the video skew issues that can be caused by
    longer CATx cables.
  • Two port integrated KVM switch: each receiver is fitted with two ports to enable connection to a local and remote computer, or two remote computers. The user can quickly select between these ports using keyboard hotkeys or mouse control. Individual video brightness, compensation and skew settings can be applied to each connection.

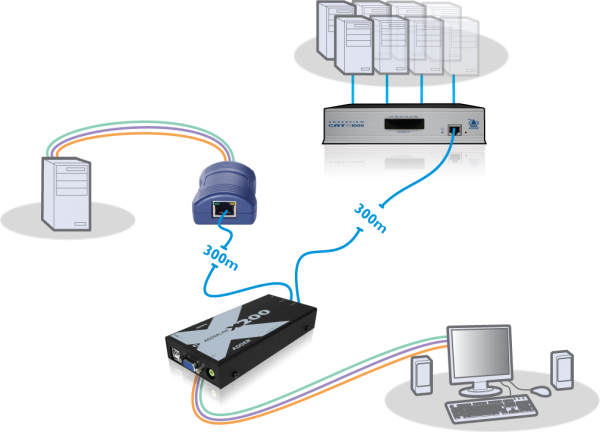

  • Flexible system configuration: each receiver may be connected to one or two USB, PS/2 or Sun style computer access modules. Furthermore, the X200 receiver unit may be used as the remote user station for any ADDER CATx KVM switch.
  • Emulated DDC: unless an extender actively supports DDC some wellknown high performance video cards cannot be used at high resolutions. The ADDERLink X200 fully supports DDC.
  • Digital audio: 44.1kHz digital stereo audio delivers high fidelity audio for speakers.

Specifications

Video Resolution

1920 x 1200 at distances up to 50 m/165 ft, 1600 x 1200 at distances up to 200 m/650 ft, 1280 x 1024 at distances up to 300 m/1000 ft.

Extension Distance

Up to 300 m/1000 ft. using CATx cable (x=5,5e,6)

Devices Supported

Supports computers with USB style keyboard and mice, flat-screen and CRT style monitors with standard HDD-15 video connectors and optional audio through 3.5 mm audio jack.

O/S Compatability

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

Connectors (USB CAM)

Video: HDD-15 Optional audio: 3.5 mm jack
Keyboard, Mouse: USB type A CATx: RJ45 connector

Connectors (X200 remote unit)

Video: HDD-15 Optional audio: 3.5 mm jack
Keyboard, Mouse: USB Type A CATx: 2 x RJ45 connector
Power: 2.5 mm DC jack

Physical (USB CAM)

Combination of plastic enclosure and cables.
Enclosure: 64 mm/2.5 in. x 45 mm/1.8 in. x 25 mm/1 in.
Cables: 340 mm/13.4 in. long

Physical (X200 remote unit)

All metal case, 172 mm/6.8 in. x 26 mm/1 in. x 75 mm/3 in. 430 g/1 lb.

Power Supply

100 – 240VAC 50/60Hz (X200 remote unit only)

Order Codes

Remote unit only (X200)

X200/R-XX (100 m/330 ft, no audio/de-skew)
X200A/R-XX (100 m/330 ft, audio, no de-skew)
X200AS/R-XX (300 m/1000 ft, audio/de-skew)

Remote unit (X200) with CAM (computer access module)

X200-USB/P-XX (X200 USB receiver with CATX-USB computer access module)
X200A-USB/P-XX (X200A USB receiver  with CATX-USBA computer access module)
X200AS-USB/P-XX (X200AS USB receiver with CATX-USBA computer access module)

XX= Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
AUS = Australia

Additional Computer Access Modules (for second computer)

CATX-USB (USB computer access module)
CATX-USBA (USB computer access module with audio)
CATX-PS2 (PS2 computer access module)
CATX-PS2A (PS2 computer access module with audio)
CATX-SUNA (Computer access module with audio for Sun)

Approvals

CE, FCC
