X2-SILVER/P AdderLink PS2 VGA and RS232 CATx KVM Extender

£599.00 inc VAT

AdderLink X2-SILVER/P PS2, VGA, abd RS232 up to 300m  CATx KVM extender offers a high video resolution and video compensation. It supports DDC and can be rack mounted.

Data Sheet

Manual

SKU: X2-SILVER/P Categories: , , , , Tags: , , , , , ,

Description

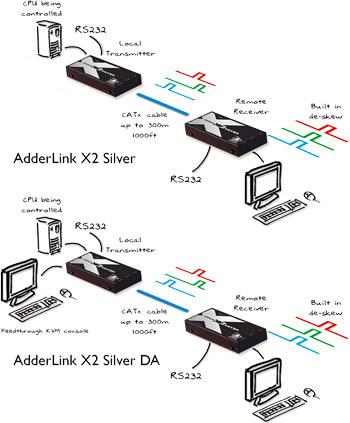

The ADDERLink X2-Silver/P, (part of the ADDERLink X Series range), extends very high quality video, keyboard, mouse and transparent, high speed RS232 up to 300m (1000ft) over Category 5 or higher UTP cable. The ADDERLink X2-Silver/P has been designed to provide industry-leading video clarity, compatibility and high rack densities.

X2-DA-SILVER/P dual access version provides local KVM access at the computer for local as well as remote control.

Features

  • Video performance: industry leading resolutions of 1600×1200 are achievable at 200m (650ft) and 1280×1024 at 300m (1000ft).
  • Video compensation: the ADDERLink X2 applies a high level of signal compensation that allows for a greatly increased range of very smooth and fine adjustments.
  • Emulated DDC: unless an extender actively supports DDC some well-known high performance video cards cannot be used at high resolutions. The ADDERLink X2 fully supports DDC.
  • Rack options: both transmitter and receiver units can be used stand-alone or up to 16 units can be mounted into a 2U chassis

Specifications

Video resolutions

1600×1200 at distances up to 200m (650ft)
1280×1024 at distances up to 300m (1000ft)

Extension distance

Up to 300 metres/1000ft using CATx cable (x=5,5e,6,7)

Devices supported

Supports PS/2 style keyboard, PS/2 style mouse, flat-screen and CRT style monitors with standard HD-15 video connectors. Transparent RS232 connection.

O/S compatibility

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

Connectors (Local computer-end unit)

Computer connection: 1 x 25-way female connector (cable supplied)

Local console connection (DA only)

video HDD15, keyboard/mouse: MiniDin6.
CATx: 1 x RJ45 connector. Serial: DB9.
Optional power: 2.5mm DC jack

Connectors (Remote console-end unit)

Video: HDD15. Keyboard/Mouse: MiniDin6.
CATx: 1 x RJ45 connector. Serial: DB9.
Power: 2.5mm DC jack

Physical (Tx and Rx units)

172mm x 26mm x 75mm, 430g, fits into one slot width in the X-Series rack mount chassis (16 units fit into 2U of rack space)

Power supply

100-240VAC, 50-60Hz

Operating temperature

0 – 40 deg C (32 to 104 deg F)

Approvals

CE, FCC
