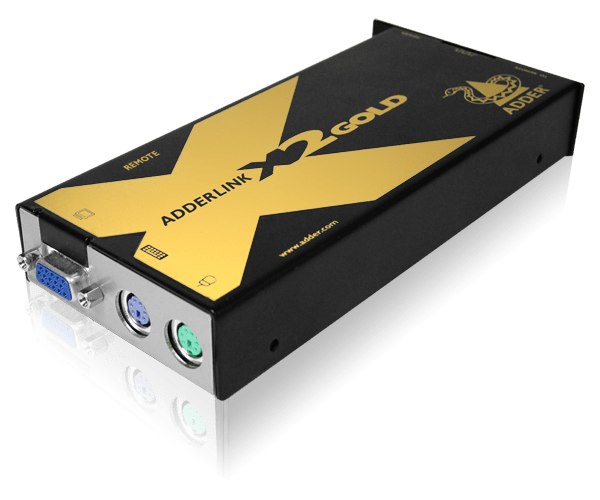

X2-GOLD/P AdderLink PS2 VGA & RS232 CATx KVM Extender

AdderLink X2-GOLD/P PS2, VGA, RS232, and Audio CATx KVM extender offers sharp, bright and ultra high resolution video images up toi 300m. It features video compensation, DDc, brightness control and integrated DeSkew.

Data Sheet

http://www.adder.com/sites/default/files/pdf/manuals/X2-Series%20v1-3a.pdfManual

SKU: X2-GOLD/P Categories: , , , , , Tags: , , , , , , ,

Description

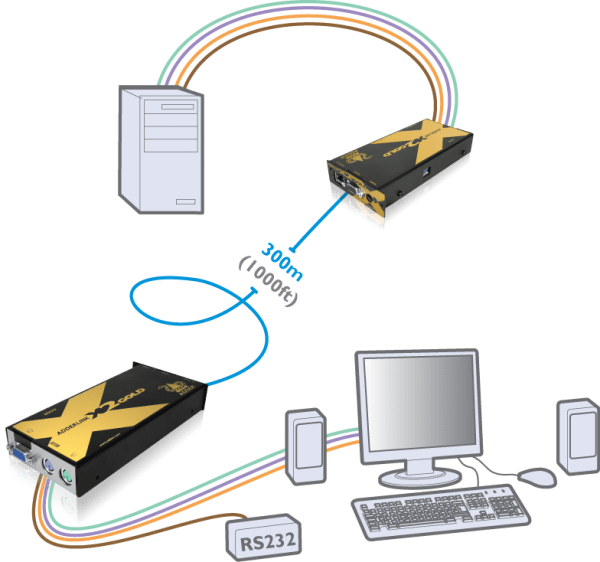

The ADDERLink X2-Gold/P, (part of the ADDERLink X Series range), extends very high quality video, keyboard, mouse, transparent, high speed RS232 and digital audio up to 300m (1000ft) over Category 5 or higher UTP cable. The ADDERLink X2-Gold/P has been designed to provide industry leading video clarity, audio quality, compatibility and high rack densities.

AdderLink X2-DA-GOLD/P dual access version provides local KVM access at the computer for local as well as remote control.

Features

  • Video performance: industry leading resolutions of 1600×1200 are achievable at 200m (650ft) and 1280×1024 at 300m (1000ft).
  • Video compensation: the ADDERLink X2 applies a high level of signal compensation that allows for a greatly increased range of very smooth and fine adjustments.
  • Emulated DDC: unless an extender actively supports DDC some well-known high performance video cards cannot be used at high resolutions. The ADDERLink X2 fully supports DDC.
  • Brightness control: the ADDERLink X2-Gold offers its own brightness correction to ensure that the image is crisp, clear and bright, regardless of the distance.
  • Audio Support: digital audio transmission delivers high fidelity; click less stereo audio for speakers and microphones.
  • Rack options: both transmitter and receiver units can be used stand-alone or up to 16 units can be mounted into a 2U chassis

Specifications

Video resolutions

1900×1400 at distances up to 50m (150ft), 1600×1200 at distances up to 200m (650ft), 1280×1024 at distances up to 300m (1000ft)

Extension distance

Up to 300 metres/1000ft using CATx cable (x=5,5e,6,7)

Devices supported

Supports PS/2 style keyboard, PS/2 style mouse, flat-screen and CRT style monitors with standard HD-15 video connectors. Transparent RS232 connection.

O/S compatibility

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

Connectors (Local computer-end unit)

Computer connection: 1 x 25-way female connector (cable supplied). Local console connection (DA only) video HDD15, keyboard/mouse: MiniDin6.
Audio: 1x light green 3.5mm audio jack.
CATx: 1 x RJ45 connector. Serial: DB9.
Optional power: 2.5mm DC jack.

Connectors (Remote console-end unit)

Video: HDD15 Keyboard/Mouse: MiniDin6.
Audio: 1 x light green 3.5mm audio jack and 1 x pink 3.5mm audio jack.
CATx: 1 x RJ45 connector. Serial: DB9.
Power: 2.5mm DC jack.

Physical (Tx and Rx units)

172mm x 26mm x 75mm, 430g, fits into one slot width in the X-Series rack mount chassis (16 units fit into 2U of rack space)

Power supply

100-240VAC, 50-60Hz

Operating temperature

0 – 40 deg C / 32 to 104 deg F

Approvals

CE, FCC
