X2-DA-GOLD/P AdderLink PS2 VGA & RS232 CATx KVM Extender

AdderLink X2-DA-GOLD/P PS2, VGA, RS232, Audio and a local access  CATx KVM extender offers sharp, bright and ultra high resolution video images up toi 300m. It features video compensation, DDc, brightness control and integrated DeSkew.

Data Sheet

Manual

SKU: X2-DA-GOLD/P Categories: , , , , , Tags: , , , , , , , ,

Description

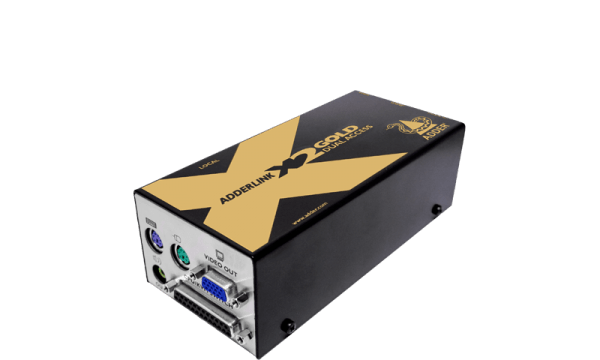

AdderLink X2-DA-GOLD/P dual access version provides local KVM access at the computer for local as well as remote control.

The ADDERLink X2-DA-Gold/P, (part of the ADDERLink X Series range), extends very high quality video, keyboard, mouse, transparent, high speed RS232 and digital audio up to 300m (1000ft) over Category 5 or higher UTP cable. The ADDERLink X2-DA-Gold/P has been designed to provide industry leading video clarity, audio quality, compatibility and high rack densities.

Features

  • Video performance: industry leading resolutions of 1600×1200 are achievable at 200m (650ft) and 1280×1024 at 300m (1000ft).
  • Video compensation: the ADDERLink X2 applies a high level of signal compensation that allows for a greatly increased range of very smooth and fine adjustments.
  • Emulated DDC: unless an extender actively supports DDC some well-known high performance video cards cannot be used at high resolutions. The ADDERLink X2 fully supports DDC.
  • Brightness control: the ADDERLink X2-Gold offers its own brightness correction to ensure that the image is crisp, clear and bright, regardless of the distance.
  • Audio Support: digital audio transmission delivers high fidelity; click less stereo audio for speakers and microphones.
  • Rack options: both transmitter and receiver units can be used stand-alone or up to 16 units can be mounted into a 2U chassis

Specifications

Video resolutions

1900×1400 at distances up to 50m (150ft), 1600×1200 at distances up to 200m (650ft), 1280×1024 at distances up to 300m (1000ft)

Extension distance

Up to 300 metres/1000ft using CATx cable (x=5,5e,6,7)

Devices supported

Supports PS/2 style keyboard, PS/2 style mouse, flat-screen and CRT style monitors with standard HD-15 video connectors. Transparent RS232 connection.

O/S compatibility

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

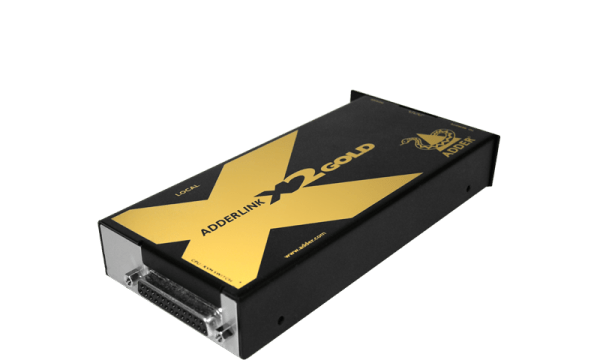

Connectors (Local computer-end unit)

Computer connection: 1 x 25-way female connector (cable supplied). Local console connection (DA only) video HDD15, keyboard/mouse: MiniDin6.
Audio: 1x light green 3.5mm audio jack.
CATx: 1 x RJ45 connector. Serial: DB9.
Optional power: 2.5mm DC jack.

Connectors (Remote console-end unit)

Video: HDD15 Keyboard/Mouse: MiniDin6.
Audio: 1 x light green 3.5mm audio jack and 1 x pink 3.5mm audio jack.
CATx: 1 x RJ45 connector. Serial: DB9.
Power: 2.5mm DC jack.

Physical (Tx and Rx units)

172mm x 26mm x 75mm, 430g, fits into one slot width in the X-Series rack mount chassis (16 units fit into 2U of rack space)

Power supply

100-240VAC, 50-60Hz

Operating temperature

0 – 40 deg C / 32 to 104 deg F

Approvals

CE, FCC
