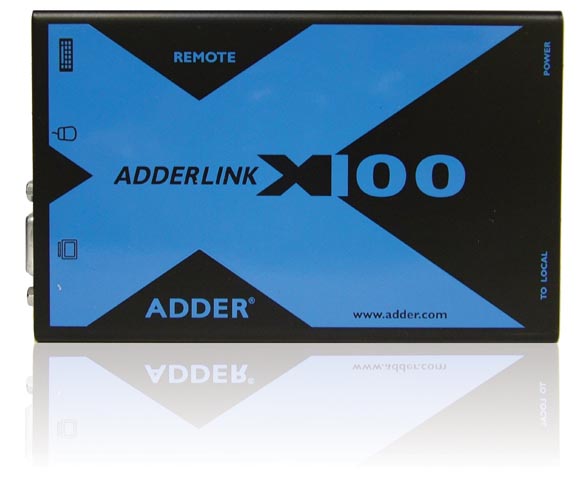

X100/R AdderLink PS2 & VGA Remote User Station

£275.00 inc VAT

Adder X100/R PS2 & VGA CATx Remote user station up to 100m/330ft using CATx cable (x=5,5e,6,7) supports any computer with PS/2 or USB style keyboard and mice, flat-screen and CRT style monitors with standard HD-15 video connectors and optional audio through 3.5mm audio jack.

Data Sheet

Manual

SKU: X100/R Categories: , , , , Tags: , ,

Description

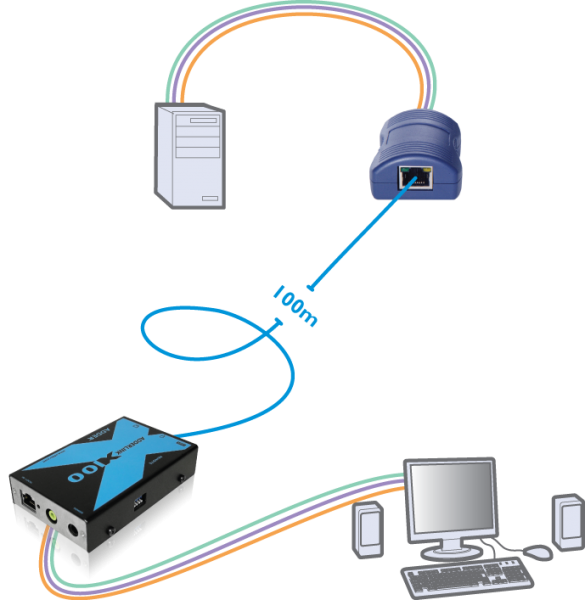

AdderLink X100/R CATx Receiver /Remote User Station  has been designed for use in applications where keyboard, mouse, high quality video and audio needs to be extended no more than 100m (330ft) over category 5 or higher UTP cable.

The ADDERLink X100/R provide industry-leading video clarity, audio quality and compatibility with a resolutions of 1600 x 1200 are achievable up to 100m (330ft), 1900 x 1440 up to 50m (165ft).

Features

  • Video performance 1600 x 1200 are achievable up to 100m (330ft), 1900 x 1440 up to 50m (165ft).
  • Emulated DDC
  • USB Emulation
  • Variety of models available
  • To suit the maximum possible number of applications the X-100 is available in a number of models, PS/2 and video (X-100-PS2/P) PS/2, video and audio (X-100A-PS2/P), USB and video (X-100-USB/P) and USB, video and audio (X-100A-USB/P).



Specifications

Video resolutions

1600 x 1200 at distances up to 100m/330ft,1900 x 1440 at distances up to 50m/165ft

Extension distance

Up to 100m/330ft using CATx cable (x=5,5e,6,7)

Devices supported

Supports any computer with PS/2 or USB style keyboard and mice, flat-screen and CRT style monitors with standard HD-15 video connectors and optional audio through 3.5mm audio jack

O/S compatibility

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

Connectors (local)

Video: HDD15
Keyboard Mouse: MiniDin6.
Optional audio: 3.5mm jack
CATx: 1 x RJ45 connector
Or
Video: HDD15
Keyboard Mouse: USB type A.
Optional audio: 3.5mm jack
CATx: 1 x RJ45 connector

Connectors (remote)

Video: HDD15
Keyboard Mouse: MiniDin6.
Optional audio: 3.5mm jack
CATx: 1 x RJ45 connector.
Power: 2.5mm DC jack

Physical (local)

Combination of plastic enclosure and cables.
Enclosure: 64mm x 45mm x 25mm
Cables: 340mm long

Physical (remote)

All metal case, 123mm x 74mm x 26 mm

Power supply

100 – 240VAC 50/60Hz

Operating temperature

0 – 40 deg C (32 to 104 deg F)

Approvals

CE, FCC
