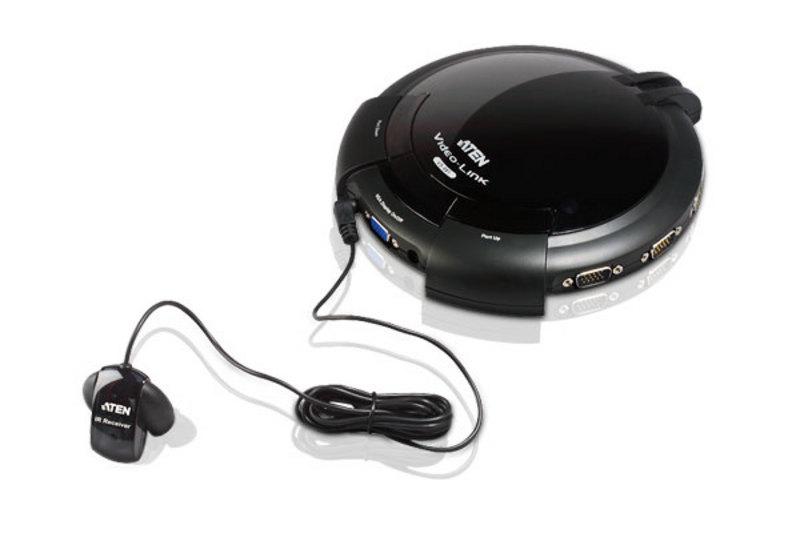

VS881 Aten 8-Port Video Switch

£125.00 inc VAT

Aten VS881 8-port VGA  switch allows 8 independent computers or notebook computers to display their video outputs on a single monitor or on the screen via a multimedia projector. It provides a best solution of presentations and speeches to enterprises and education centers. It features fast and convenient computer selection via pushbuttons or infrared (IR) remote control, superior video quality – up to 2048×1536; DDC; DDC2; DDC2B and supports VGA, SVGA, XGA,UXGA, QXGA and multisync monitors.

Data Sheet

vs881-s_2014-03-19.pdf

VS881-IR Command-s_2013-08-30.pdf



Description

The VS881 is a video switch with 8 ports. It allows 8 independent computers or notebook computers to display their video outputs on a single monitor or on the screen via a multimedia projector. It provides a best solution of presentations and speeches to enterprises and education centers.

  • Displays the video output of eight separate computers on a single monitor or projector
  • Modern concentric design with intuitive connector layout for quick and easy access
  • Fast and convenient computer selection via pushbuttons or infrared (IR) remote control
  • Extra-thin infrared handset allows easy storage in the mother unit
  • Electronic switching for greater reliability and durability
  • Easy installation – no software required – no confi guration
  • Superior video quality – up to 2048×1536; DDC; DDC2; DDC2B
  • Supports VGA, SVGA, XGA,UXGA, QXGA and multisync monitors
  • Automatic incoming signal selection (Auto)
Video Input
Interface 8 x HDB-15 Male (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output
Interface 1 x HDB-15 Female (Blue)
Impedance 75 Ώ
Max. Distance 10 m
Video
Max. Bandwidth 300 MHz
Max. Resolution Up to 1920 x 1440
Max. Distance Up to 10 m
Control
IR 1 x Mini Stereo Jack Female (Black)
Power
Connectors 1 x DC Jack
Consumption 5 VDC, 4.5W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.45 kg
Dimensions (L x W x H) 17.35 x 19.13 x 4.50 cm
  • 1x 8-Port Video Switch
  • 1x IR Remote Control Unit
  • 1x Infrared Receiver
  • 1x VGA Cable (1.2 m)
  • 1x Power Adapter
  • 1x User Instructions
