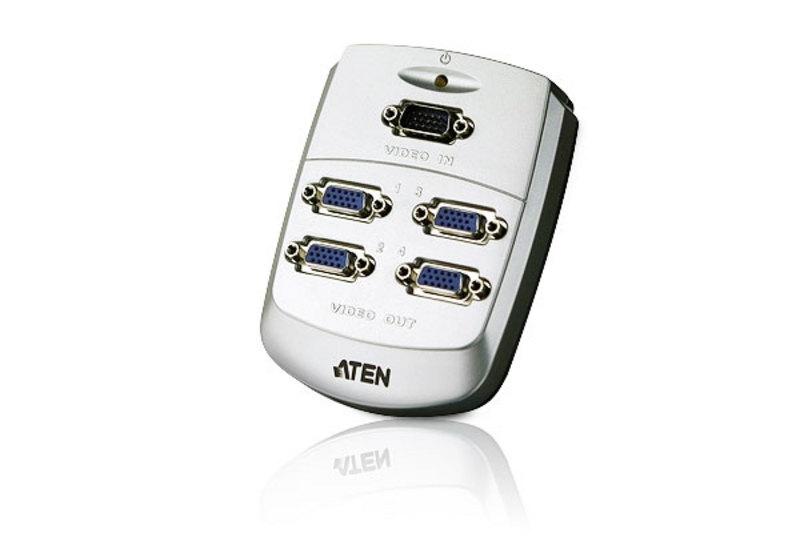

Aten VS84 4-way VGA splitter allows a single VGA video signal to be distributed to 4 output displays. The splitter supports up to 250MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920×1440. VS84 supports VGA, XVGA, SVGA, and UXGA as well as long distance transmission – up to 30m.
The VS84 Video Splitter duplicates the video signal from an input source (i.e. a computer) and routes it to up to 4 display devices (monitors, projectors, etc.). However, the VS84 goes beyond being merely duplicators, in that it also enhances the video signals over distances up to 30 meters.
Furthermore, the VS84 can be cascaded three levels to additional ATEN video splitters to support many numerous display devices and mounts inconspicuously on the wall or out of sight.
| Video Input | |
| Interface | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ώ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interface | 4 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| Video | |
| Max. Bandwidth | 250 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Max. Distance | Up to 30 m |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 9 VDC, 2.25W |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.15 kg |
| Dimensions (L x W x H) | 8.84 x 11.88 x 3.33 cm |
