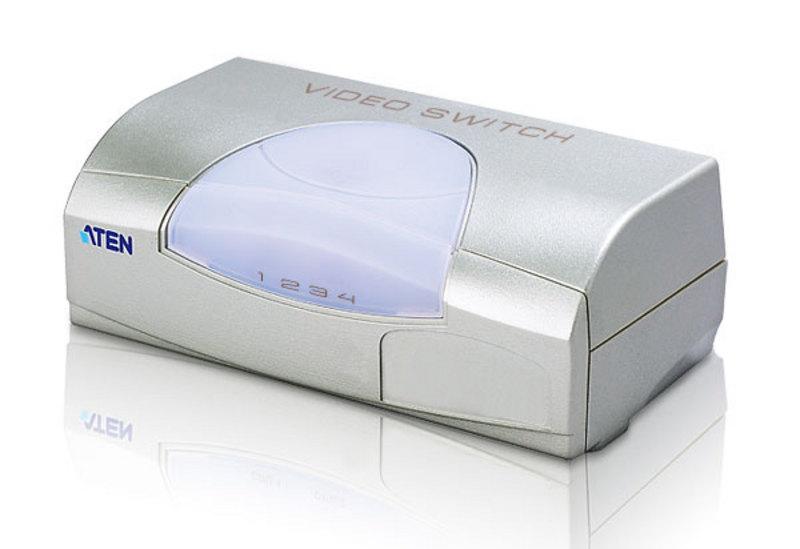

VS491 Aten 4-Port Video Switch

£99.00 inc VAT

Aten VS491 4-port VGA switch allows 4 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally. It features high resolution video – up to 1920 x 1440 and a long distance transmission – up to 10m, It is DDC, DDC2, DDC2B Compatible and Supports VGA, XGA. SVGA, UXGA and Multisync monitors.

Data Sheet

Manual

SKU: VS491 Categories: , , , , , Tags: , ,

Description

The VS491 is a video switch with 2 ports. It allows 4 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally.

Features

  • Displays the video output of four computers on a single monitor or projector.
  • Computer selection via pushbutton switch.
  • Electronic switching for greater reliability and durability.
  • Easy Installation – No Software Required.
  • Long distance transmission – up to 10m
  • High resolution video – up to 1920 x 1440.
  • DDC, DDC2, DDC2B Compatible.
  • Supports VGA, XGA. SVGA, UXGA and Multisync monitors.
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

Specifications

Video Input
Interface 4 x HDB-15 Female (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m

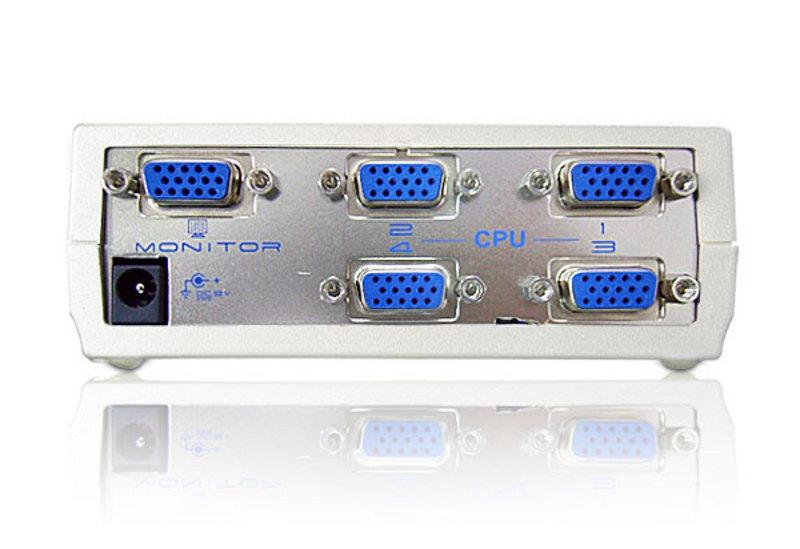

Video Output
Interface 1 x HDB-15 Female (Blue)
Impedance 75 Ώ
Max. Distance 10 m
Video
Max. Bandwidth 150 MHz
Max. Resolution Up to 1920 x 1440
Max. Distance Up to 10 m
Power
Connectors 1 x DC Jack
Consumption 9 VDC, 1.35W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Plastic / Metal
Weight 0.18 kg
Dimensions (L x W x H) 12.00 x 6.52 x 4.40 cm

Package Contents

  • 1x 4-Port Video Switch
  • 1x Power Adapter
