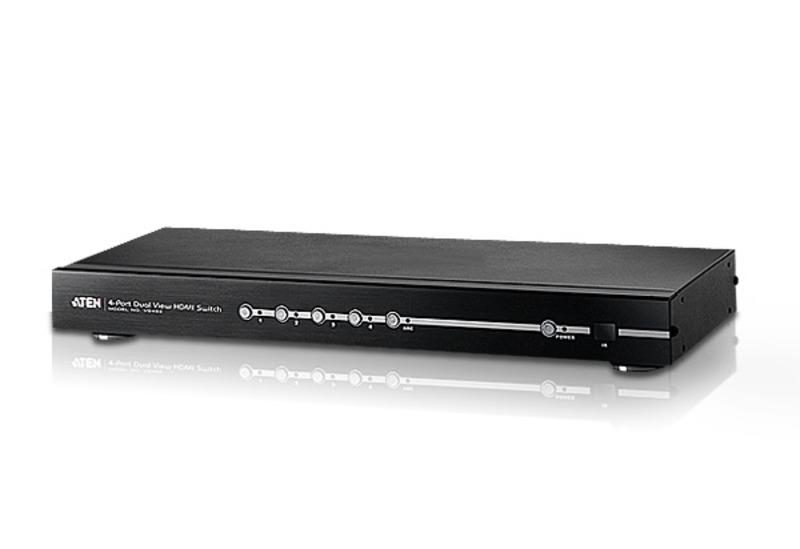

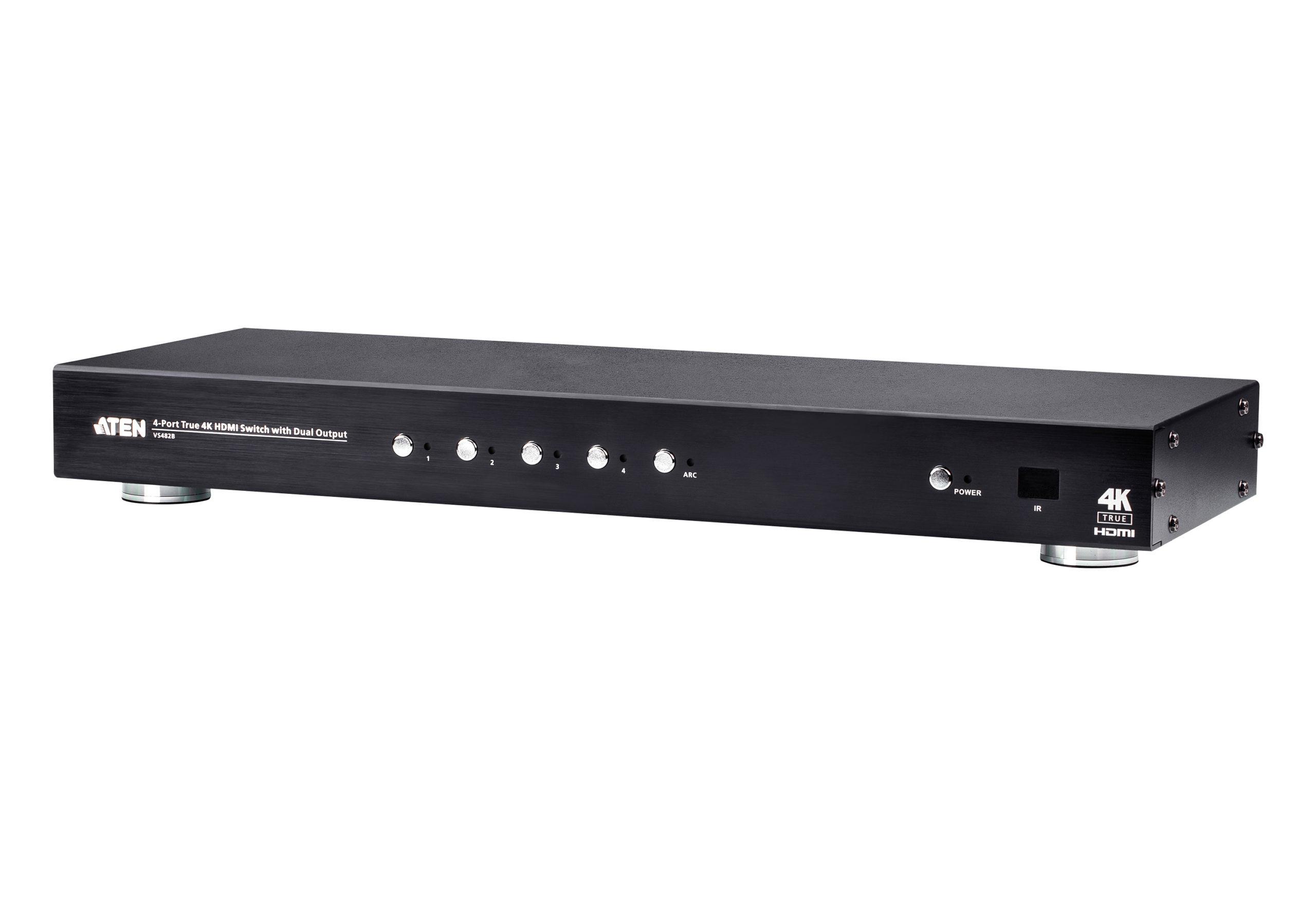

VS482B Aten 4-Port True 4K HDMI Switch with Dual View

£395.00 inc VAT

The Aten VS482B 4-port True 4K Dual View HDMI switch offers an easy and affordable way to add HDMI capabilities to your home theatre system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays. It features Audio Return Channel (ARC) where you can connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver, OSD menu for system configuration setting and information display, and EDID Expert technology to set up different configurations via different EDID mode. The VS482 is HDCP compatible and supports Dolby True HD and DTS HD Master Audio.

Data Sheet

Manual

Description

The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch’s Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.

Furthermore, the VS482B offers switching methods between HDMI sources by front panel pushbuttons, IR remote control and RS-232 commands, enabling users to effortlessly select desired input. Equipped with EDID Expert™, the VS482B benefits users with optimum EDID settings for smooth power-up and highest-quality display across different screens. Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.

  • Allows up to 4 HDMI A/V sources to be connected to 2 HDMI displays
  • Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); HDR supported
  • HDMI 2.0 (3D, Audio Return Channel, Deep Color); HDCP 2.2 compliant
  • Supports Auto Switch – the VS482B automatically switches to a newly plugged-in source
  • Audio Return Channel (ARC) function – connects an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
  • OSD for system configuration settings and information display
  • Switching between HDMI input sources via front panel pushbuttons, IR remote control and RS-232 commands
  • EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
  • Built-in bi-directional RS-232 serial control port for high-end system control
  • HDMI audio can be extracted to stereo audio and digital audio (optical/coaxial) outputs
  • Supports 5.1 channel audio output
  • Supports Consumer Electronic Control (CEC)
  • Rack mountable
LEDs
Input LED (Green) x 4 (HDMI-In)
Audio LED (Green) x 1 (ARC ON/OFF)
Power LED (Green/Orange) x 1 (Power ON/OFF)

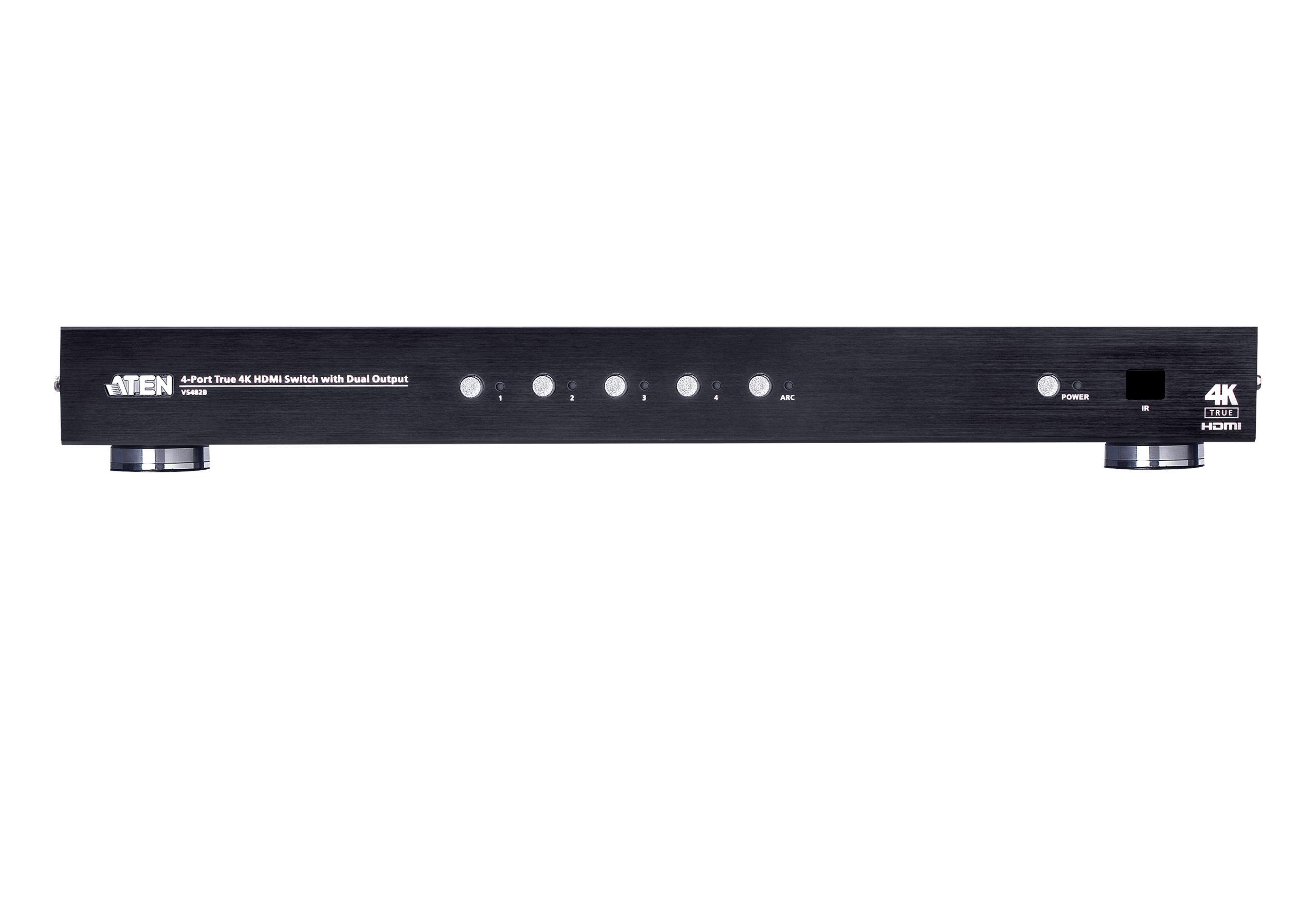

Switches
Video Input Port Selection Push button x 4 (HDMI-In)
Mode Selection Push button x 1 (ARC ON/OFF)
Power Push button x 1 (Power ON/OFF)
Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 5m (4096×2160@60Hz, 4:4:4)
Video Output
Interfaces 2 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 5m (4096×2160@60Hz, 4:4:4)
Video
Max. Data Rate 18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI 2.0 (3D, Audio Return Channel, Deep Color)
HDCP 2.2
Consumer Electronics Control (CEC)
Max. Resolution 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance Up to 5m (input / output)
Audio
Input 4 x HDMI Type A Female (Black)
Output Analog: 2 x RCA (Red / White)
Digital:
2 x HDMI Type A Female (Black);
1 x Toslink (Black);
1 x RCA (Orange)
Control
RS-232 Function: Port switching & FW upgrade
Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200, Data Bits: 8,
Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
1 x IR Receiver
EDID Settings EDID Mode: Default (4K@60Hz) / Port-1 / Remix

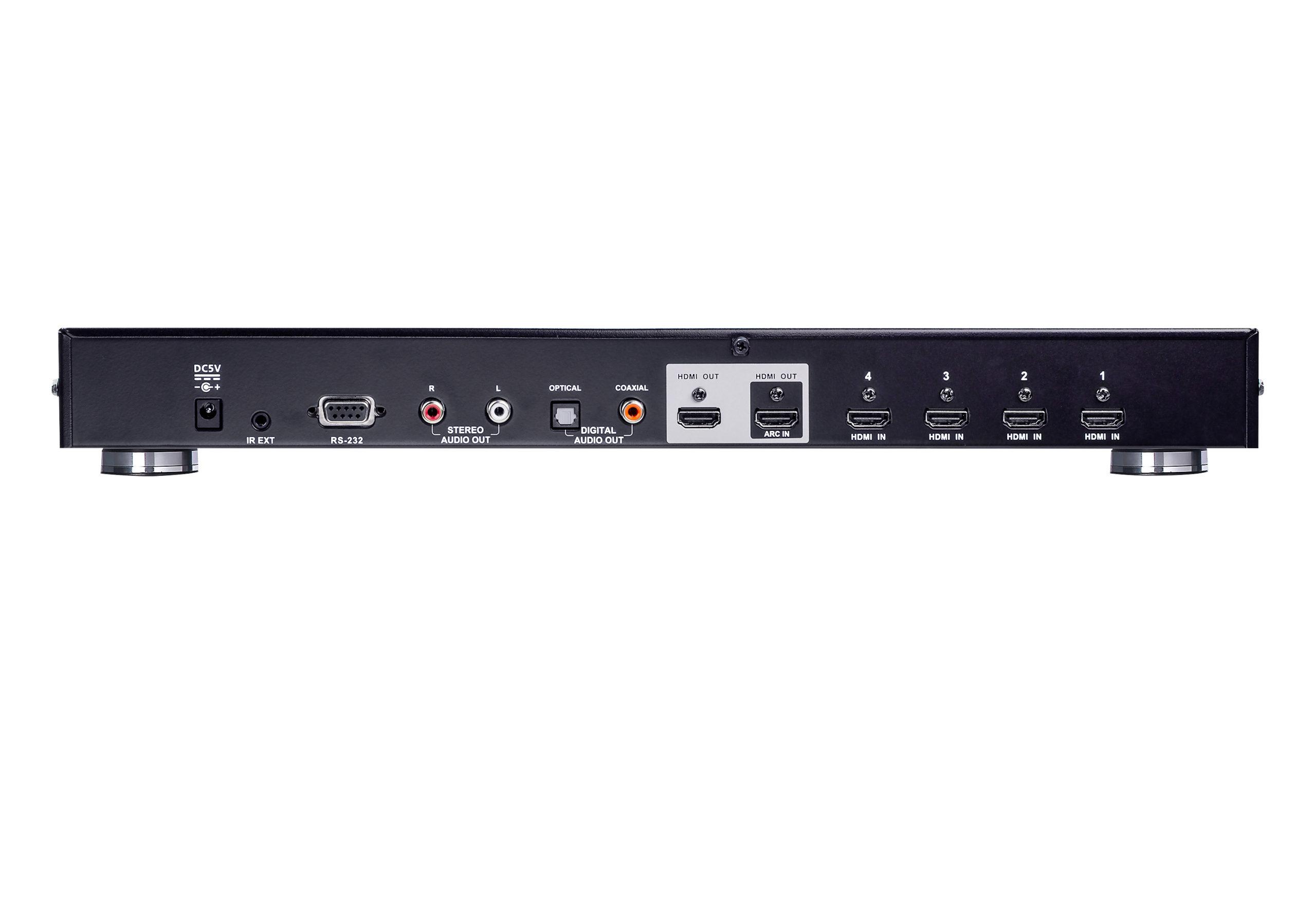

Connectors
Power 1 x DC Jack
Power Consumption DC5V:3.29W:15BTU
Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.16 kg ( 4.76 lb )
Dimensions (L x W x H) 43.72 x 15.88 x 4.40 cm
(17.21 x 6.25 x 1.73 in.)
Carton Lot 3 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1x VS482B 4-Port True 4K HDMI Switch with Dual Output
  • 1x Power Adapter
  • 1x IR Remote Control Unit
  • 1x Mounting Kit
  • 1x User Instructions
