VS381 Aten 3-Port HDMI Switch

£49.00 inc VAT

Aten VS381 3-port HDMI switch allows up to three HDMI A/V sources to be connected to one HDMI display where the user can toggle between A/V sources using remote control or front panel pushbuttons. It features superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920×1080); PC resolutions of VGA, SVGA, XGA, SXGA, and WUXGA (1920×1200) and supports Dolby True HD and DTS HD Master Audio.

Data Sheet

SKU: VS381 Categories: , , , , , Tags: , , ,

Description

The VS381 3-Port HDMI Switch allows you to quickly and easily connect 3 HDMI input sources to your HDMI display device. It allows convenient switching between digital devices such as DVD players, satellite receivers and digital camcorders.  VS381 allows you to select the desired input source via a remote control unit or pushbuttons located on the front of the switch.

Features

  • Allows up to three HDMI A/V sources to be connected to one HDMI display
  • Toggle between A/V sources using remote control or front panel pushbuttons
  • Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920×1080); PC resolutions of VGA, SVGA, XGA, SXGA, and WUXGA (1920×1200)
  • Supports Dolby True HD and DTS HD Master Audio
  • Plug-and-play – no software installation required
  • DDC Compatible
  • HDMI (3D, Deep Color)
  • HDCP compatible

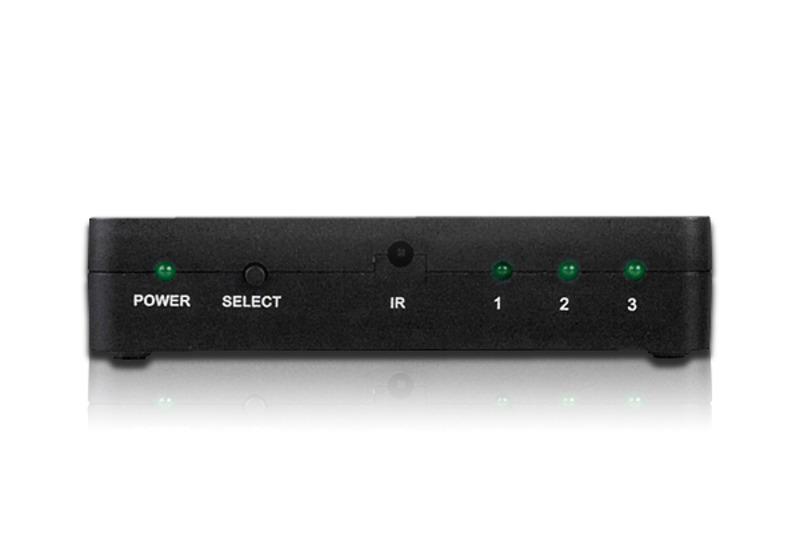

  • Front-Panel LED for port and power status
  • Easy and affordable way to add three HDMI inputs to your home theater system
  • No power adapter required

Specifications

Video Input
Interface 3 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 1.8 m
Video Output
Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)

HDCP Compatible
Max. Resolution Up to 1080p
Max. Distance Up to 15 m
Audio
Input 3 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Control
IR 1 x Mini Stereo Jack Female (Black)
Power
Connectors 1 x DC Jack
Consumption 5 VDC, 3W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.07 kg
Dimensions (L x W x H) 9.60 x 5.12 x 2.24 cm

Package Contents

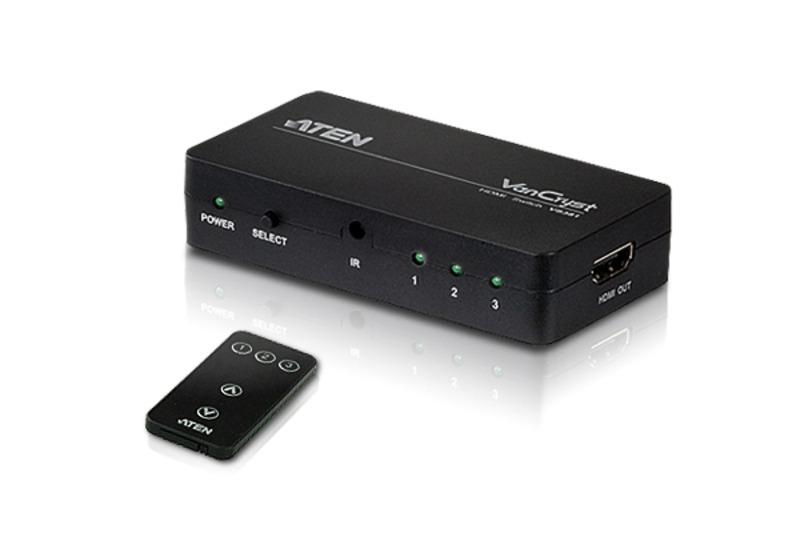

  • 1x VS381 3-Port HDMI Switch
  • 1x IR Remote Control
