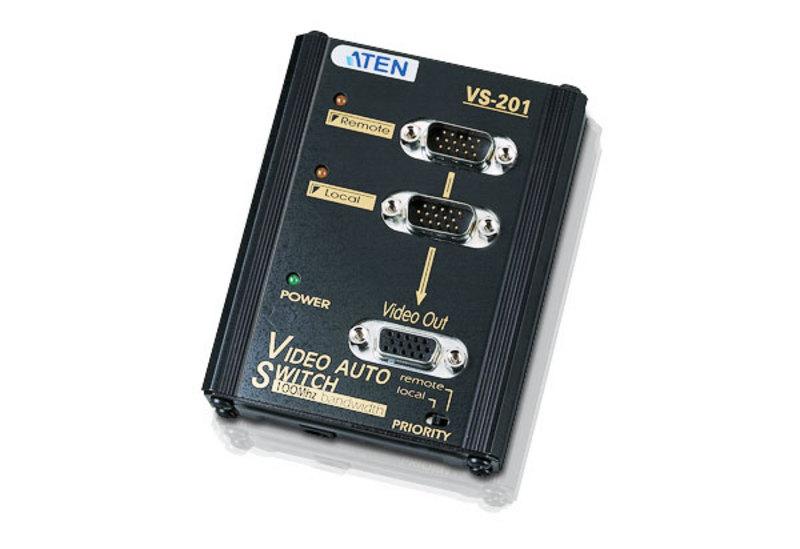

VS201 Aten 2-Port Video Switch

£65.00 inc VAT

Aten VS201 2-port VGA switch allows two computers to be connected to one display. Tthe VS201 boosts signals, allowing long distance transmission of up to 65 m (210 feet) with superior video quality – up to 1920 x 1440 and supports VGA, XGA. SVGA, UXGA and multisync monitors.

Data Sheet

Manual

Description

The VS201 Video Auto Switch is an automatic video switch that is ideal for monitors using analog signals. In addition, the VS201 boosts signals, allowing long distance transmission of up to 65 m (210 feet).

A slide switch sets the priority for the incoming video signals for display on the monitor, and the VS201 automatically selects the proper input signal for its output port. Both features make the VS201 an excellent choice for educational environments.

  • Displays the video output of two computers on a single monitor or projector
  • Automatic incoming signal selection (Auto)
  • Quick and easy switching via slide switch
  • Long-distance transmission – up to 65 m *
  • Superior video quality – up to 1920 x 1440
  • Supports VGA, XGA. SVGA, UXGA and multisync monitors* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Video Input
Interface 2 x HDB-15 Male (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output
Interface 1 x HDB-15 Female (Blue)
Impedance 75 Ώ
Max. Distance 30 m
Video
Max. Bandwidth 300 MHz
Max. Resolution Up to 1920 x 1440
Max. Distance Up to 30 m
Power
Connectors 1 x DC Jack
Consumption 5.3 VDC,0.32W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.20 kg
Dimensions (L x W x H) 10.36 x 7.90 x 2.79 cm
  • 1x 2-Port Video Switch
  • 1x Power Adapter
  • 1x User Instructions
