VS184A Aten 4-Port HDMI Splitter

£139.00 inc VAT

Aten VS184A 4-way HDMI splitter allows you to connect one HDMI source to  four HDMI displays at the same time. It is HDMI (3D, Deep Color, 4kx2k); HDCP Compatible, supports Dolby True HD and DTS HD Master Audio and a resolutions of up to Ultra HD 4kx2k and 1080p Full HD.

Data Sheet

SKU: VS184A Categories: , , , , , Tags: , , , , ,

Description

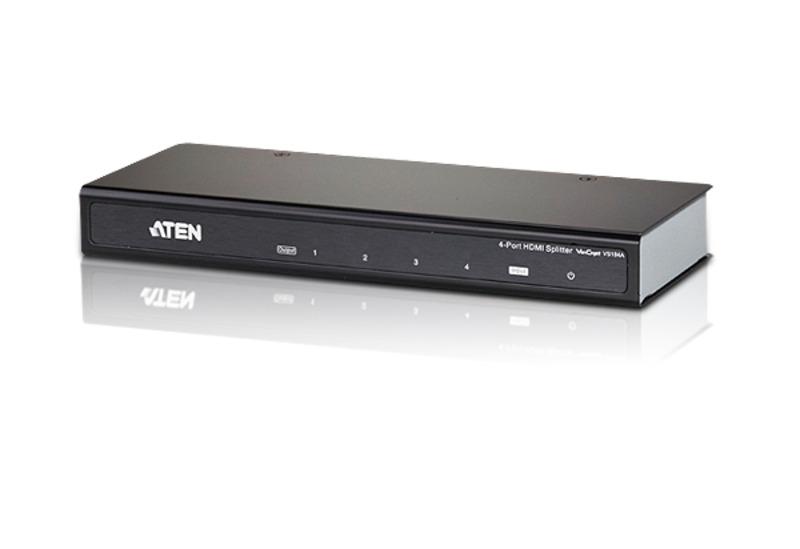

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Features

  • Connects one HDMI source to four HDMI displays at the same time
  • HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Supports Dolby True HD and DTS HD Master Audio
  • Long distance transmission – up to 15 m (24 AWG)
  • Supports up to 340MHz bandwidth for high performance video
  • Plug-and-play – no software installation required

Specifications

Video Input

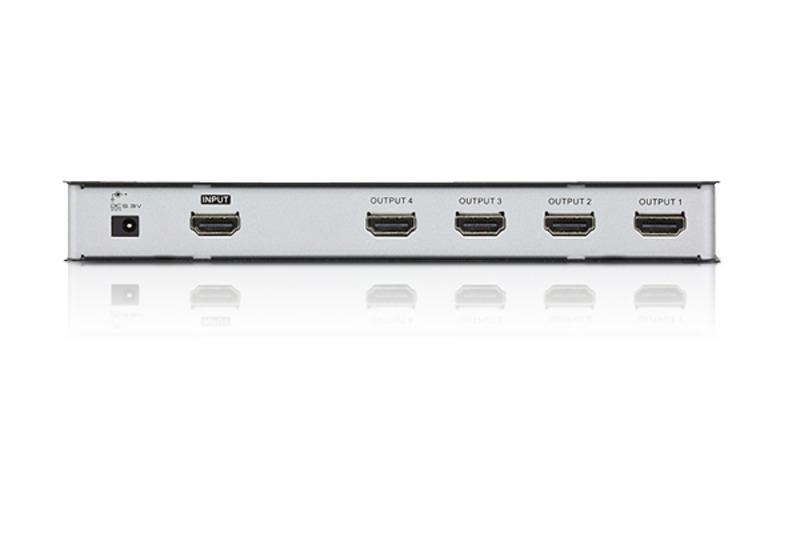

Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 1.8 m
Video Output
Interface 4 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K);

HDCP Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance Up to 15 m
Audio
Input 1 x HDMI Type A Female (Black)
Output 4 x HDMI Type A Female (Black)
Power
Connectors 1 x DC Jack
Consumption 5.3 VDC, 4.6W
Environmental
Operating Temperature 0-50 °C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.47 kg
Dimensions (L x W x H) 20.00 x 8.00 x 2.50 cm

Package Contents

  • 1x VS184A 4-Port HDMI Splitter
  • 1x Power Adapter
  • 1x HDMI Cable
  • 1x User Instructions
