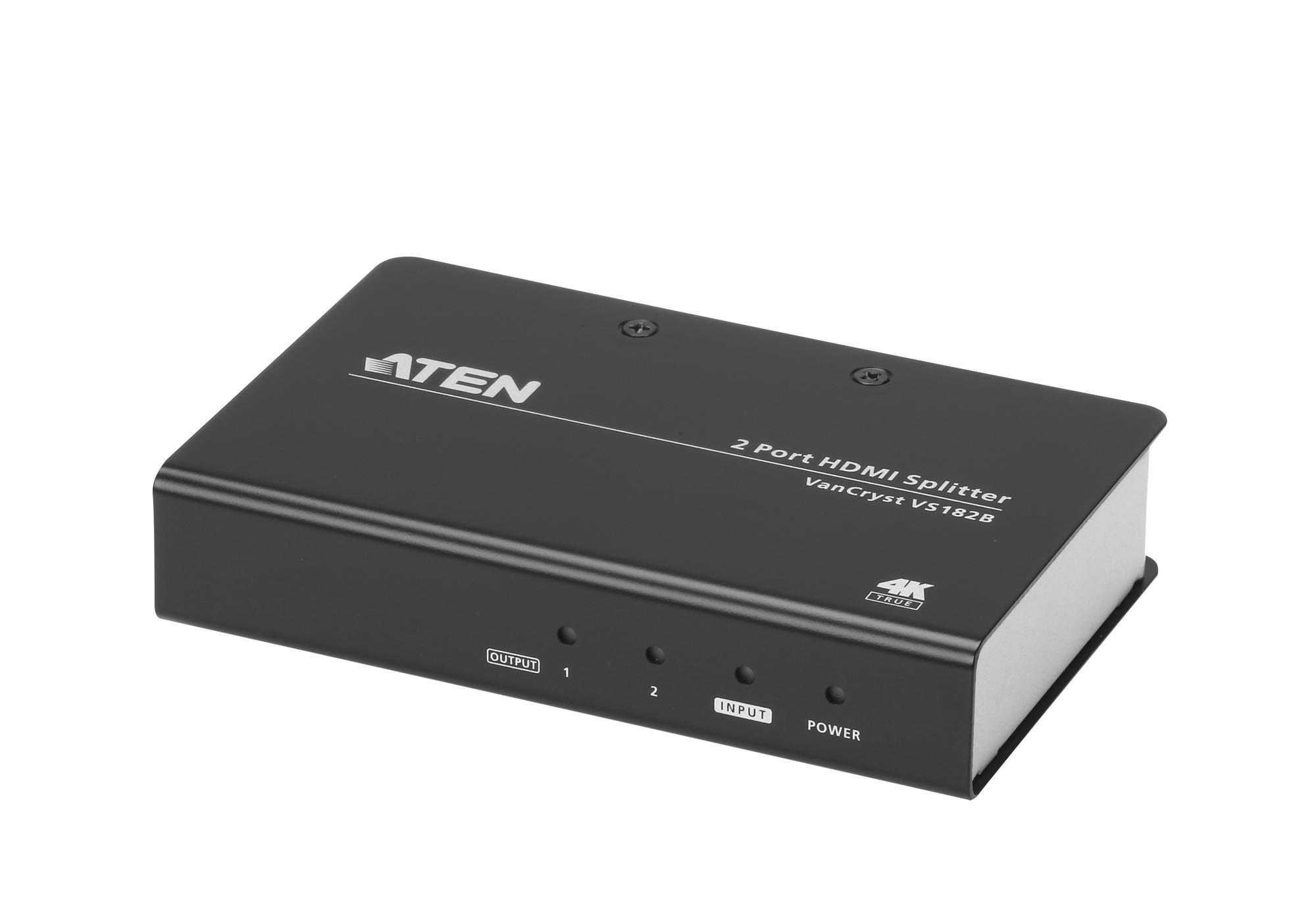

VS182B Aten 2-Port True 4K HDMI Splitter

£142.80 inc VAT

Aten VS182B 2-way True 4K HDMI splitter allows the user to duplicate the same source on two displays and supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) with EDID Expert™ – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto.

Data Sheet

SKU: VS182B Categories: , , , , , Tags: , , , , ,

Description

The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.

The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Features

  • Connects one HDMI source to two HDMI displays at the same time
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
  • Supports HDR
  • Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
  • Long distance transmission- up to 15 m(1920×1200) / 1.8m (True 4K)*
  • Max pixel clock rate up to 600 MHz
  • Max data rate up to 18 Gbps (6 Gbps per lane)
  • LED indication of power status and source devices

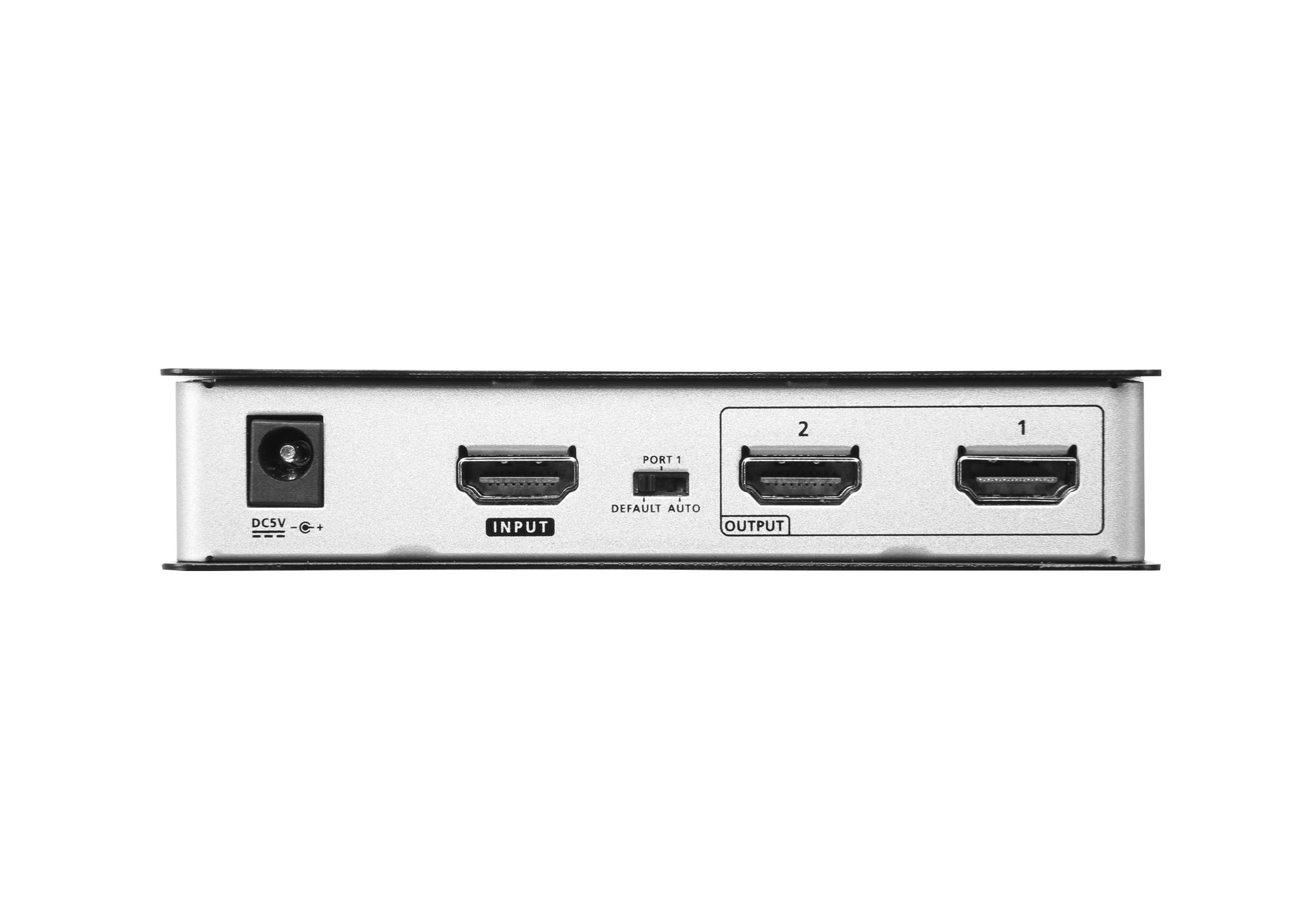

  • EDID Expert™  – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
  • Plug-and-play  – No software installation required* Note: Compatible with ATEN 2L-7D02H

Specifications

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 1.8m / 4K@60Hz (4:4:4)
Video Output
Interfaces 2 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 1.8m / 4K@60Hz (4:4:4)
15m / 1920 x 1200
Video
Max. Data Rate 18 Gbps( 6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI (3D, Deep Color, 4K);
HDCP Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Audio
Input 1 x HDMI Type A Female (Black)
Output 2 x HDMI Type A Female (Black)
Power
Connectors 1 x DC Jack
Consumption 5 VDC, 4.25W
Environmental
Operating Temperature 0-40 °C
Storage Temperature -20 – 60 °C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm
(4.92 x 3.15 x 0.98 in.)
Carton Lot 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

  • 1 x VS182B 2-Port True 4K HDMI Splitter
  • 1 x Power adapter
  • 1 x HDMI cable
  • 1 x User Instructions
