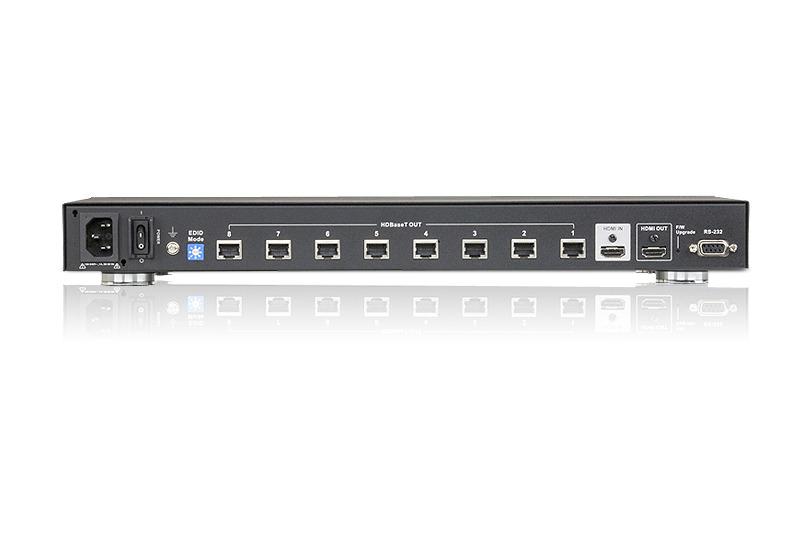

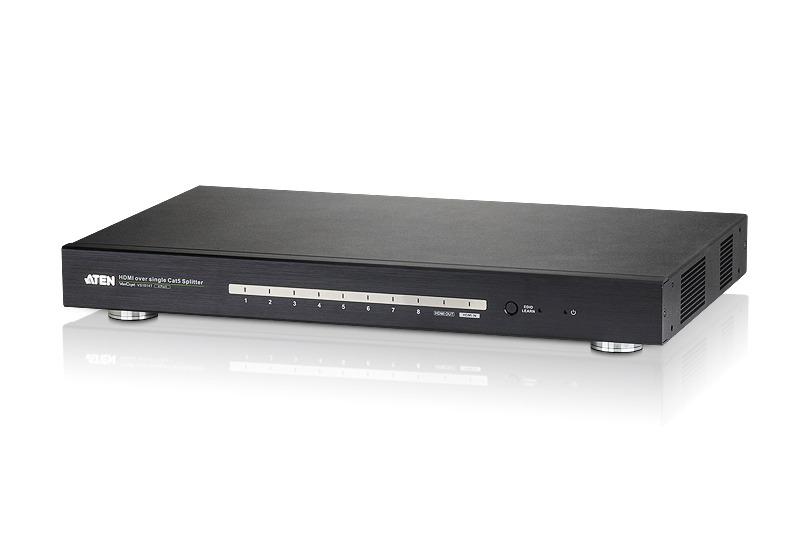

VS1808T Aten 8-Port HDMI Over Cat 5 Splitter

£579.00 inc VAT

Aten VS1808T 8-port HDMI over CAT 5 splitter  designed to connect one source to 8 displays over a long distance up to 60m and supports superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080). It is HDCP compatible, supports Dolby True HD and DTS HD Master Audio and HDMI (3D, Deep Colour). The Splitter offers local HDMI output.

Data Sheet

Manual

SKU: VS1808T Categories: , , , , , , , Tags: , , , , , , , ,

Description

The VS1808T HDMI Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers *, the VS1808T HDMI Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 60m away from the source.
* Compatible Receiver Units:
VB802 HDMI Over Cat 5 Repeater
VE800R HDMI Receiver

The VS1808T solution is perfect for a wide range of applications:
•In-store or tradeshow digital signage
•Broadcasting information in public (news, airline or train arrival/departure information)
•Sporting events
•Theater and lecture rooms
•Company training facilities

Features

  • One HDMI input to 8 HDMI outputs via Cat 5e cables
  • Extends displays up to 60 m
  • Supports HDMI (3D, Deep color)
  • Supports Dolby True HD and DTS HD Master Audio
  • Offers local HDMI output
  • HDCP compatible
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • Features RS-232 serial port for command controls *
  • Cascadable to three levels
  • Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
  • EDID mode selection
  • Rack-mountableNote: The VS1808T AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Specifications

Video Input
Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 1.8 m
Video Output
Interface 1 x HDMI Type A Female (Black) – Local Output

8 x RJ-45 Female
Impedance 100 Ώ
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 1080p (Depends on connected receiver)
Max. Distance Up to 60 m (Depends on connected receiver)
Audio
Input 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
EDID Settings EDID Mode: Default / Port 1 / Learn
Power
Connectors 1 x DC Jack (Black)
Consumption 5.3 VDC, 13W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.15 kg
Dimensions (L x W x H) 43.72 x 15.78 x 4.40 cm

Package Contents

  • 1x VS1808T 8-Port HDMI Over Cat 5 Splitter
  • 1x Power Adapter
  • 1x Foot Pad Set (4 pcs)
  • 1x Mounting Kit
  • 1x User Instructions
