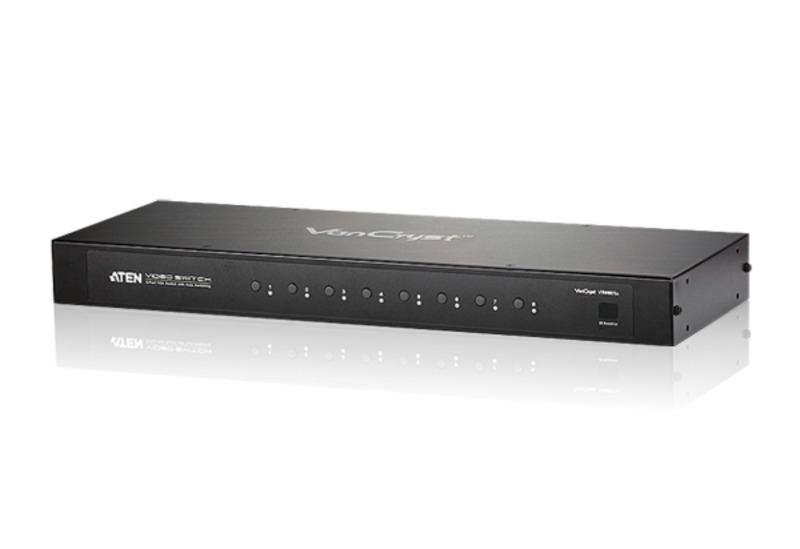

VS0801A Aten 8-Port VGA Switch with Auto Switching

£219.00 inc VAT

Aten VS0801A 8 port VGA switch with audio allows 8 audio/video sources to a single display and quickly switch between the devices. It supports up to 300MHz bandwidth for optimal video quality with superior video quality – up to 2048 x 1536 @ 60Hz and a long distance transission up 65m. It features Aten video Dyna Sync™ – Exclusive ATEN technology eliminates bootup display problem and optimizes resolution when switching between ports and supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors.

Data Sheet

Manual



SKU: VS0801A Categories: , , , , , Tags: , ,

Description

The VS0801A 8-Port VGA Switch with Auto Switching,connecting eight audio/video source notebooks to a single monitor or projector with full audio will enable you to quickly switch between the devices for any presentation occasions where multiple audio/video playing are simultaneously required, such as meeting room, media centers, class rooms etc.

VS0801A built-in bi-directional RS-232 serial port for highend system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0801A to be controlled by secondary systems with advanced functions such as: Power on Detection,Auto Switching and Pushbutton Lock. The IR Remote control convenient front panel pushbuttons, and new port switching VGA cable allow you to quickly and easily toggle between VGA/ Audio sources, while the front panel LEDs indicate the source device at a glance.

Features

  • Display the video output of up to eight computers on a single VGA display
  • Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232 commands, IR remote control, or Port Switching cable*
  • Supports stereo audio
  • Built-in bi-directional RS-232 serial port for high-end system control
  • RS-232 Control:
    •Power On Detection – if one VGA source is powered off, the VS0801A will automatically switch to the next powered-on source
    •Auto Switching – sets the priority for auto switching to a connected port
    •Pushbutton Lock – locks use of the front panel pushbuttons
  • Supports up to 300MHz bandwidth for optimal video quality
  • Superior video quality – up to 2048 x 1536 @ 60Hz
  • Long distance transmission – up to 65 m
  • Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
  • Video Dyna Sync™ – Exclusive ATEN technology eliminates bootup display problem and optimizes resolution when switching between ports
  • Supports Dynamic DDC to monitor and receive updated EDID information from displays* Note: The Port Switching VGA cable does not come with the package and must be purchased separately

Specifications

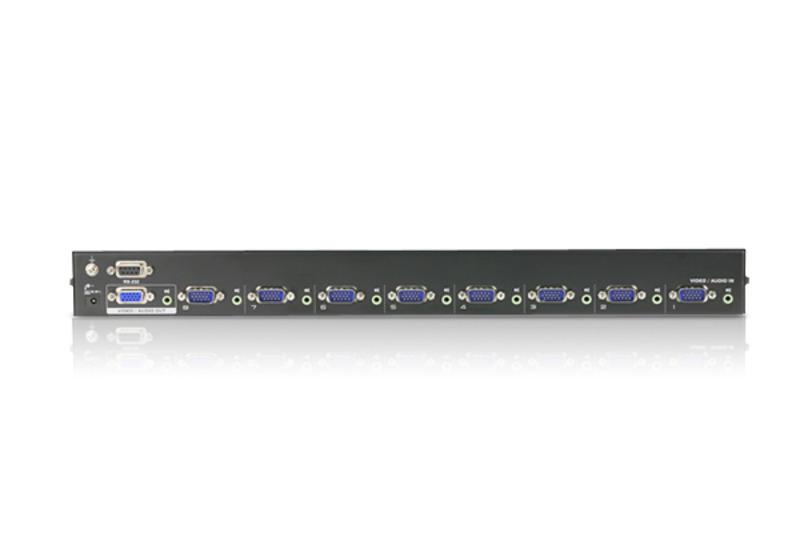

Video Input
Interface 8 x HDB-15 Male (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output
Interface 1 x HDB-15 Female (Blue)
Impedance 75 Ώ
Video
Max. Bandwidth 300 MHz
Max. Resolution Up to 1920 x 1440
Max. Distance Up to 30 m
Audio
Input 8 x Mini Stereo Jack Female (Green)
Output 1 x Mini Stereo Jack Female (Green)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Power
Connectors 1 x DC Jack
Consumption 5.3 VDC,1.01W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.10 kg
Dimensions (L x W x H) 43.70 x 15.98 x 4.40 cm

Package Contents

  • 1x VS0801A 8-Port VGA Switch with Auto Switching
  • 1x IR Remote Control
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions
