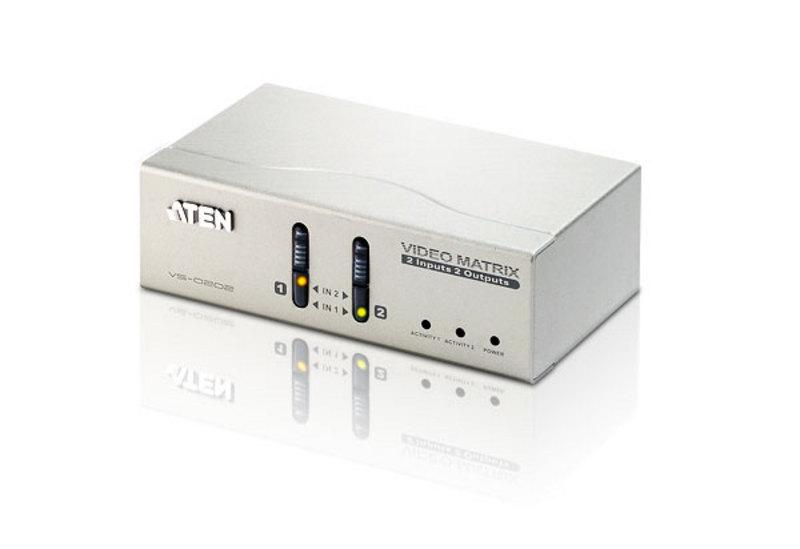

VS0202 Aten 2-Port VGA Matrix Switch (2 Inputs 2 Outputs)

£109.00 inc VAT

Aten VS0202 2-way VGA matrix switch allows 2 video and audio sources to be shown on two displays, projectors and speakers. With up to 200 MHz Video Bandwidth, it duplicates and enhances video signals up to 30m and it is cascadable with Aten’s VGA splitters to support hundreds of video displays.

Data Sheet

Manual

SKU: VS0202 Categories: , , , , , , , , , , , Tags: , , , ,

Description

The VS0202 Video Matrix Switch allows video and audio from 2 computers to be routed to 2 monitors, projectors and speakers.The VS0202 is ideal for presentations and applications where information from multiple computers is being delivered to multiple destinations.

Features

VS0202

  • Each of the 2 video outs can toggle between Source 1 and Source 2 using front panel pushbuttons.
  • Audio enabled
  • Duplicate and enhance video signals to up to 30 m (max.) *
  • Expandable: Cascade to ATEN’s video splitters to support hundreds of video displays
  • With up to 200 MHz Video Bandwidth
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality

Specifications

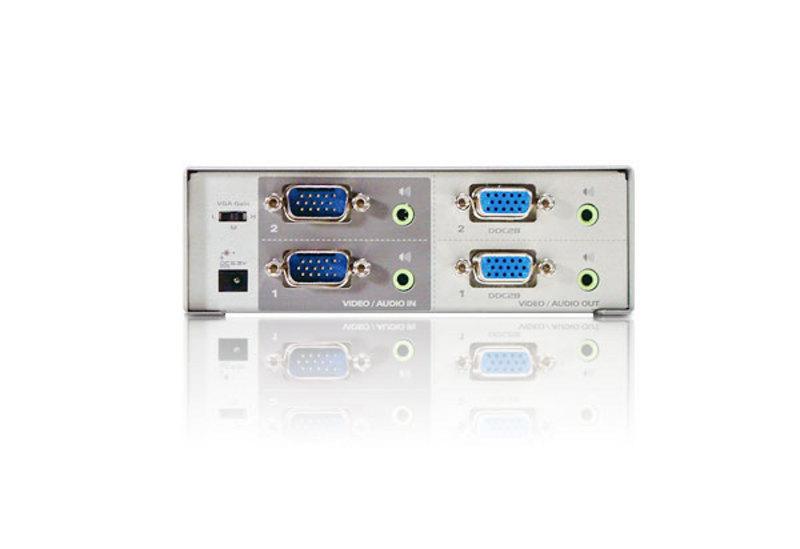

Video Input
Interface 2 x HDB-15 Male (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output
Interface 2 x HDB-15 Female (Blue)
Impedance 75 Ώ
Video
Max. Bandwidth 200 MHz
Max. Resolution Up to 1920 x 1200
Max. Distance Up to 30 m
Audio
Input 2 x Mini Stereo Jack Female (Green)
Output 2 x Mini Stereo Jack Female (Green)
Power
Connectors 1 x DC Jack
Consumption 5.3 VDC, 2.39W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.47 kg
Dimensions (L x W x H) 13.00 x 7.61 x 4.40 cm

Package Contents

  • 1 x VS0202 2-Port Video Matrix Switch
  • 1x VGA/Audio Cable (1.8m)
  • 1x Power Adapter
  • 1x User Instructions
