£119.00 inc VAT

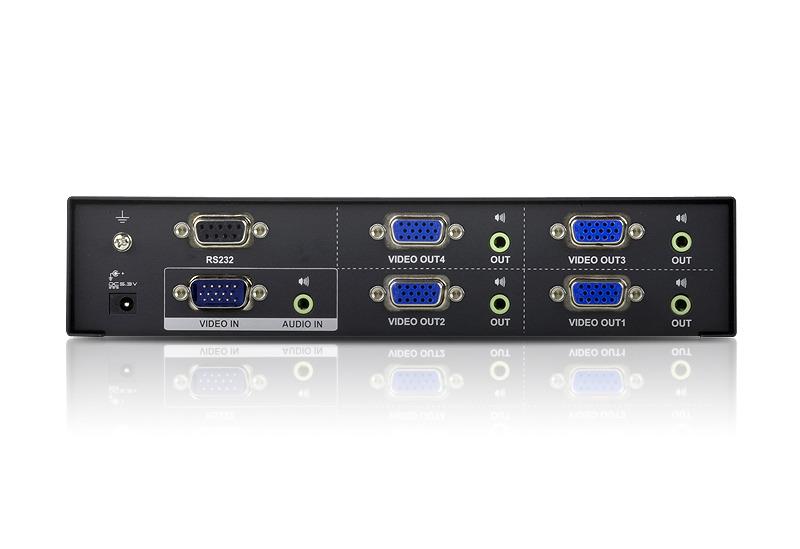

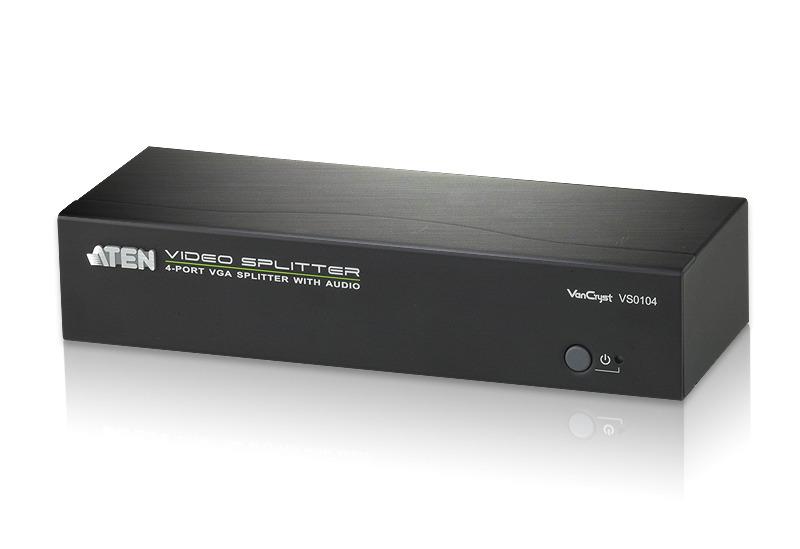

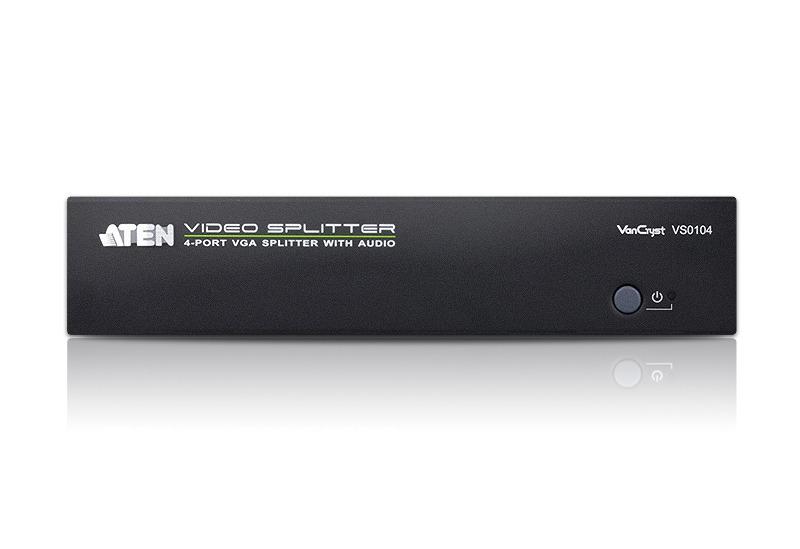

Aten VS0104 4-port VGA splitter with audio allows a single VGA video signal to be distributed to 4 output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920×1440. It features EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display. The splitter supports VGA, SVGA, UXGA, WUXGA, and multisync.
The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to four output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920×1440.
Furthermore, for complete systems integration, serial control is standard through the VS0104 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.
The VS0104 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 8 video displays while sustaining the highest quality possible.
| Video Input | |
| Interface | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ώ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interface | 4 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| Video | |
| Max. Bandwidth | 450 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Max. Distance | Up to 30 m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female (Green) |
| Output | 4 x Mini Stereo Jack Female (Green) |
| Control | |
| RS-232 | 1 x DB-9 Female (Black) |
| EDID Settings | EDID Mode: Port 1 / Auto / Default |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3 VDC, 1.2W |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.68 kg |
| Dimensions (L x W x H) | 20.00 x 7.61 x 4.40 cm |
