VP1420 4×2 4K Presentation Matrix Switch

£699.00 inc VAT

The Aten VP1420 4×2 True 4K Presentation Matrix switch is an Analog/Digital AV Matrix Switch  which allows you to  switch among 3 HDMI and 1 VGA inputs to 2 HDMI outputs and support of audio embedding/de-embedding. It features multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, Contact Closure, and web-based GUI through Ethernet. The VP1420 offers superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI); HDR support and a Scaler  that supports video upscaling to 4K for display A and downscaling to 1080p for display B.  NEW

Data Sheet

Manual

SKU: VP1420 Categories: , , , , , , , , , , , , , , , , , , Tag:

Description

ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, audio processor, and analog-to-digital converter functions into one compact device. With four analog/digital inputs to two HDMI outputs, it is designed to boost the impact of any professional presentation in small- to medium-size meeting rooms.

True 4K, HDR Visual Clarity

Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) with HDR to deliver vivid content in every presentation.

Smooth AV Switching Scaled to Perfection

Connect up to 4 sources (3 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.

Flexible Audio Embedding / De-Embedding

Supports stereo audio embedding and HDMI audio de-embedding to different audio outputs to ease adaptation to your preferred audio setup.

Versatile Control, Streamlined Operations

Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.

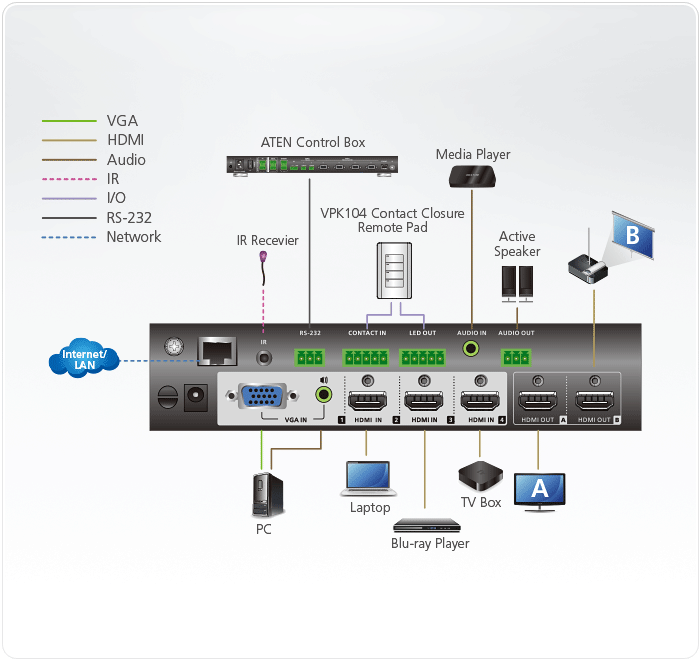

The ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix switch, True 4K scaler, audio processor, and analog-to-digital converter functions into one compact device that easily mounts under a table or in a rack. With four analog/digital inputs to two HDMI True 4K outputs, it is designed to boost the efficiency and impact of professional presentations.

With streamlined control from front-panel pushbuttons, IR remote controller, RS-232, and web-based GUI via Ethernet, the VP1420 reduces not only system device count, but also lowers operation complexity. It is suitable for all meeting space and education environments, such as huddle rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition galleries or hotels.



  • Analog/Digital AV Matrix Switching
    • Supports multi-format 4 inputs – 3 HDMI and 1 VGA inputs
    • 2 HDMI outputs
    • Audio embedding – stereo audio can be embedded into HDMI output or separated to stereo line out
    • Audio de-embedding – HDMI audio can be extracted to stereo line out
    • Auto switching – automatically detects and switches to a new source as soon as it is connected



  • High-definition Video with Optimum Output
    • Superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI)
    • Supports 4K HDR
    • Scaler – supports video upscaling to 4K for display A and downscaling to 1080p for display B
    • EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
    • HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant



  • Versatile, Streamlined Operation
    • Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
    • Supports stand-by mode for power saving and fast waking up
    • Consumer Electronics Control (CEC) support
    • Built-in Contact in and LED out for keypad control using VPK104 Contact Closure Remote Pad

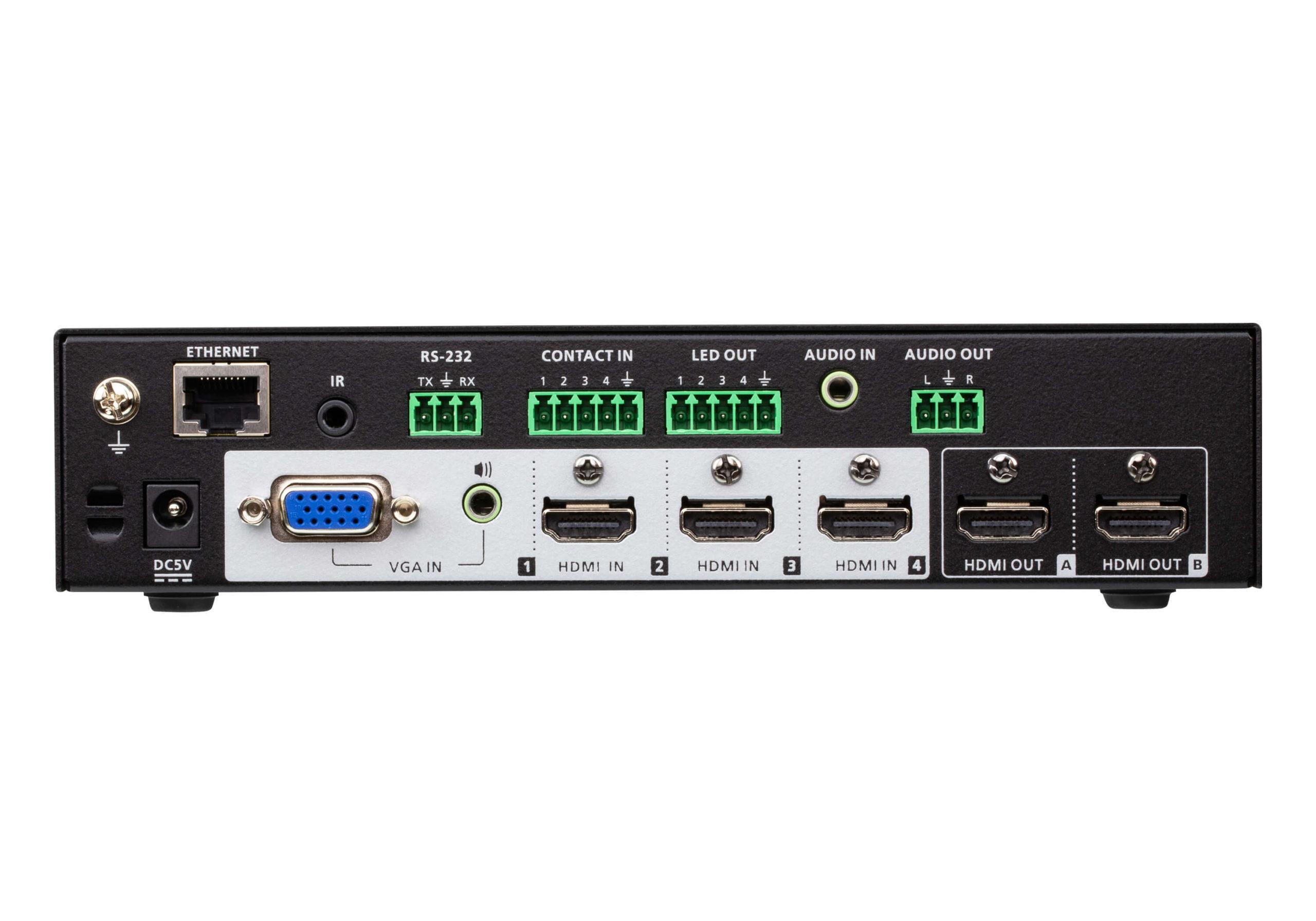

Video Input
Interfaces 3 x HDMI Type A female (Black)
1 x VGA (HDB-15) Female (Blue)
Max. Distance HDMI: 4K@60Hz (4:4:4) at 3m; 4K@30Hz at 10m; 1080p@60Hz at 15m
VGA: 1920×1200@60Hz at 15m
Video Output
Interfaces 2 x HDMI Type A female (Black)
Max. Distance HDMI: 4K@60Hz (4:4:4) at 3m; 4K@30Hz at 10m; 1080p@60Hz at 15m
Video
Max. Resolution HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
VGA: Up to 1920×1200@60Hz
Compliance HDMI 2.0 (3D, Deep Color, 4K); 4K HDR
HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Audio
Input Stereo Audio (VGA): 1 x mini stereo Jack female (Green)
Stereo Audio (HDMI): 1 x mini stereo Jack female (Green)
Output Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole
Control
RS-232 1 x Captive Screw Connector, 3-pole
IR 1 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female (Silver)
Contact In 1 x Captive Screw Connector, 5-pole
LED Out 1 x Captive Screw Connector, 5-pole
LED out power: +5 VDC, 0.2 A
Switches

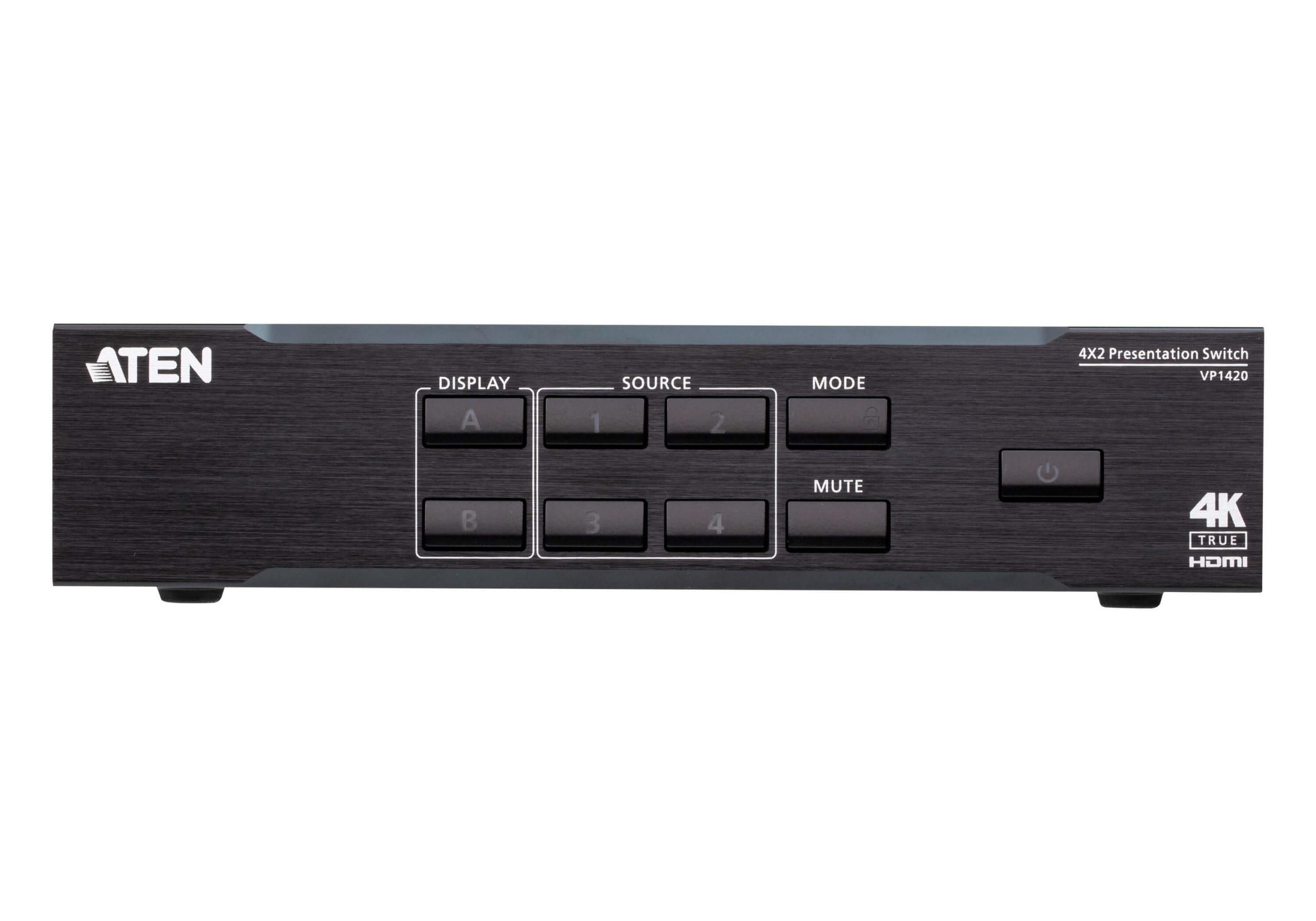

Power 1 x Pushbutton (LED: Green / Orange)
Video Input Port Selection 4 x Pushbutton (LED: Green)
Video Output Port Selection 2 x Pushbutton (LED: Orange)
Selection Mute: 1 x Pushbutton
Mode / Unlock: 1 x Pushbutton
EDID Settings EDID Mode: ATEN Default / Display A / Remix
Connectors
Power 1 x DC Jack (Black)
Power Consumption DC5V:7.21W:38BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 1.09 kg ( 2.4 lb )
Dimensions (L x W x H) 20.00 x 16.05 x 4.40 cm
(7.87 x 6.32 x 1.73 in.)
Carton Lot 3 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1x VP1420 4 x 2 True 4K Presentation Matrix Switch
  • 1x IR Receiver
  • 1x IR Remote Control
  • 2x 3-pole Terminal Blocks
  • 2x 5-pole Terminal Blocks
  • 1x Power Adaptor
  • 1x User Instructions
