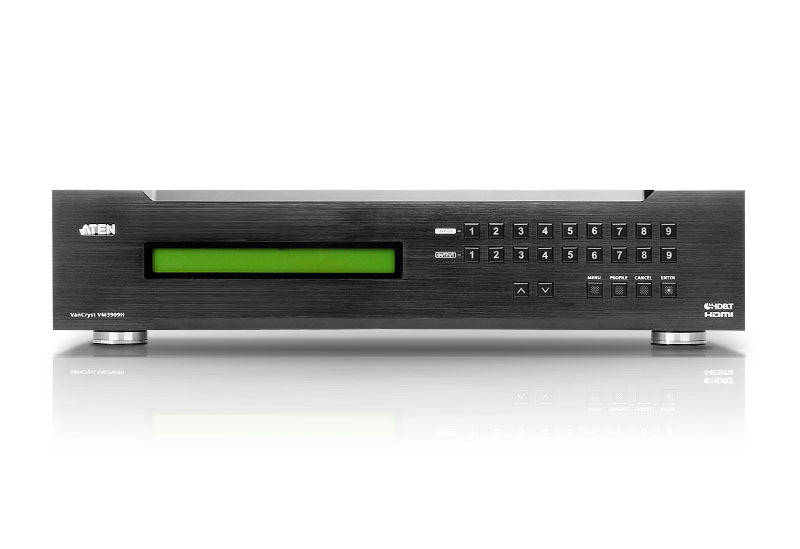

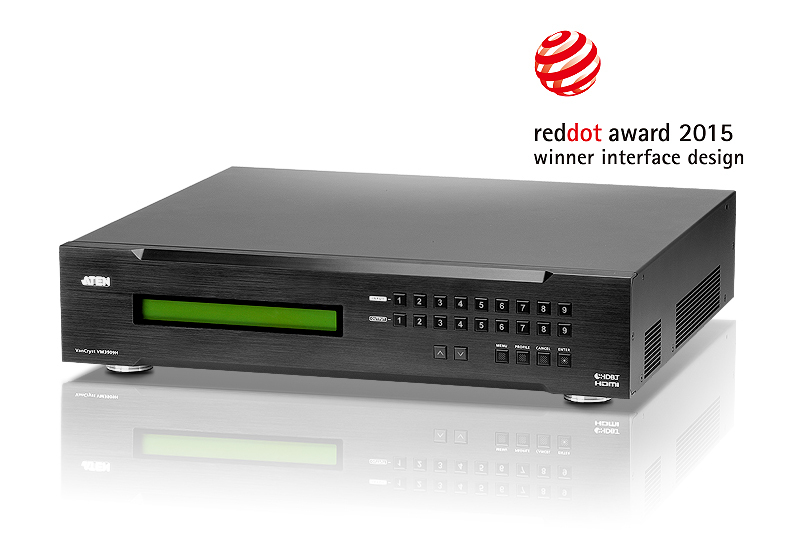

VM3909H Aten 9×9 HDMI HDBaseT Lite Matrix Switch

The Aten VM3909H HDMI HDBaseT Lite Matrix switch supports 9 HDMI inputs and mirrored 9 HDMI and HDBaseT outputs,  HDBaseT Connectivity, HDBaseT Anti-jamming, Seamless Switch & Video Wall Technology, and features Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections.

Data Sheet

Manual

SKU: VM3909H Categories: , , , , , , , , Tags: , , , , , , , , , ,

Description

With the rapid development of HDBaseT technology, ATEN has released the new VM3909H HDMI HDBaseT-Lite Matrix Switch. The switch extends uncompressed 4K / Full HD digital video, audio, IR and power via HDBaseT technology through a single Cat 6a cable up to 40/70 meters.
When the VM3909H is combined with VE805R receivers, it supports both ATEN Seamless Switch™ technology and Video Wall functionality. ATEN’s exclusive Seamless Switch™ technology employs an FPGA graphics processor to ensure continuous video streaming, real-time control and stable signal transmission across all sources. The Video Wall functionality allows you to create 18 video wall profiles for custom screen layouts through an easy-to-use web interface. The Power over HDBaseT (POH) feature provides an ingenious way to power the VE802R receivers through the Cat 5e cable without the need of using an additional power supply.

  • Supports 9 HDMI inputs and mirrored 9 HDMI and HDBaseT outputs
  • HDBaseT Connectivity – connects HDMI displays over a long distance via one Cat 5e/6/6a cable
  • HDBaseT Anti-jamming – resists signal interference during high-quality video transmission
  • Power over HDBaseT (POH) – supplies power over a long distance from the switch to a receiver over a single Cat 5e/6/6a cable* / **
  • Seamless Switch™ Technology – ATEN FPGA engine unifies video formats to provide continuous video streams, realtime switching and stable signal transmissions*
  • Video Wall – allows you to create custom video wall layouts via intuitive web GUI*
  • EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
  • Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
  • Bi-directional IR channel ports support full frequency IR signals from 30 KHz to 60 KHz (the IR receiver cable included with the package only supports 30 KHz to 56 KHz)
  • Supports ATEN’s LockPro™ HDMI cable lock for securing HDMI cables to the device
  • Firmware Upgradeable
  • Rack Mountable (VM3909H: 2U Design)Note:
    * The Seamless Switch™, Video Wall and POH features are only available when used the compatible receiver.
    ** The VM3909H can provide up to 15.4 W @ 54 VDC of power per port and 75W of total power ; please ensure that the power consumption of the devices connected to the VM3909H does not exceed this limit.

Video Input Interface 9 x HDMI Type A Female (Black)
Impedance 100Ώ
Max. Distance 1.8 m

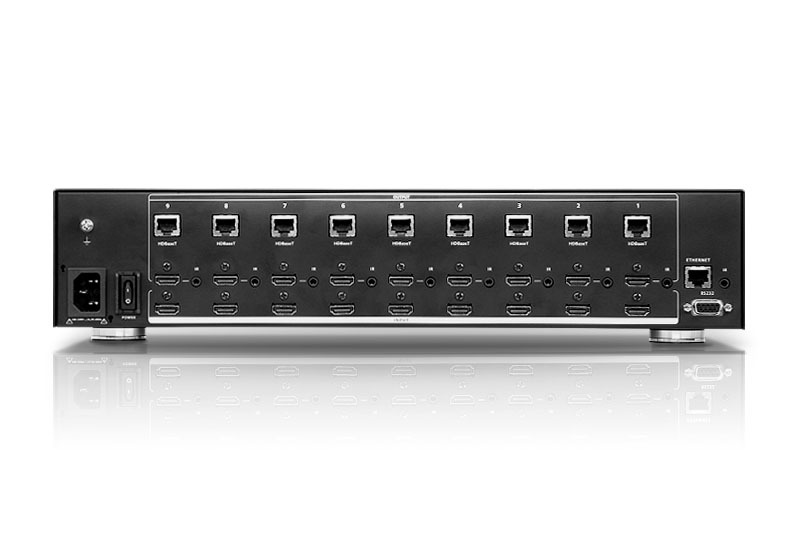

Video Output Interface 9 x HDMI Type A Female (Black);
4 x RJ-45 Female
Impedance 100Ώ
Max. Distance HDMI: up to 15 m
HDBaseT: 4K up to 35 m (Cat 5e/6) / 40 m (Cat 6a);
1080p up to 60 m (Cat 5e/6) / 70 m (Cat 6a)
Video Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K); HDCP 1.4 Compatible
Consumer Electronic Control (CEC)
HDBaseT Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance Up to 70 m*
Control RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bit: 1,
Parity: No, Flow Control: No
IR Channel 9 x Mini Stereo Jack Female (Black);
30~60 KHz full range transmissio
Ethernet 1 x RJ-45 Female (Black)
EDID Settings EDID Mode: Default / Port1 / Remix / Customized
(EDID Wizard support)
Power Connector 1 x 3-prong AC Socket
I/P Rating 100-240 VAC; 50-60 Hz; 1.0A
Consumption 110 VAC, 134.4 W
Environment Operating
Temperature		 0-50°C
Storage
Temperature		 -20°C – 60°C
Humidity 0% – 80% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 7.33 kg
Dimensions
(L x W x H)		 43.24 x 38.23 x 8.80 cm



* Note::
* Cat 6a Ethernet cable is required to extend the distance up to 70 meters.

  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
  • 1x VM3909H HDMI HDBaseT-Lite Matrix Switch
  • 1x Power Cord
  • 1x Mounting Kit
  • 1x User Instructions
