VM1616T Aten 16×16 CAT 5 Audio Visual Matrix Switch

Aten VanCryst VM1616T 16×16 VGA & Audio CAT 5 Matrix switch uses VE500/VE300 extenders to route and distribute audio, video, and RS-232 signals over distances of up to 300 meters with 1920 x 1200 video resolutions. It connects any of 16 Cat 5 A/V inputs to any of 16 Cat 5 A/V outputs and supports additional local input and local display – provides an extra input / output source. It features independent switching of audio and video sources – any audio source can be connected to any video source for output flexibility and supports stereo and balanced audio.

Data Sheet

Manual

Description

Description

The VanCryst™ Media Matrix Solution is a combination of the VM1616T 16 x 16 Cat 5 A/V Matrix Switch and the VE500/VE300 A/V Over Cat 5 Extender. The VM1616T is a Matrix Switch that uses VE500/VE300 extenders to route and distribute audio, video and RS-232 signals over distances of up to 300 meters with 1920 x 1200 video resolutions.

The VM1616T can receive data from up to 16 audio/video sources and transmit data to up to 16+1 audio/video displays. The VM1616T offers several convenient ways to access and control the source devices: locally, with front panel pushbuttons and an RS-232/RS-485/RS-422 serial port; and remotely, over the Internet with a browser-based web page interface.

The Media Matrix Solution is an ideal solution when long runs to the A/V output locations are required, and where versatility and security are essential. The VM1616T is designed for deployment in environments that involve routing video signals such as those found in casinos, transportation and logistics centers, traffic control centers, port security facilities, industrial supervision settings, etc.

Diagram

Features

Connects any of 16 Cat 5 A/V inputs to any of 16 Cat 5 A/V outputs in combination with ATEN VE500/VE300 A/V Over Cat 5 Extender system
Long signal range – supports up to 300 meters between VE500T/VE300T transmitters and VE500R/VE500RQ, VE300R/VE300RQ receivers
Easily switch between multiple sources and multiple displays
Local Operation:

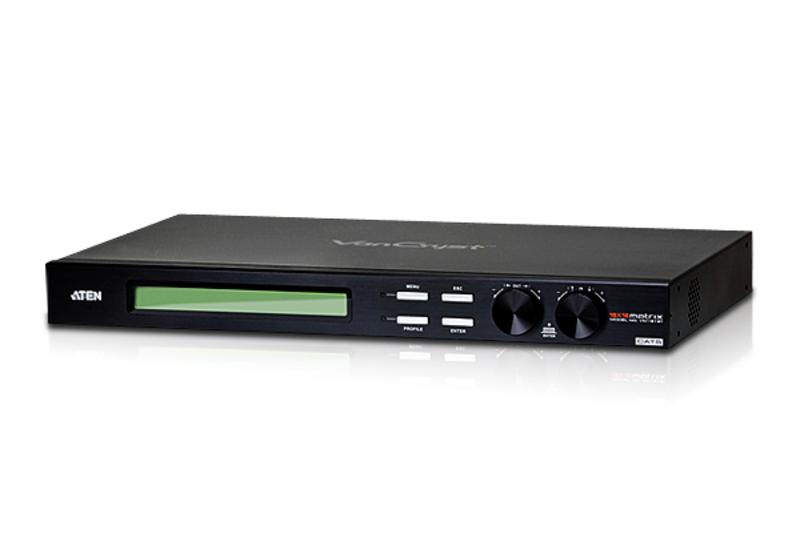

• Front panel LCD display and pushbuttons
• Serial controller
Remote Operation:
• Browser Graphical User Interface (GUI)
• Telnet
Supports additional local display – provides an extra output source
Built-in bi-directional RS-232 serial port for high-end system control
Supports video quality – up to 1920 x 1200@60Hz; DDC2B
Supports stereo and balanced audio
Automatic and adjustable video quality
Independent switching of audio and video sources – any audio source can be connected to any video source for output flexibility
Upgradeable firmware
Rack Mountable* Note: The VM1616T AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

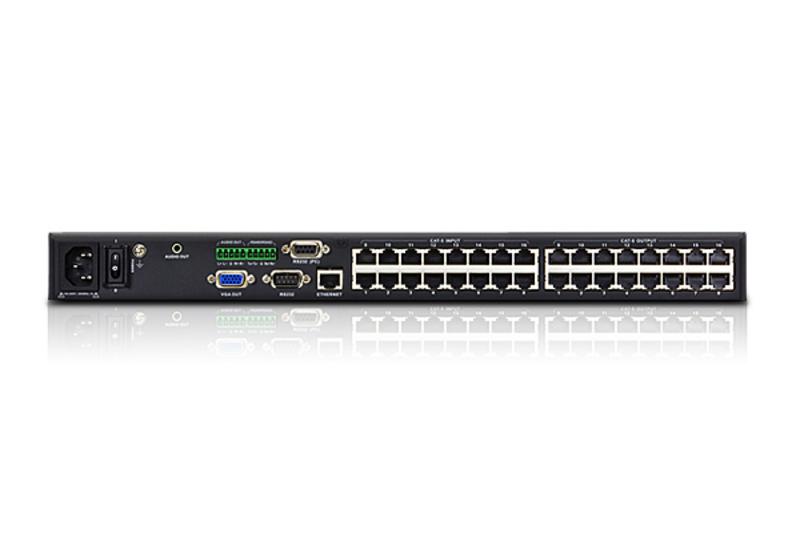

Specifications

Video Input
Interface	16 x RJ-45 Female
Impedance	100 Ώ
Video Output
Interface	16 x RJ-45 Female
Impedance	100 Ώ
Video
Max. Bandwidth	500 MHz
Max. Resolution	Up to 1920 x 1200 (Depends on connected receiver)
Max. Distance	Up to 300 m (Depends on connected receiver) *The maximum transmission distance between the transmitter and the receiver is 300 m.
Audio
Output	Balanced: 1 x Captive Screw Connector, 5 Pole Stereo: 1 x Mini Stereo Jack Female (Green)
Control
RS-232	Connector:1 x DB-9 Female (Black); 1 x DB-9 Male (Black) Serial Control Pin Configurations: Male: Pin2 = Rx, Pin 3 = Tx, Pin 5 = Gnd Female: Pin2 = Tx, Pin 3 = Rx, Pin 5 = Gnd Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No
RS-485/RS-422	1 x Captive Screw Connector, 5 Pole
Ethernet	1 x RJ-45 Female
Power
Connectors	1 x 3-prong AC socket
I/P Rating	100-240 VAC~:50-60 Hz; 1.0A
Consumption	120 VAC, 34W; 230 VAC, 35W
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 – 60°C
Humidity	0 – 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	3.63 kg
Dimensions (L x W x H)	43.24 x 27.12 x 4.40 cm
