Smart-e VHX-DC7330 encoder (Receiver Only) allows the connected HDMI video to be compressed into 2 independent IP streams. The primary JPEG 2000 stream provides a very high quality video and audio transmission with less than a frame duration latency whilst the secondary H.265 stream can be used for monitoring via standard software or third party applications. The VHX-DC7330 can accept HDMI signals up to 4K resolutions and up to 60Hz frame rate. Full extender kit requires both VHX-DC7330 & VHX-EN7330. NEW: Available Early December 2023

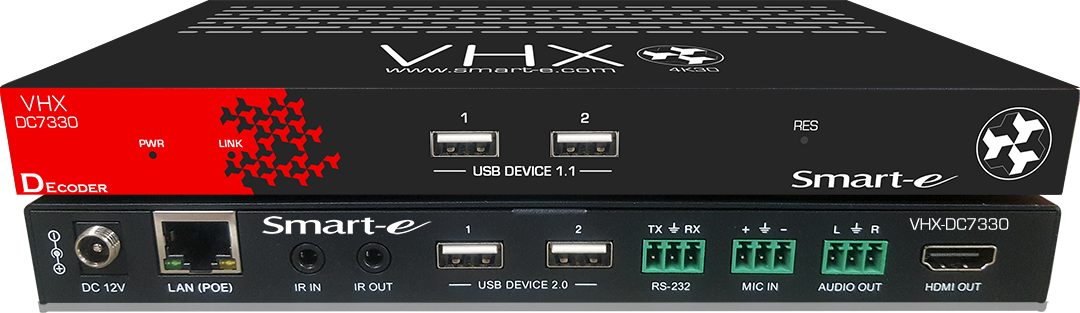

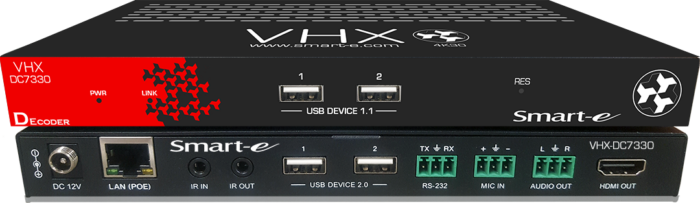

The Smart-e VHX-DC7330 decoder provides the interface and conversion between the IP stream present on the Ethernet network and the HDMI and control signal outputs. The VHX-DC7330 is able to convert the compressed JPEG 2000 stream back to the original HDMI signal and output it as a 4K resolution video up to 30Hz frame rate. The unit also has an output scaler enabling the video to be adjusted to the native resolution of the connected display.
Video streaming is compatible with a standard 1G Ethernet IGMP switcher using the Unicast and Multicast protocols. Point to point, point to multipoint and matrix switching can be achieved easily using industry standard Ethernet switchers and installation enhanced with the POE feature. The VHX-DC7330 hosts four USB peripheral connections allow for 2 x USB V1.1 devices (keyboard and mouse) and 2 x USB V2.0 devices (external hard disks and flash drives). Each port also provides a charging/powering 5V at 500mA. Other control signals can also be transmitted over the same network and can be used for RS232, infrared and CEC signals.
The VHX-DC7330 together with the encoder VHX-EN7330 provide a highly scalable and cost-effective solution for distributing HD video and control signals for a multitude of applications. Video walls can also be created with multiple decoders up to a 9×9 system.
