VGA-V080 NewLink VGA up to 80m Over CAT5 Extender

£129.00 inc VAT

The NewLink VGA-V080 CAT5 VGA extender allows a VGA signal to be extended up to 80m over low cost CAT5 cable and supports up to 2048×1536 @60Hz resolution. The case is made of metal and user can adjust the VGA signal gain using the EQ on the back of the unit.

SKU: VGA-V080 Categories: , , , , , , , , , Tags: , ,

Description

NewLink VGA-V080 VGA allows user to extend the VGA signal up to 80m from source to device. The local unit receives the video signal from the PC and sends it to the remote unit(s) through a length of Cat5e cable. The remote unit connects to the display monitor. The power supply can be connected to either local or remote unit.

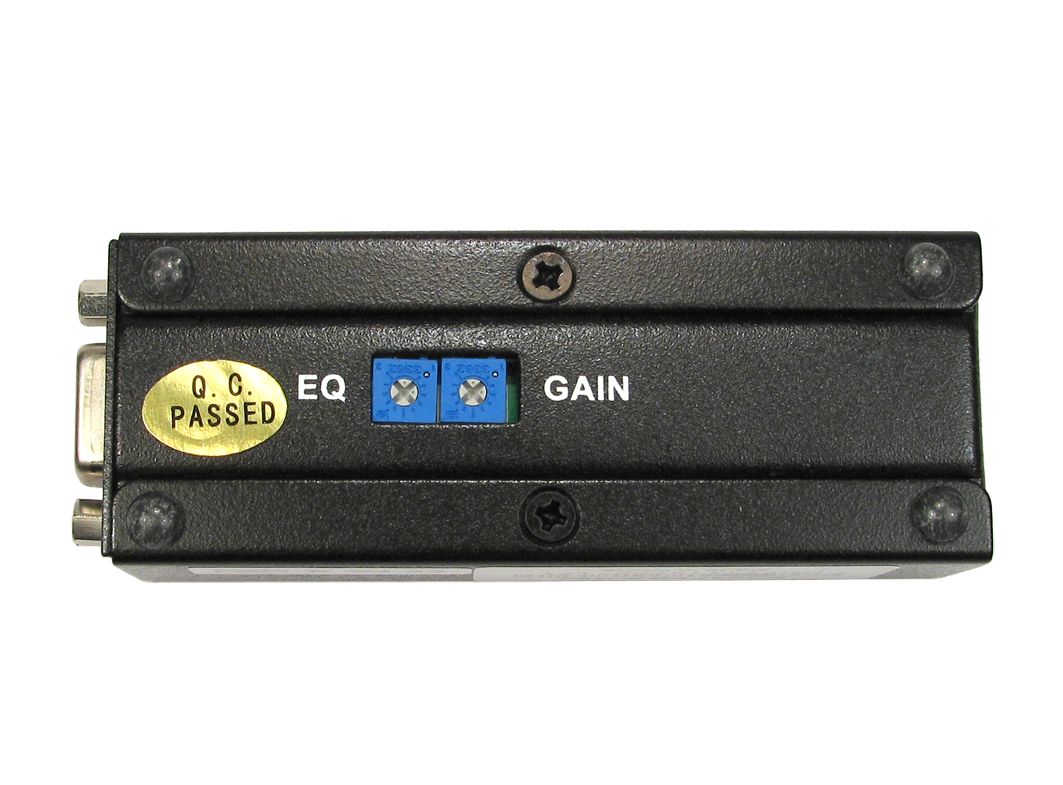

The VGA output on the VGA-V080 can be adjusted via EQ and GAIN controls located on the underside of the remote unit.

VGA-V080 Features:

  • Extend the VGA signal up to 80 metre away by using the VGA Extender and one CAT5/CAT6 cable
  • Supports “power over cable” technique, only one unit (Local or Remote) needs to connect to PSU.
  • Both “Local” and “Remote” can act as the PSE (power source equipment).
  • Maximum resolution: 2048 x 1536 60Hz (Dependant on length of extension)
  • Equalization length is adjustable
  • VGA signal gain is adjustable
  • Metal Housing

Warranty

1 Year

  • VGA-V080: Local & remote unit
  • 1 x DC 12v 600ma PSU
  • 1 x VGA cable male – male
  • 1 User manual
