VE8950 Aten 4K HDMI Single Display Over IP Extender (Pair)

£1,595.00 inc VAT

The Aten VE8950 HDMI Over IP 4K extender offers limitless scalability and flexibility from a simple point-to-point to multi-point setup via LAN without distance limitations. The system can be configured to work as an extender, a splitter, a matrix switch or as a video wall (more transmitters / receivers will be needed to split, use as a matrix or as a video wall). Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices. The system delivers visually lossless high-quality video up to 4K,  ensures stunning quality video using ATEN advanced video lossless compression technology and EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens.

Data Sheet

Manual

SKU: VE8950 Categories: , , , , , , , , , , , , , , , , , Tags: , , , ,

Description

The ATEN VE8950 Video over IP Extender delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.

The VE8950 provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

  • Limitless scalability and flexibility
  • No complicated IP setup
  • No additional server PCs or software required required
  • Go further for less with daisy chaining

Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950 Video over IP Extender is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide: http://assets.aten.com/product/manual/Implementation_Guide.pdf

  • Lightweight Compression with Ultra-low Latency
    • Delivers visually lossless high-quality video up to 1080p
    • Ensures stunning quality video using ATEN advanced video lossless compression technology
    • EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens



  • Limitless Scalability and Flexibility
    • Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
    • Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications

diagram

  • No Complicated IP Setup
    • Simple configuration that requires no extensive IT experience or extra learning
    • Effortlessly switches among input sources via top panel pushbuttons


  • No Additional Server PCs or Software Required
    • Supports web GUI for device management
    • No additional server PCs, control boxes, or software/drivers are needed



  • Go Further For Less with Daisy Chaining*
    • Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
    • Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
    • Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers
      * Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.



Daisy Chaining

* Use daisy chains to configure a video wall or expand the AV system hundreds of meters
  • Video Wall Support
    • Supports up to 8 x 8 video wall (64 displays)*
    • Supports horizontal or vertical (90° rotation) display orientation
    • Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI
      *Depends on your network architecture, please contact ATEN representatives for more details.



  • Embedded / De-embedded Audio Support
    • Separate audio signal can be embedded into the HDMI stream



  • Multiple Control Channels
    • Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
    • USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals
    • Bi-directional IR Channel – IR transmission is processed one way at a time
    • RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scanners
      Note: Each VE8900T transmitter can be controlled by a total of 4 USB touch screens installed to VE8900T receivers.Please refer to the FAQ link below on how to select network switches and network switch information collected by ATEN Customer Service Division, where the collected information includes customer’s feedback from their actual experience in using and installing the product(s).
      https://eservice.aten.com/eServiceCx/Common/FAQ/view.do?id=6276
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video
Max. Data Rate Average: 150 ~ 500Mbps
Compliance HDMI
HDCP Compatible
Max. Resolutions / Distance Up to 4K@100m (Cat 5e/6, point to point)

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output 1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Control
IR 1 x Mini Stereo Jack Female (Black)
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
USB 2 x USB Type A Female (Black)
Pushbuttons
ID Number Selection 3 x Push buttons
Connectors
Power 1 x DC Jack (Black) with locking
Power Consumption DC5V:4.53W:43BTU
Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) with bracket 14.02 x 12.30 x 3.06 cm
(5.52 x 4.84 x 1.2 in.)
Dimensions (L x W x H) without bracket 13.60 x 10.10 x 2.96 cm
(5.35 x 3.98 x 1.17 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

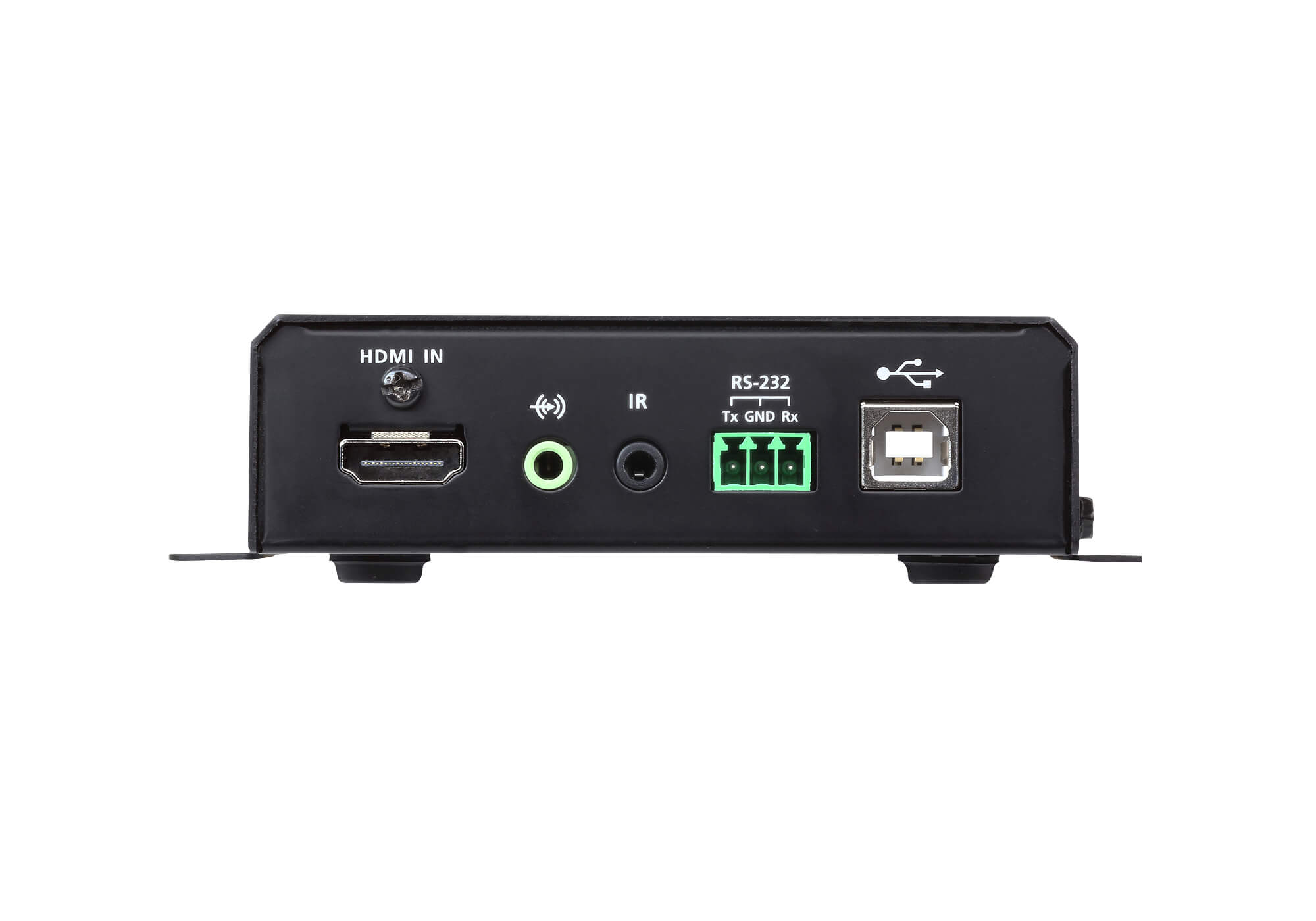

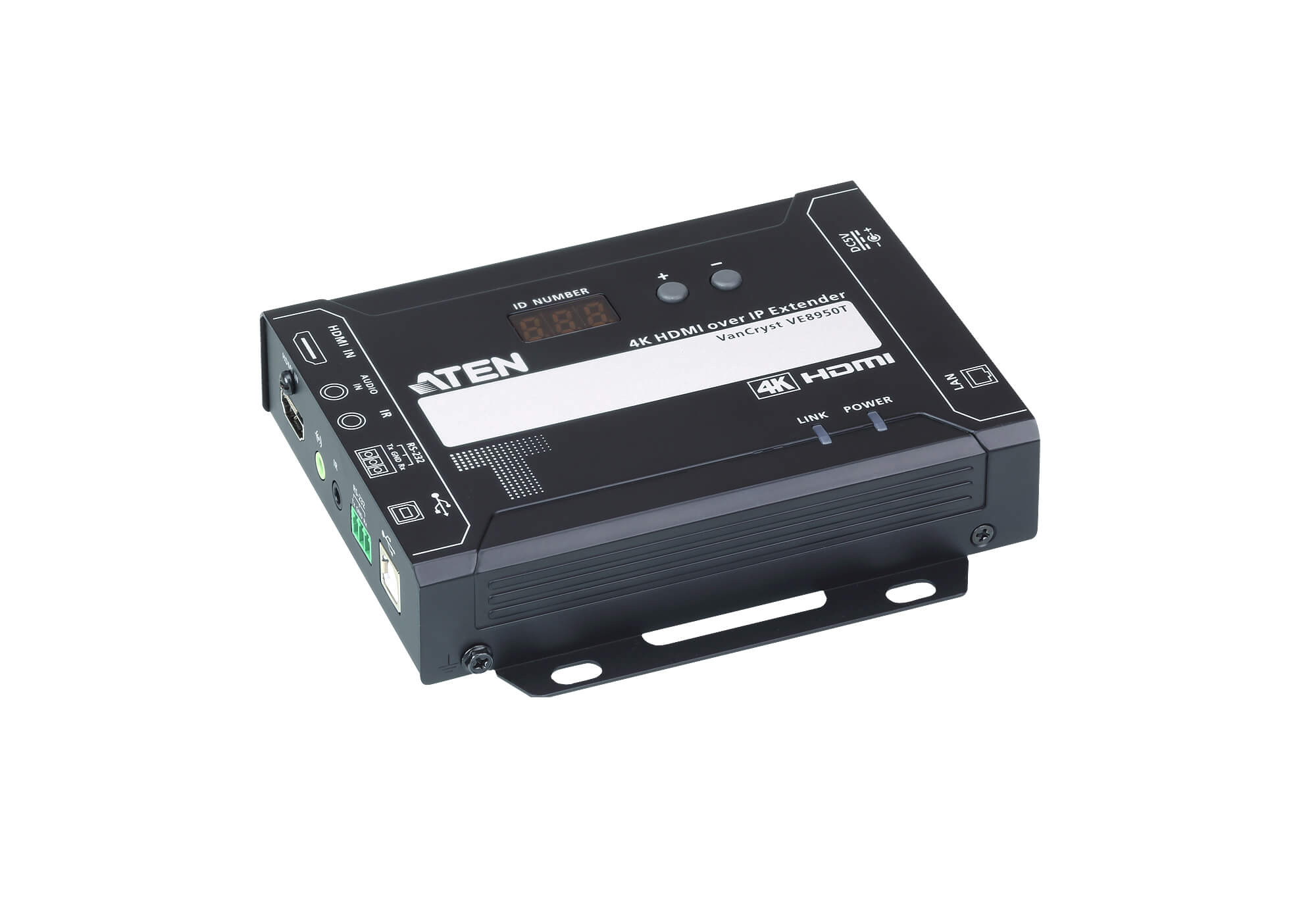

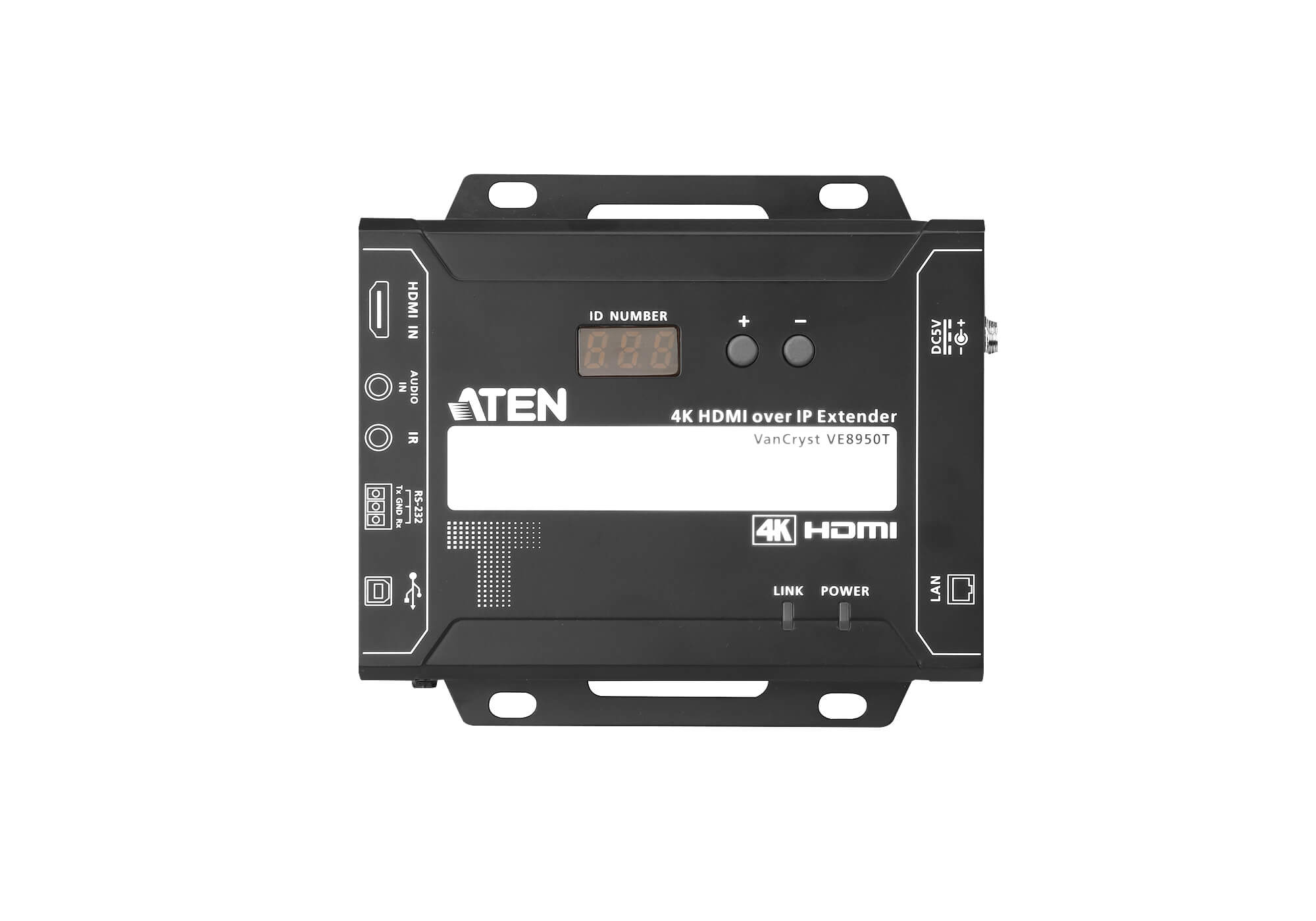

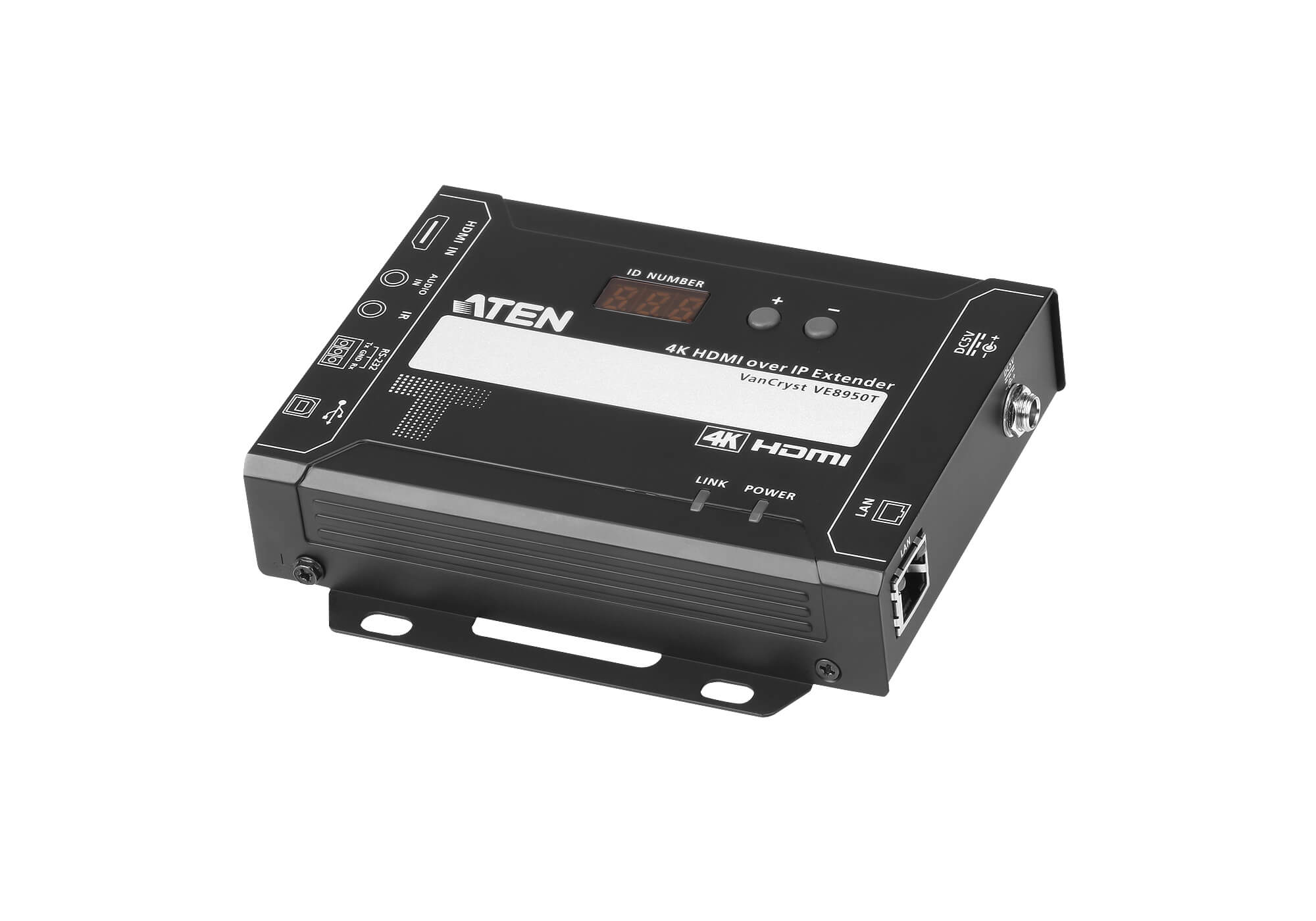

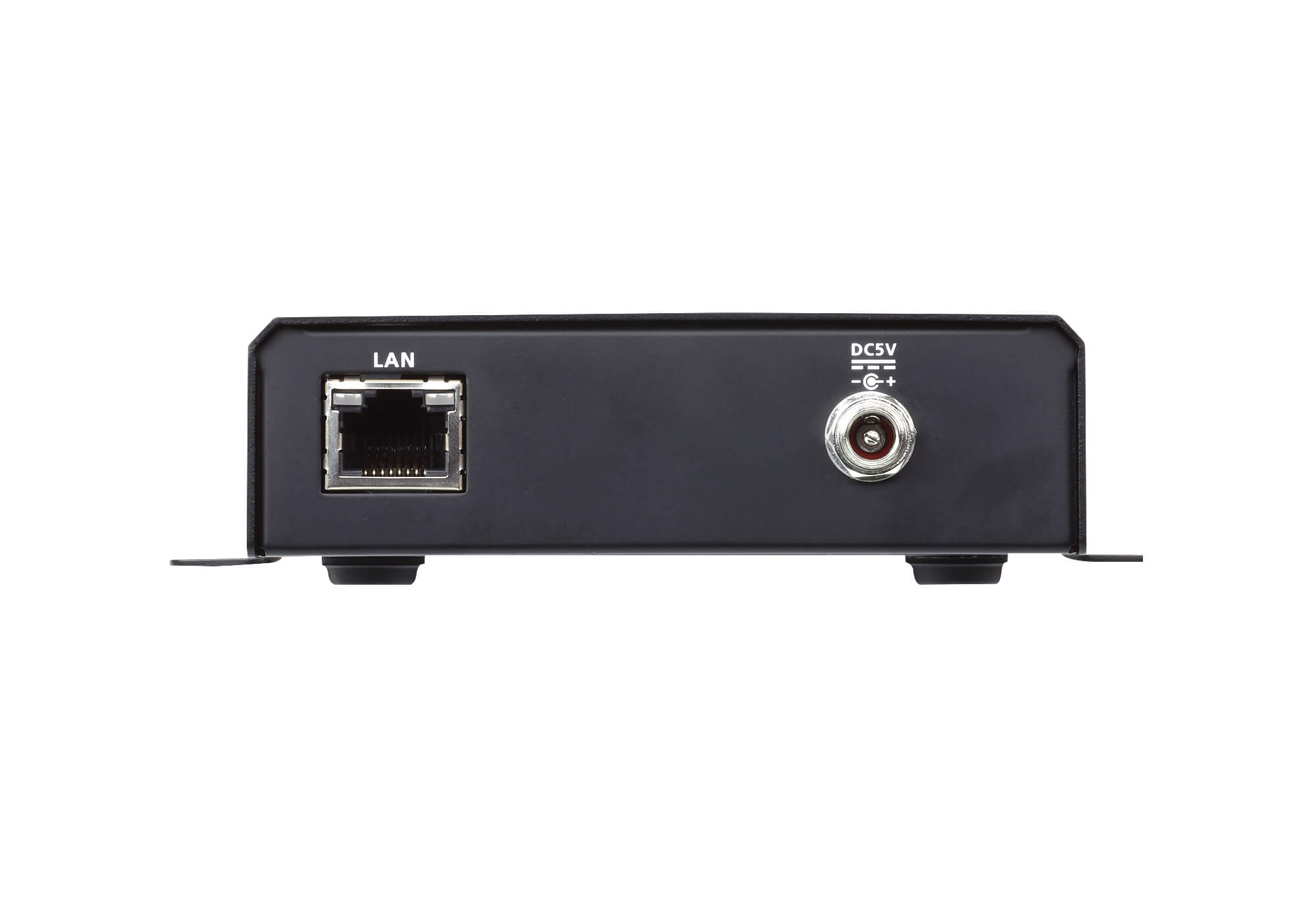

  • 1x VE8950T HDMI over IP Transmitter

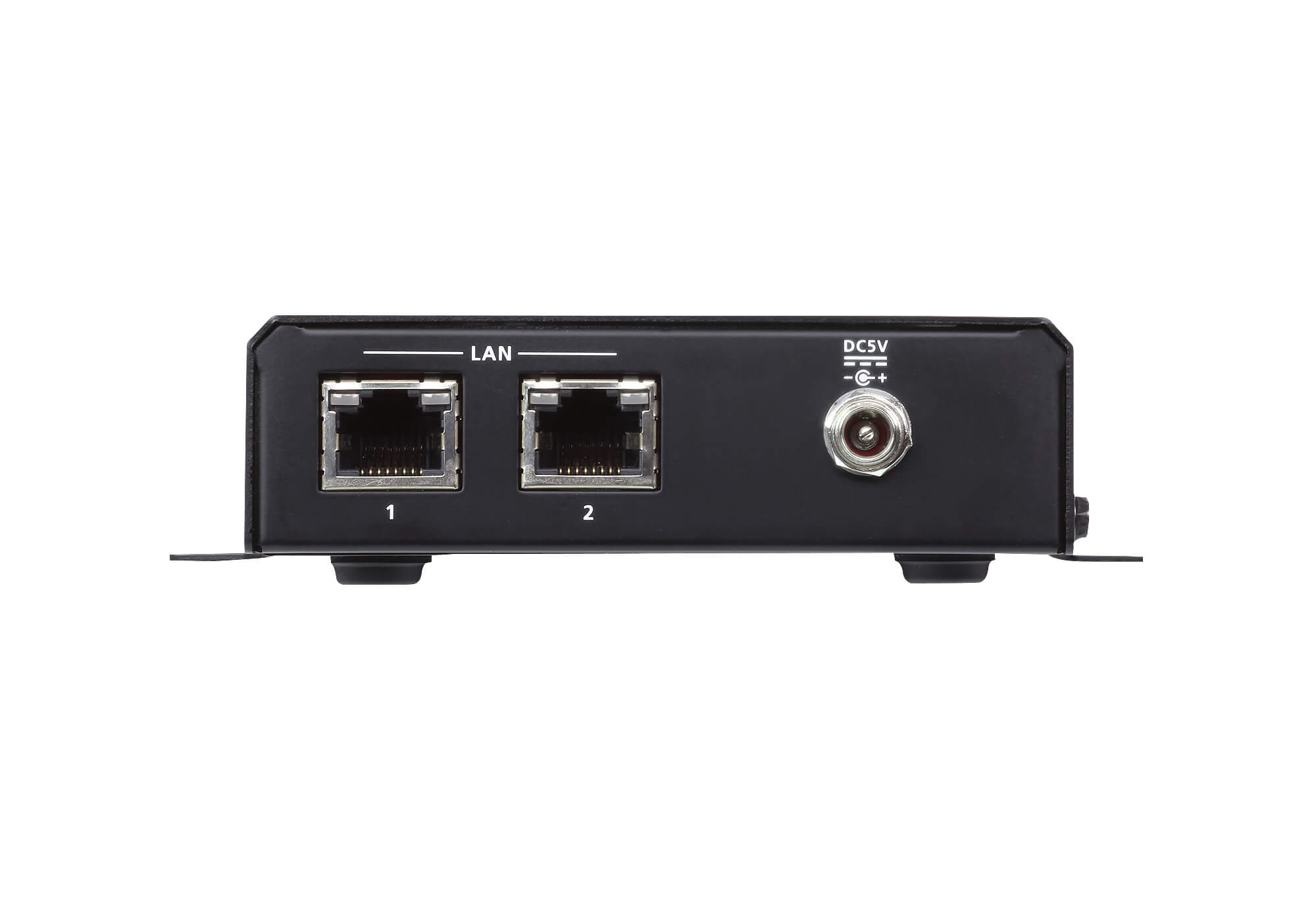

  • 1x VE8950R HDMI Over IP Receiver
  • 2x RS-232 Terminal block
  • 2x 5V Power adapter
  • 1x User instructions
