Aten VE829 5×2 HDMI wireless extender allows you to switch and independently select any of 5 sources (4 x HDMI connectors, 1 x component connector) between 2 HDTVs with superior video quality – 480P, 720P, 1080i, 1080P. It features USB HID ports on Transmitter and Receiver units enable wireless keyboard connectivity to control attached computers/laptops and it is HDMI (3D), HDCP compatible.
Manual:
The VE829 5×2 HDMI Wireless Extender is the first solution to send full uncompressed HD 1080p, while connecting up to 5 source devices and allowing users to switch and independently select any source to display on two HDTVs. Its wireless matrix feature is the biggest breakthrough in Audio / Video solutions to date. This means you can watch cable TV in one location (transmitter side) and, at the same time, independently select a Blu-ray movie to watch in another location (receiver side). The VE829 is capable of streaming Full HD 1080p with support for 3D content and digital audio up to 30m* away, within the home or any desired setup.

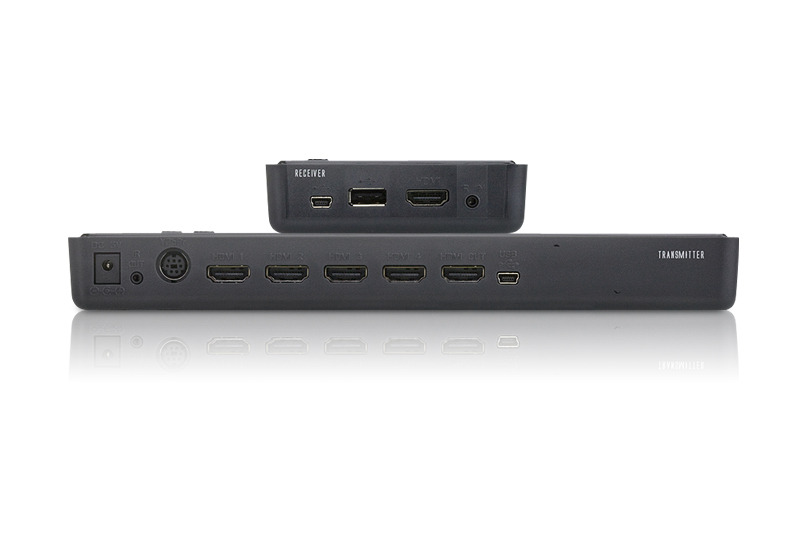

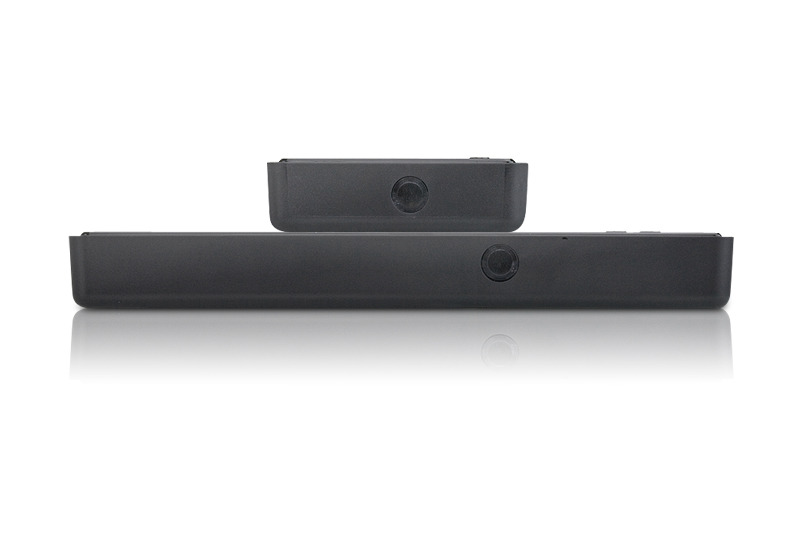

The solution consists of a Wireless Transmitter and a Wireless Receiver with connections for the HDMI and Component, along with a loop through (local port) for advanced two-HDTV setups. It also features USB HID connectivity for adding a computer / laptop to the installment, giving you wireless control from the VE829R. Infrared (IR) pass-through enables wireless control of your source devices and helps consolidate your HD A/V electronics, such as a DVDs / Blu-ray players, DVRs / Cable boxes, Game consoles and computers allowing you to design your own custom entertainment.
* Distance, quality and signal may vary depending on the environment; solid structures, such as steel, concrete and brick may result to shorter distance coverage or complete loss of signal.
Note: Connecting additional HDMI switches、splitters、or extenders can decrease the audio signal’s strength and quality
| Video Input | Interface | 4 x HDMI Type A Female (Black) 1 x Component Video Female (Blue/Green/Red) |
| Impedance | 100 Ώ (HDMI) | |
| Max Distance | 1.8 m | |
| Video Output | Interface | VE829T: 1 x HDMI Type A Female (Black) VE829R: 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ώ | |
| Video | Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz | |
| Compliance | HDMI (3D) HDCP Compatible |
|
| Max Resolutions / Distance | Up to 1080p@30m | |
| Audio | Input | 4 x HDMI Type A Female (Black) 1 x Component Audio Female (Red/White) |
| Output | VE829T: 1 x HDMI Type A Female (Black) VE829R: 1 x HDMI Type A Female (Black) |
|
| Control | IR | 1 x 2.5mm Jack Female (Black) |
| Power | Connector: VE829T: 1 x DC Jack; VE829R: 1 x DC Jack (Mini USB) Consumption: VE829T: 5 VDC, 9.5W; VE829R: 5 VDC, 6.7W (Mini USB) |
|
| Environment | Operating Temp. | 0-40°C |
| Storage Temp. | -20 – 60°C | |
| Humidity | 0-80% RH, Non-Condensing | |
| Physical Properties |
Housing | Plastic |
| Weight | VE829T: 0.30 kg; VE829R: 0.13 kg |
|
| Dimensions (L x W x H) |
VE829T: 23.40 x 9.65 x 3.25 cm; VE829R: 9.50 x 9.50 x 3.55 cm |
|
| Carton Lot | 5 pcs | |
