VE819 Aten HDMI Dongle Wireless Extender with RC

Out of stock

Aten VE819 HDMI Dongle Wireless extender extends an HDMI sends an uncompressed Full HD 1080p signal from your HDMI devices and up to 4 wireless HDMI transmitters can be paired to the receiver. It has less than 1ms latency allowing the source video to be synchronized with a projector almost without delay. The VE819 extends the signals up to 10m or 7m with superior image quality.

Data Sheet

Manual

Description

The VE819 HDMI Dongle Wireless Extender is the perfect solution for meeting rooms and home theater systems. It sends uncompressed Full HD 1080p signal from your HDMI devices such as laptops, computers and set top boxes. Up to four Wireless HDMI Transmitters can be paired to the Receiver, boosting the number of total transmitters per receiver to a maximum of 4.

The VE819 is designed to simply plug and play, no drivers or software are required. The VE819 can wirelessly extend or mirror your computer to the connected HDMI devices, enabling smooth and effortless video streaming and photo sharing.

The VE819 has less than 1ms latency, meaning that in meeting room settings, you can have the source video synchronized with a projector almost without delay.

  • Low latency < 1ms
  • Uncompressed full HD 1080p video transmission
  • Wireless extend or mirror the computer or laptop
  • Extends signals up to 10 m, up to 7 m with superior image quality*
  • Up to 4 Wireless HDMI Transmitters can be paired to one Receiver
  • Plug-and-play — No software installation requiredNote*: Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances
Function VE819R VE819T
Video Input
Interfaces N/A 1 x HDMI Type A Male (Black)
Impedance N/A 100 Ώ
Max. Distance N/A N/A
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 Ώ N/A
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz 225 MHz
Compliance HDMI (3D)
HDCP Compatible
HDMI (3D)
HDCP Compatible
Max. Resolutions / Distance Up to 1080p/60Hz@10m (Line of Sight) * Up to 1080p/60Hz@10m (Line of Sight) *
Audio
Input N/A 1 x HDMI Type A Male (Black)
Output 1 x HDMI Type A Female (Black) N/A
Control
IR 1 x 2.5mm Mini Stereo Jack Female (Black) N/A
Connectors
Power 1 x Mini USB Jack 1 x Mini USB Jack
Power Consumption 5 VDC, 7.5W (Mini USB) 5 VDC (Mini USB)
Environmental
Operating Temperature 0 – 40°C 0 – 40°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing 0 – 80% RH, Non-Condensing
Physical Properties
Housing Plastic Plastic
Weight 0.13 kg ( 0.29 lb ) 0.03 kg ( 0.07 lb )
Dimensions (L x W x H) 9.50 x 9.50 x 3.33 cm
(3.74 x 3.74 x 1.31 in.)
3.00 x 7.03 x 1.75 cm
(1.18 x 2.77 x 0.69 in.)
Carton Lot 5 pcs 5 pcs
Note * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances. * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

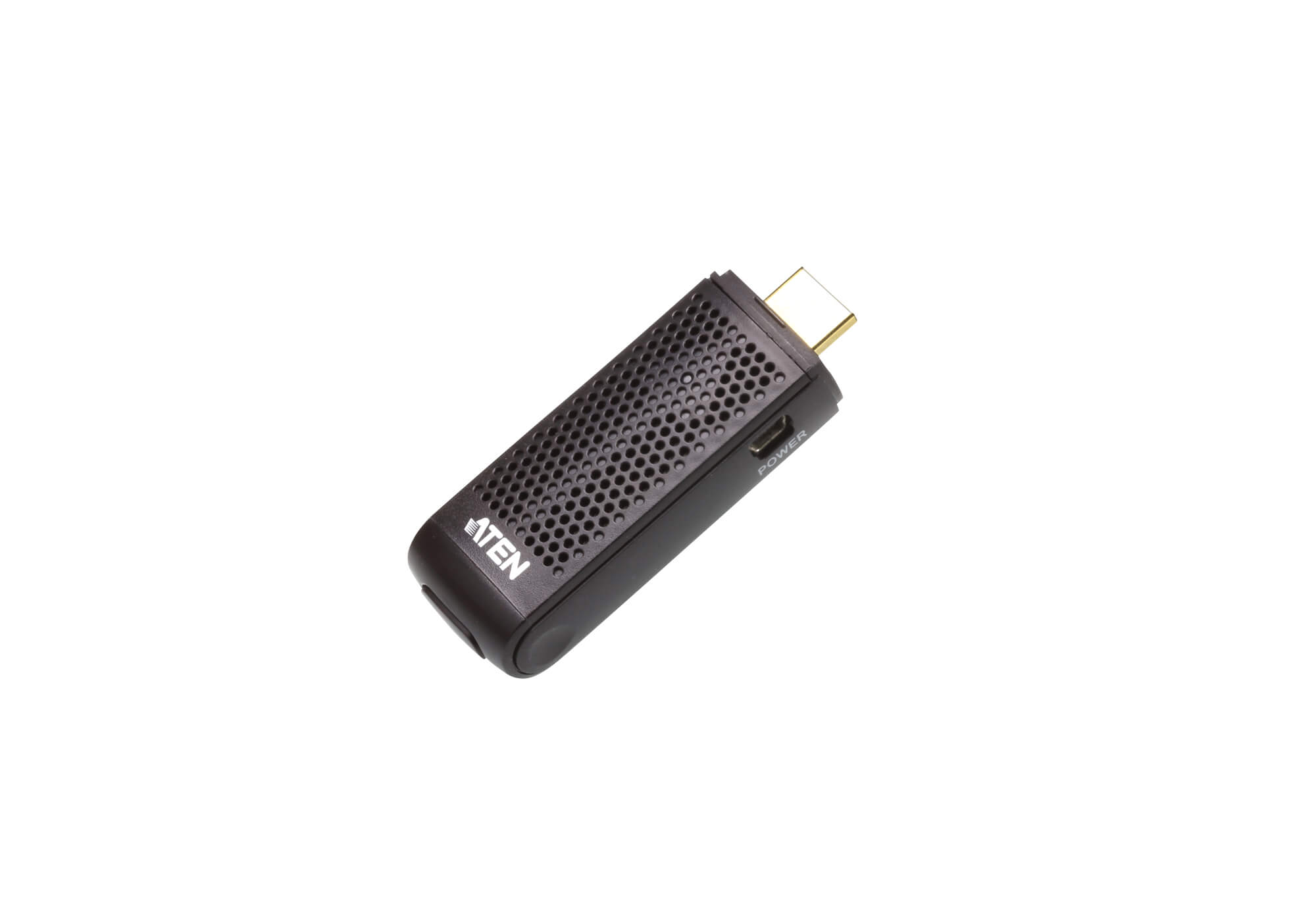

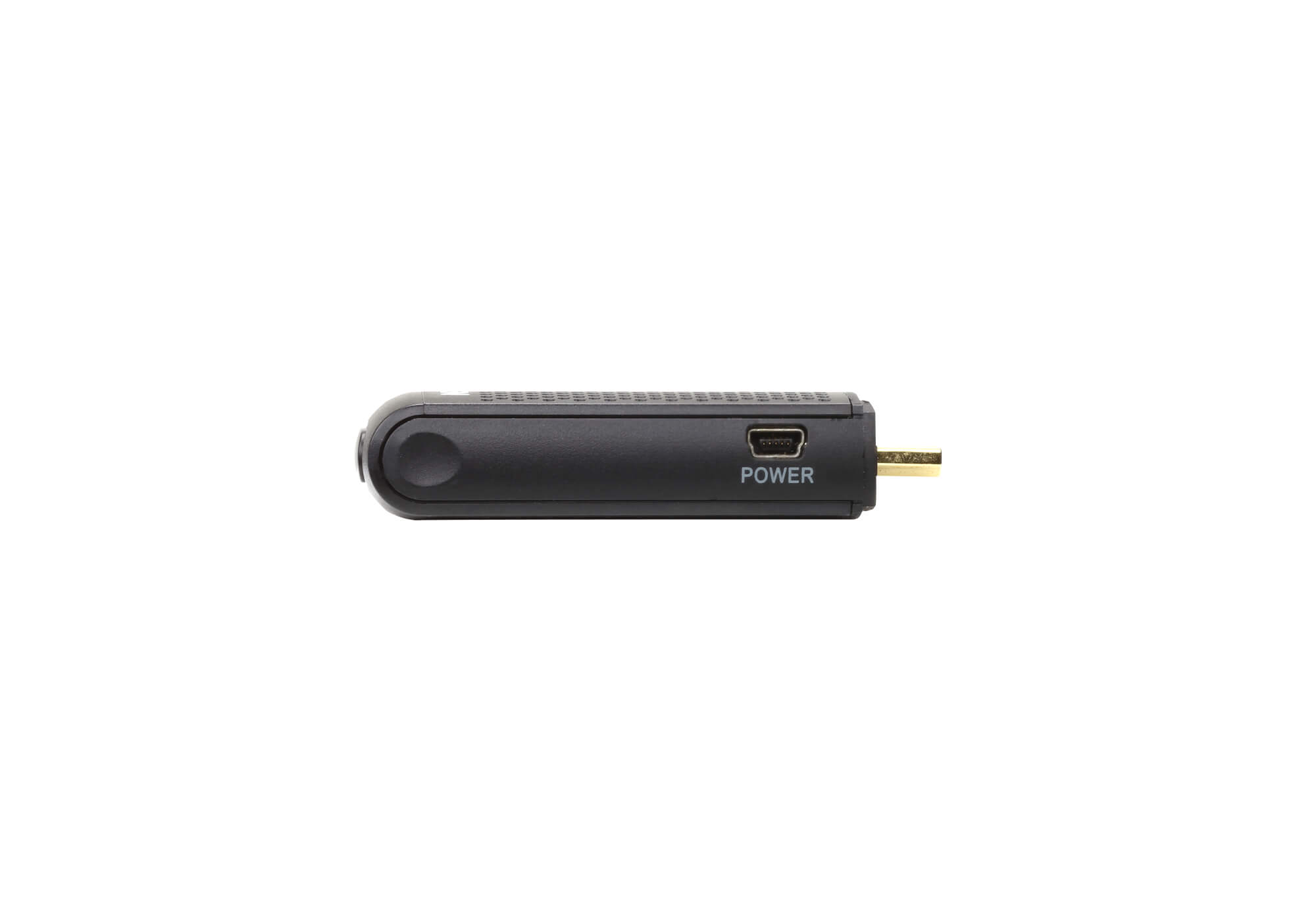

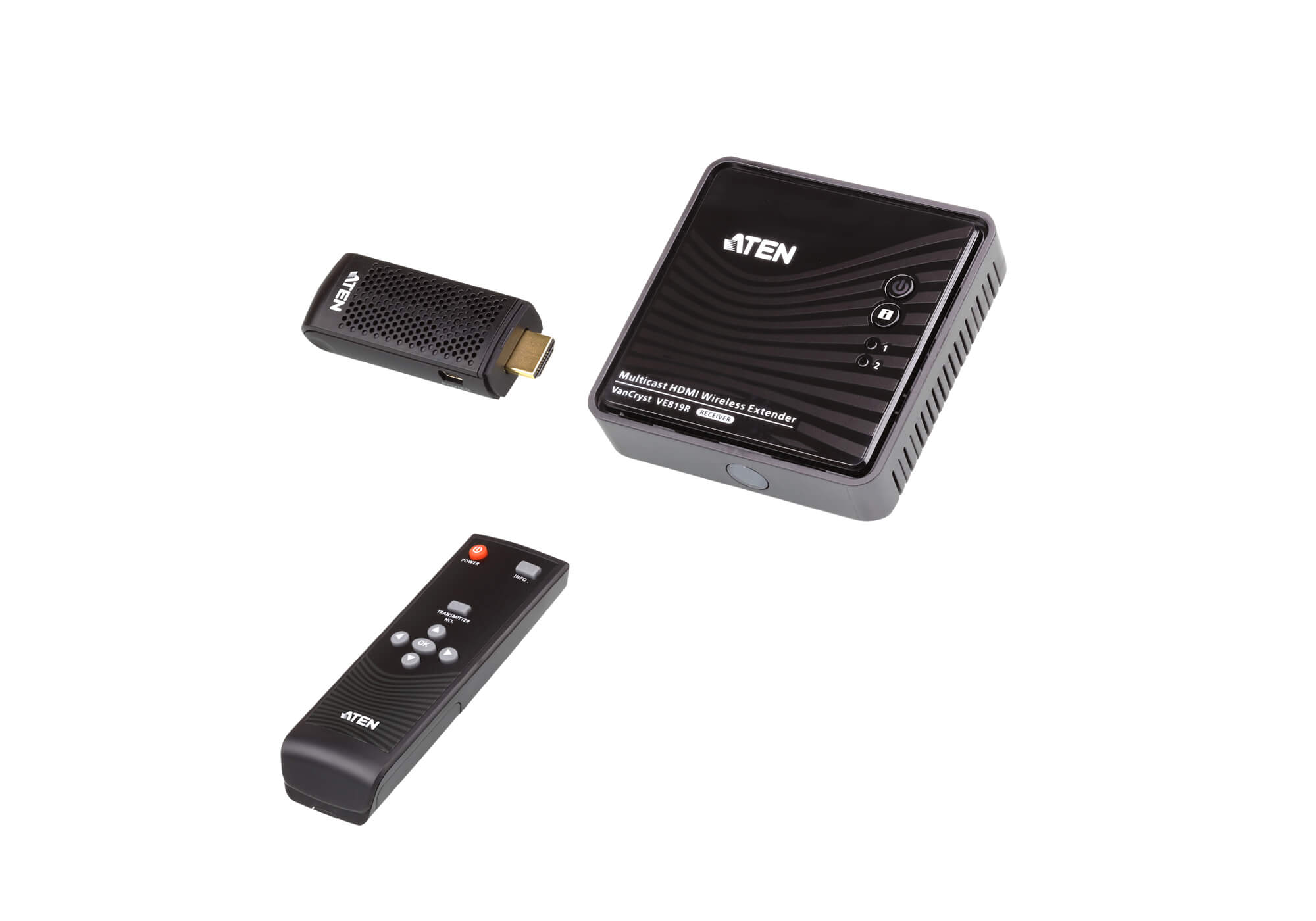

  • 1x VE819T HDMI Dongle Wireless Transmitter

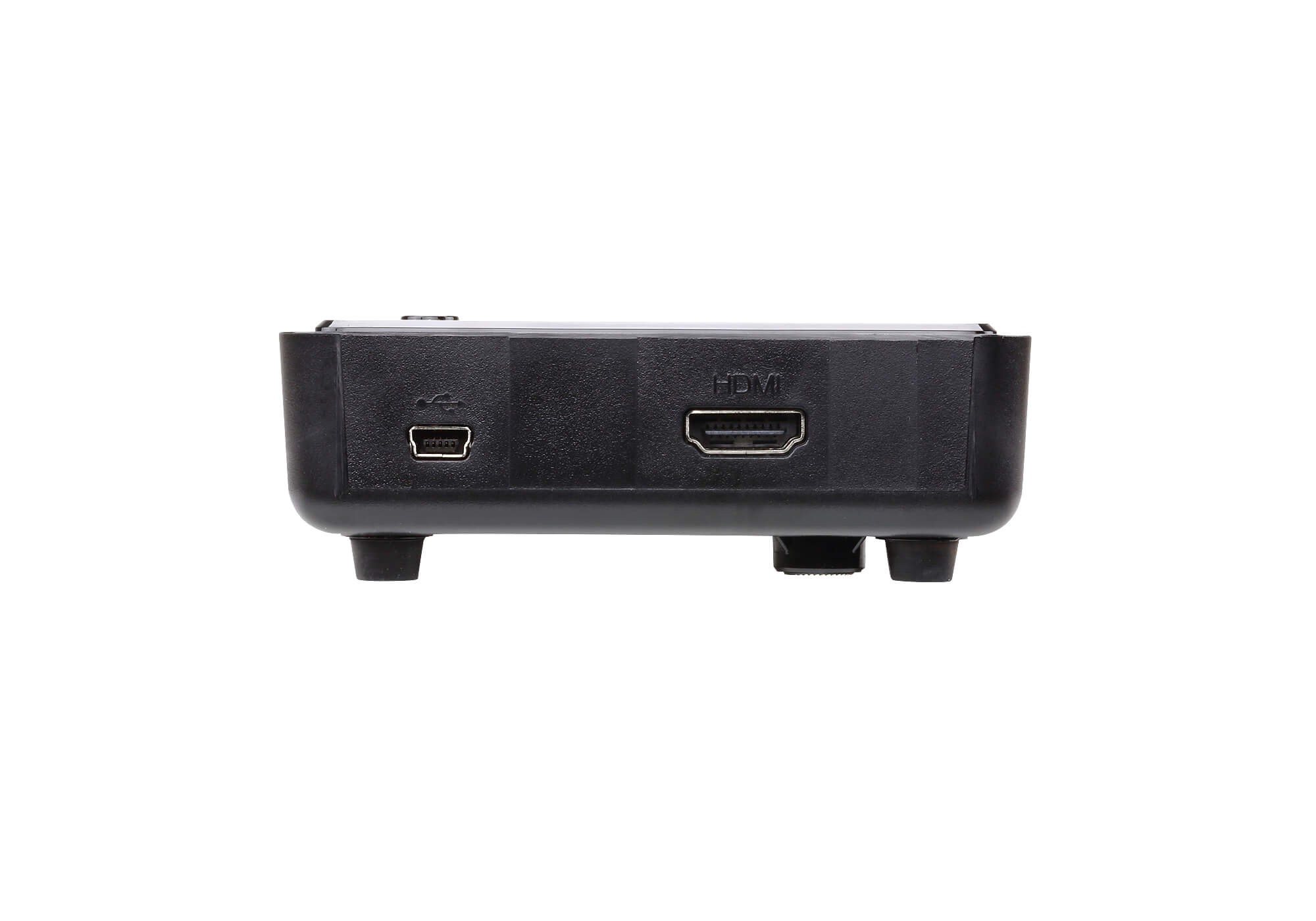

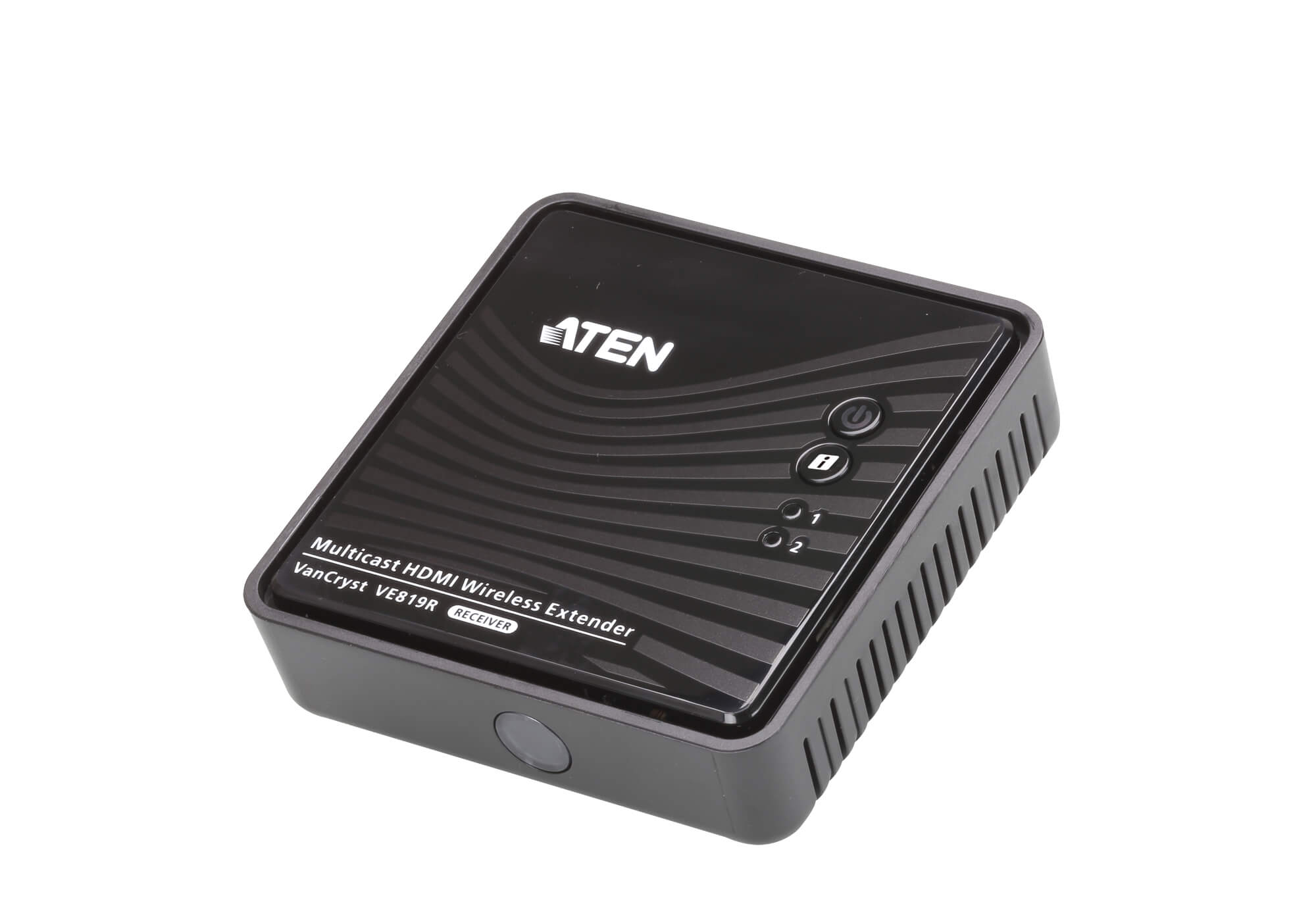

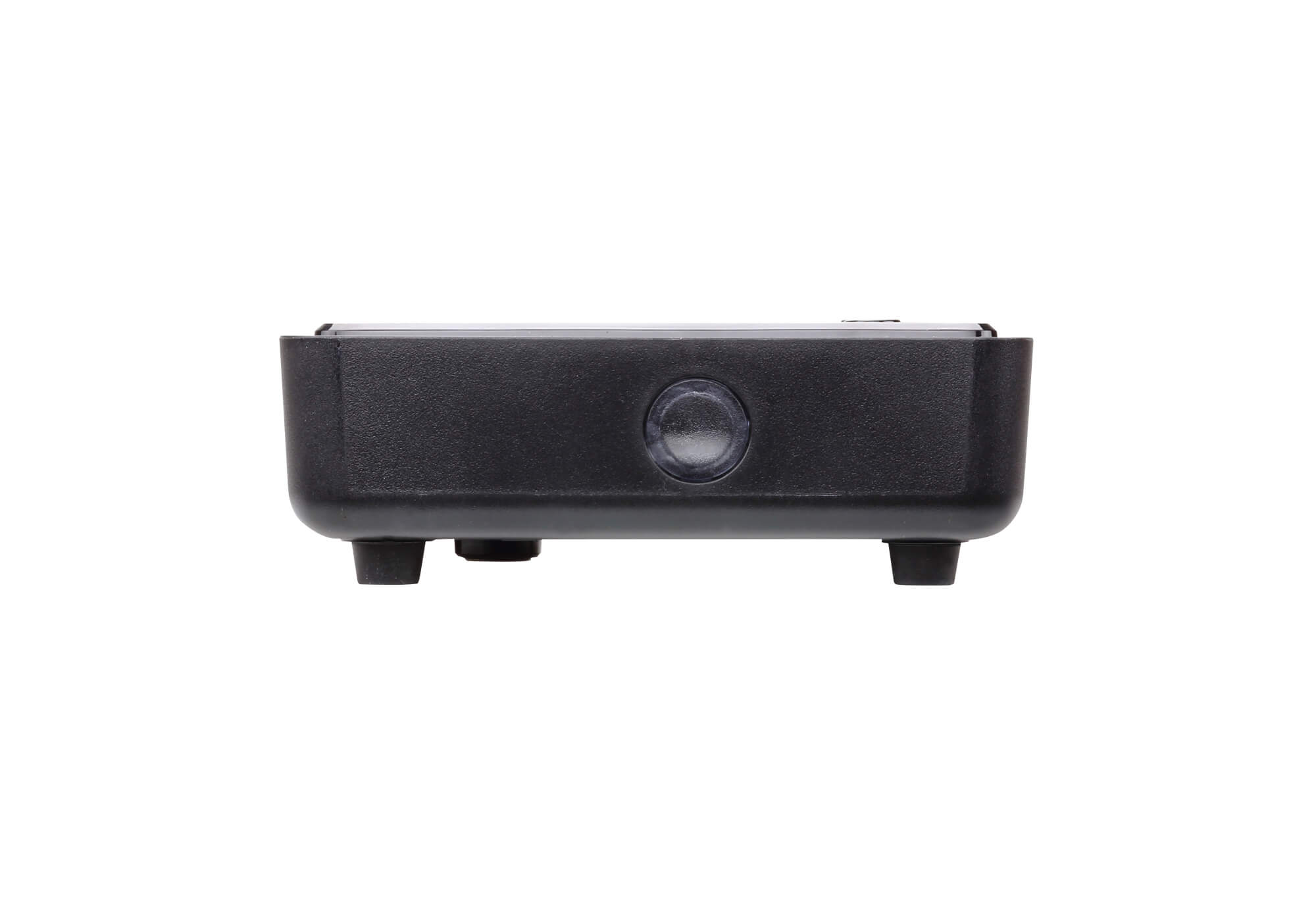

  • 1x VE819R HDMI Dongle Wireless Receiver
  • 1x Mini USB to USB Cable
  • 2x Mini USB Power Adapters
  • 1x HDMI Cable
  • 1x Remote Control Unit with 2 AAA Batteries
  • 1x IR Receiver cable
  • 1x User Instructions
  • 1x Warranty Card
