£1,189.00 inc VAT

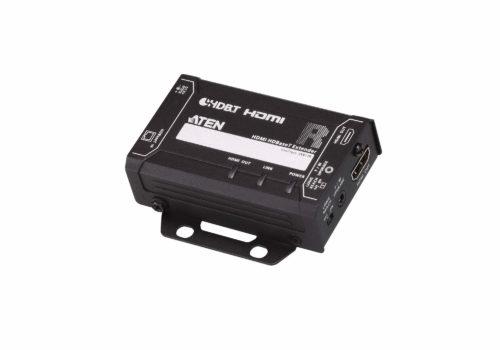

Aten VE813A HDMI HDBaseT extender can extend an HDMI and USB 2.0 signal up to 100m using a single Ethernet cable. It is equipped with USB connectors that provide touch panel control and file transfer functionality. It features Anti-jamming – high quality video transmissions via HDBaseT technology that resists signal interference, supports Dolby True HD and DTS HD Master Audio and ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
The VE813A HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and patented ExtremeUSB® technology. The VE813A can extend HDMI and USB 2.0 signal up to 100 meters from the HDMI source using a single Ethernet cable. The VE813A supports HDMI features such as 3D, Deep Color, 4K, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality. The extender is also great for synchronizing files and folders between portable and desktop computers. The superior display capability makes VE813A ideal for medical imaging and digital signage.
| Function | VE813AR | VE813AT |
| Video Input | ||
| Interfaces | – | 1 x HDMI Type A Female (Black) |
| Impedance | – | 100 Ώ |
| Max. Distance | – | 1.8 m |
| Video Output | ||
| Interfaces | 1 x HDMI Type A Female (Black) | – |
| Impedance | 100 Ώ | – |
| Video | ||
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | Up to 340 MHz | Up to 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | ||
| Input | – | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | – |
| Power Consumption | 5 VDC, 5.75W Note: For the VE813R, power consumption will be 13.25W when all 3 USB connectors are occupied. |
5 VDC, 5.75W Note: For the VE813R, power consumption will be 13.25W when all 3 USB connectors are occupied. |
| Physical Properties | ||
| Weight | 0.62 kg ( 1.37 lb ) | 0.61 kg ( 1.34 lb ) |
| Dimensions (L x W x H) | 18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.) |
18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.) |
| Housing | Metal | Metal |
| Carton Lot | 5 pcs | 5 pcs |
| Control | ||
| USB Channel | 3 x USB Type A Female Transfer Rate: USB 2.0 (Up to 40 Mbps) |
1 x USB Type B Female Transfer Rate: USB 2.0 (Up to 40 Mbps) |
| Connectors | ||
| Power | 1 x DC Jack | 1 x DC Jack |
| Environmental | ||
| Operating Temperature | 0-40°C | 0-40°C |
| Storage Temperature | -20 – 60°C | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing | 0 – 80% RH, Non-Condensing |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
