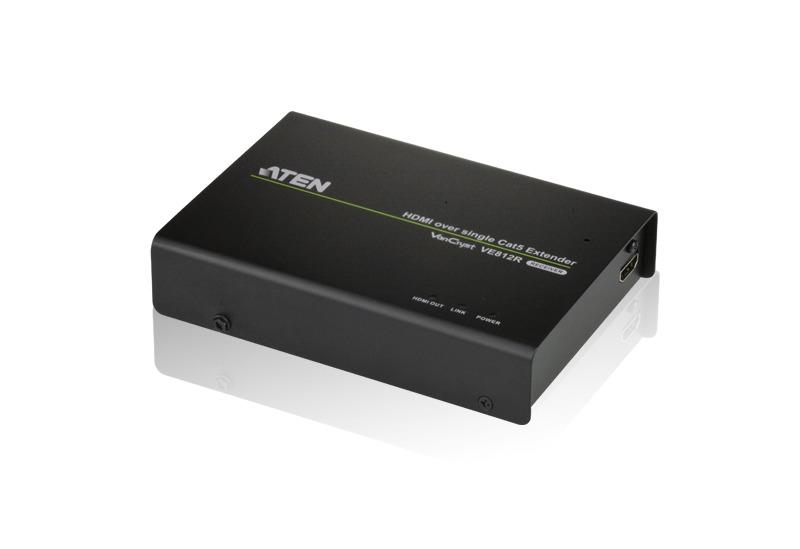

VE812R Aten HDMI Over Single CAT 5 Receiver

£239.00 inc VAT

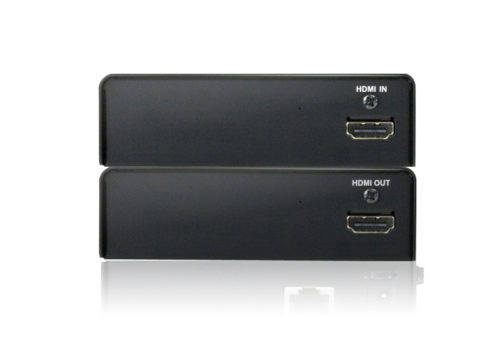

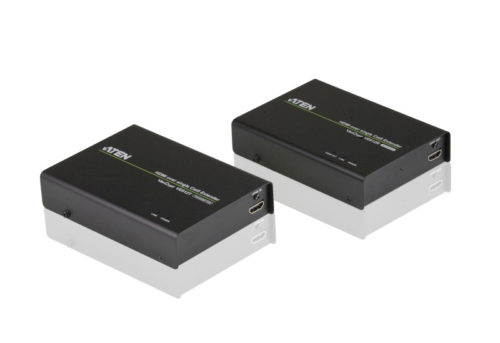

Aten VE812R HDMI over single CAT5 Receiver when used as an extender (VE812 pair) enables an HDMI display to be located up to 100 meters away from the source device and is HDMI (3D, Deep Color, 4kx2k); HDCP Compatible. It features Anti-jamming that resists signal interference during high-quality video transmission using HDBaseT technology and supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD.  Its EDID Expert allows you to selects the optimum EDID settings for smooth power-up and highest quality display.

Data Sheet

Description

The VE812R HDMI Over Single Cat 5 Receiver supports HDBaseT technology that uses a single Cat 5e cable to extend signals up to 100 m.The VE812R not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.

The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.

  • Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
  • HDMI (3D, Deep Color, 4k); HDCP Compatible
  • Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • Long distance transmission – up to 100m
  • EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
  • Supports up to 340MHz bandwidth for high performance video
  • Supports Dolby True HD and DTS HD Master Audio
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Video Output
Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock Up to 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output 1 x HDMI Type A Female (Black)
Power
Connectors 1 x DC Jack
Consumption 5.3 VDC, 4.5W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.41 kg
Dimensions (L x W x H) 14.17 x 10.30 x 3.00 cm
  • 1x VE812R HDMI Over Single Cat 5 Receiver
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions
