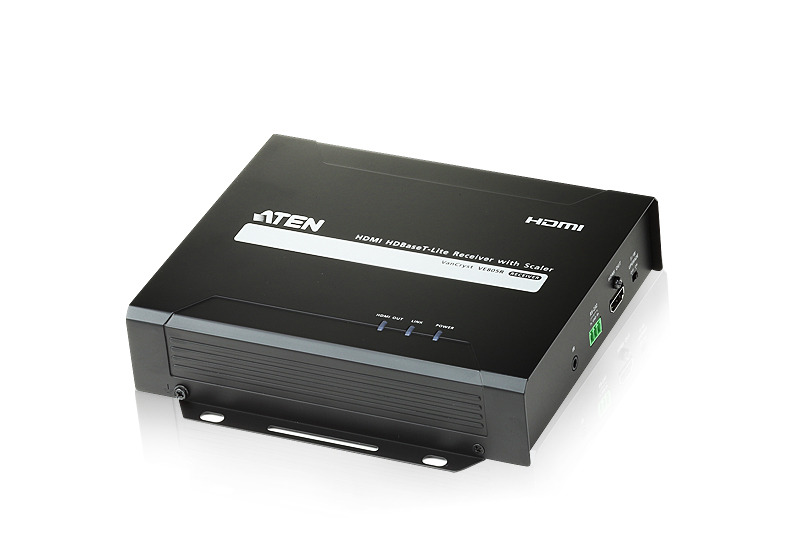

VE805R Aten HDMI HDBaseT Lite Receiver with Scaler

£499.00 inc VAT

The Aten VE805R HDMI HDBaseT Lite up to 60m over a single CAT5 Receiver with Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions, features Bi-directional RS-232 channel that allows you to connect to serial terminals or serial devices such as touch screens and barcode scanners, and supports HDBaseT Anti-jamming.

Data Sheet

SKU: VE805R Categories: , , ,

Description

The Aten VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

  • HDBaseT Connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6a cable
  • HDBaseT Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
  • Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
  • Video Wall – features configurable video wall profiles available for custom screen layouts via simple point-n-click web GUI*
  • Bi-directional IR channel – IR transmission is processed one direction at a time**
  • Rack-mountableNote:
    * The Seamless Switch™ and video wall functions are available when the VE805R is used with the VM8514.
    ** Supports full frequency IR signals from 30KHz to 60KHz; however the IR receiver cable included with the package only supports 30KHz to 56 KHz.

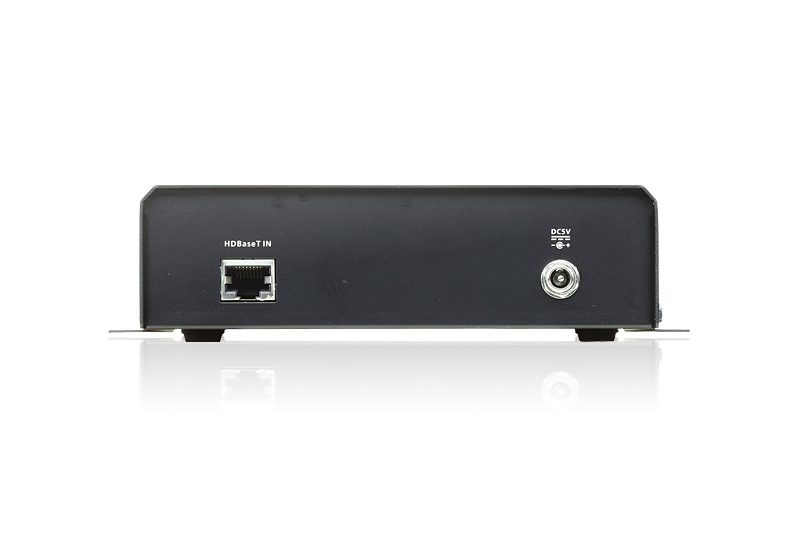

Video Input Interface 1 x RJ-45 Female (Silver)
Impedance 100Ώ

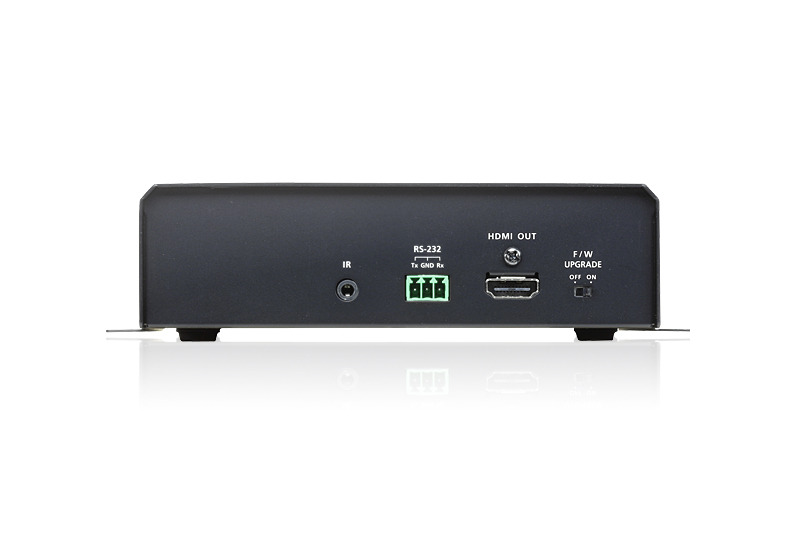

Video Output Interface 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Video Max Data Rate 6.75 Gpbs (2.25 Gbps per lane)
Max Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP1.4; HDBaseT Compatible
Max Resolution / Distance Up to 1080p @60m (Cat 5e/6);
70m (Cat 6a)
Control RS-232 Connector: 1 x Captive Screw
Connector, 3 Pole
IR 1 x Mini Stereo Jack Female (Black)
Power Connector: 1 x DC Jack (Sliver);
Consumption: 5 VDC, 9.5W
Environment Operating Temp. 0-50°C
Storage Temp. -20°C – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.83 kg
Dimensions
(L x W x H)
18.18 x 16.92 x 4.20 cm

  • 1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
  • 1x Power Adapter
  • 1x IR Transmitter
  • 1x IR Receiver
  • 1x Terminal Block
  • 1x User Instructions
