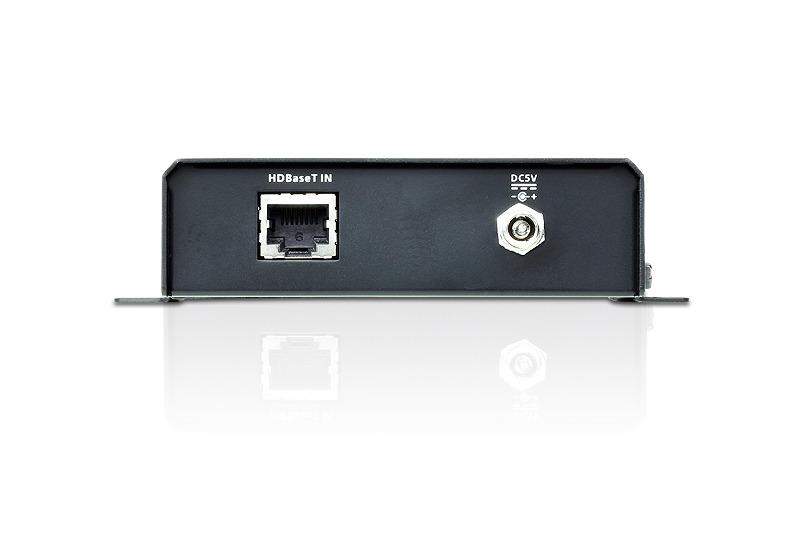

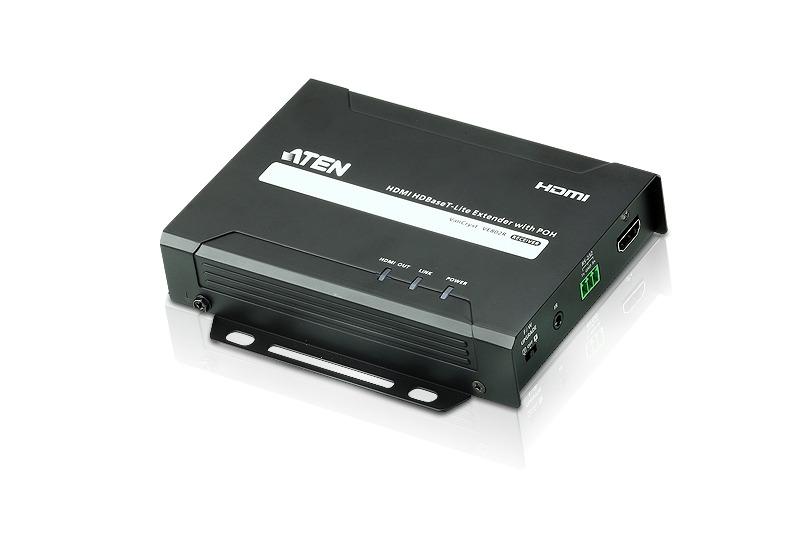

VE802R Aten HDMI HDBaseT Lite Receiver

£205.00 inc VAT

Aten BE802R HDMI HDBaseT Receiver extends signl up to 70m from source using a single CATx cable and supports RS-232 and IR signaling pass-through. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality. It features Anti-jamming that resists signal interference during high-quality video transmission using HDBaseT technology and  POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable.

Data Sheet

Manual

SKU: VE802R Categories: , , , , , , , , Tags: , , , , ,

Description

The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality.

Features

HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel – IR transmission is processed one direction at a time
Rack- Mountable

Specifications

Video Input
Interface 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Max. Distance 1.8 m
Video Output
Interface 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)

HDCP Compatible

Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black)
Control
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR 1 x Mini Stereo Jack Female (Black)
Power
Connectors 1 x DC Jack (Black) with locking
Consumption DC5V, 4W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.46 kg
Dimensions (L x W x H) 14.48 x 12.30 x 3.00 cm

Package Contents

  • 1x VE802R HDMI HDBaseT-Lite Receiver with POH
  • 1x Power Adapter
  • 1x IR Receiver
  • 1x Terminal Block
  • 1x User Instructions
