VE801R Aten HDMI HDBaseT Lite Receiver

£169.00 inc VAT

Aten VE801R HDMI HDBaseT Lite up to 70m 4K receiver over a single CAT5/6 cable supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. It features HDBaseT Anti-jamming that resists signal interference during high-quality video transmission using HDBaseT technology and configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens.

Data Sheet

Description

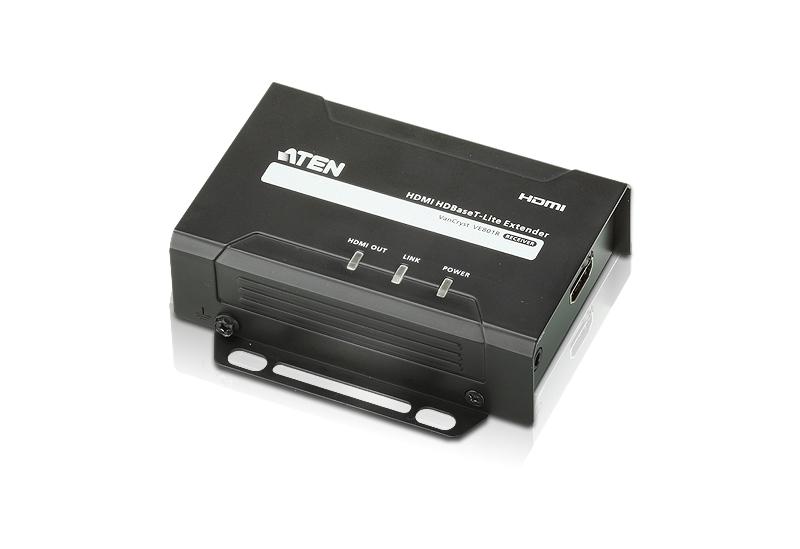

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.

  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • EDID Expert – configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
  • Rack- Mountable
Video Output

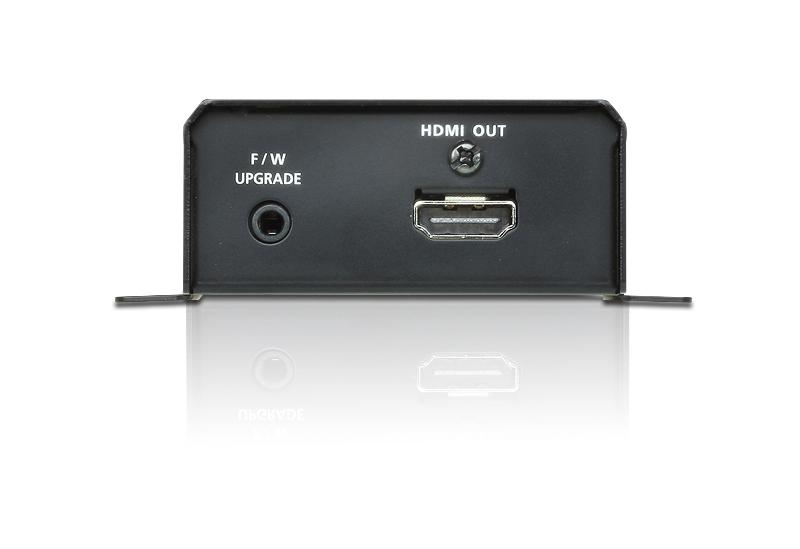

Interface 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output 1 x HDMI Type A Female (Black)
Power
Connectors 1 x DC Jack (Black) with locking
Consumption DC5V, 4.23W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.25 kg
Dimensions (L x W x H) 12.47 x 8.70 x 3.00 cm

  • 1x VE801R HDMI HDBaseT-Lite Extender
  • 1x Power Adapter
  • 1x User Instructions
