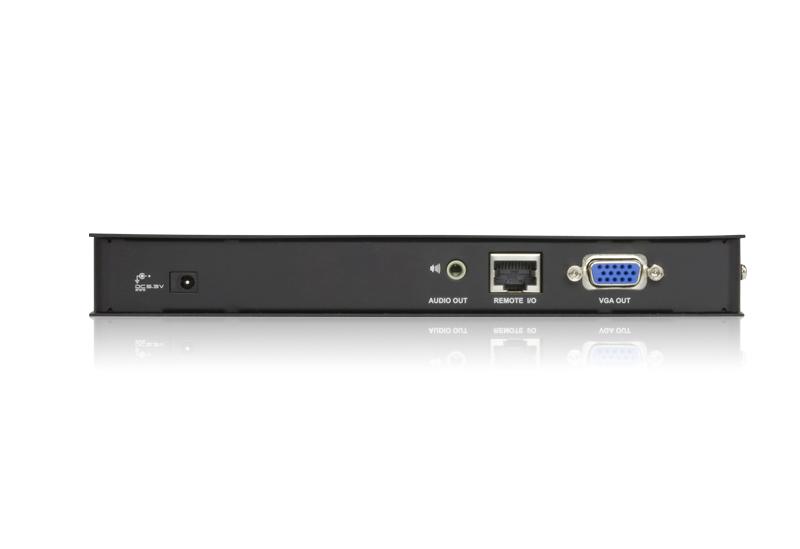

VE300T Aten Audio / Video CAT 5 Transmitter

£195.96 inc VAT

The Aten VE300T Audio Visual Over CAT 5 transmitter is exclusively designed to integrate seamlessly with the ATEN VM0808T/VM1616T Matrix Switch to extend signals up to 300m from the source to the switch using Cat 5e cables. Ve300 has automatic and adjustable gain control – adjust signal strength to compensate for distance, suports wide screen with built-in 8KV /15KV ESD protection.

Data Sheet

Description

The VE300T A/V Over Cat 5 transmitter is exclusively designed to integrate seamlessly with the ATEN VM0808T/VM1616T Matrix Switch to extend signals up to 300m from the switch to a display using Cat 5e cables. The VE300T  is ideal for installations such as construction sites, factory floors, and control and security centers – where the system equipment can reside in a safe and secure location, while the display is conveniently located in public view.
To provide optimum video quality over large distances.

  • Long Distance Transmission up to 300 m
  • Automatic and adjustable gain control – adjust signal strength to compensate for distance
  • Supports wide screen
  • Rack-mountable
  • Built-in 8KV/15KV ESD protection
Video Input
Interface 1 x HDB-15 Female (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output
Interface 1 x HDB-15 Female (Blue)
Impedance 75 Ώ
Video
Max. Bandwidth 300 MHz
Audio
Input 1 x Mini Stereo Jack Female (Green)
Output Stereo: 1 x Mini Stereo Jack Female (Green)
Power
Connectors 1 x DC Jack (Black)
Consumption 5.3 VDC, 2.61W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.47 kg
Dimensions (L x W x H) 20.20 x 8.20 x 2.50 cm
  • 1x VE300T A/V Over Cat 5 Transmitter
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions
