VE1812 Aten HDMI HDBaseT Extender with POH (4K@100m) HDBaseT Class A

£518.82 inc VAT

he VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

Data Sheet

Manual

SKU: VE1812 Categories: , , , , , , , , Tags: , , ,

Description

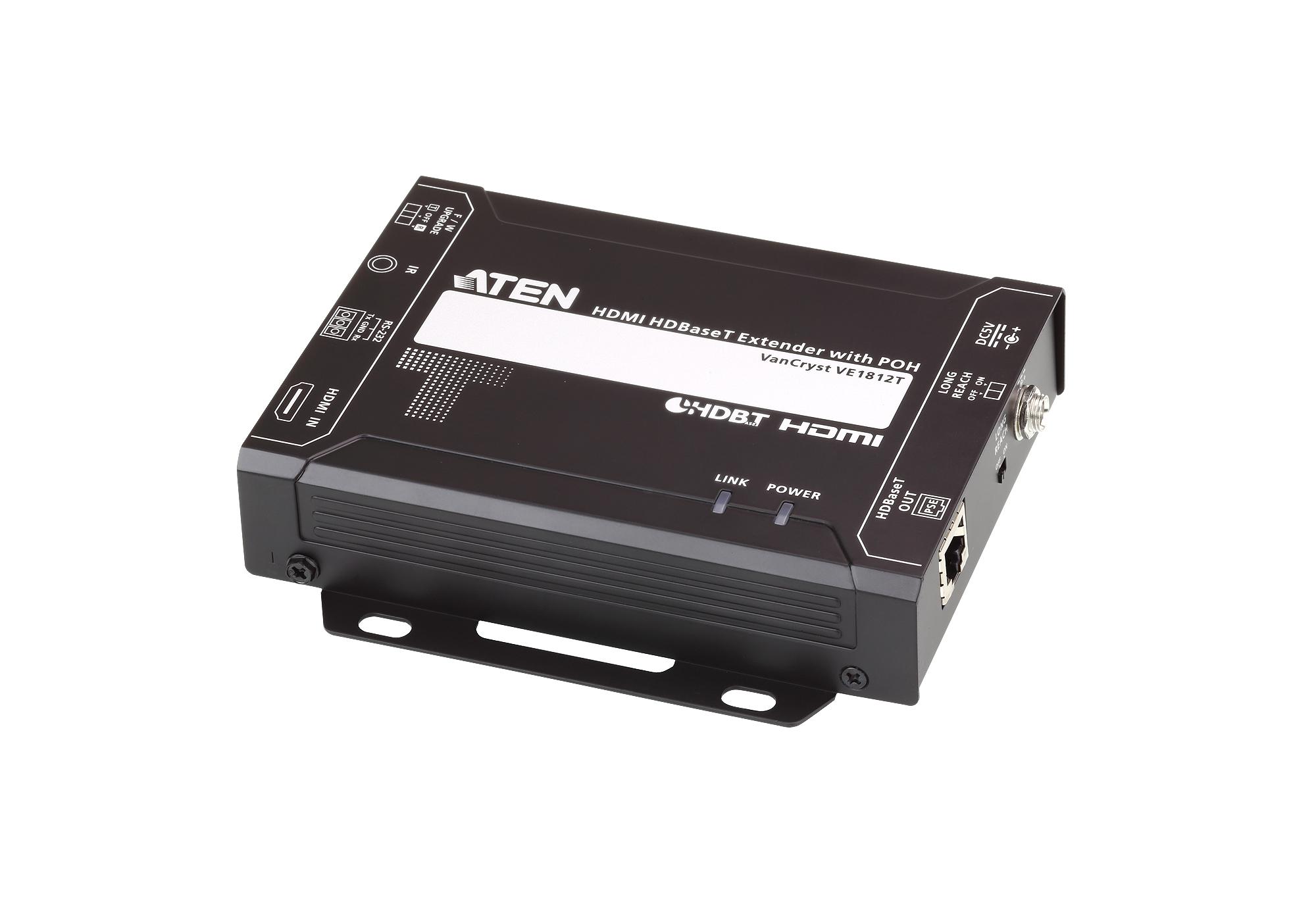

The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.

The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
  • Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p
  • 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
  • HDBaseT Anti-jamming – resists signal interference during high – quality video transmission using HDBaseT technology
  • POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
  • Rack- Mountable

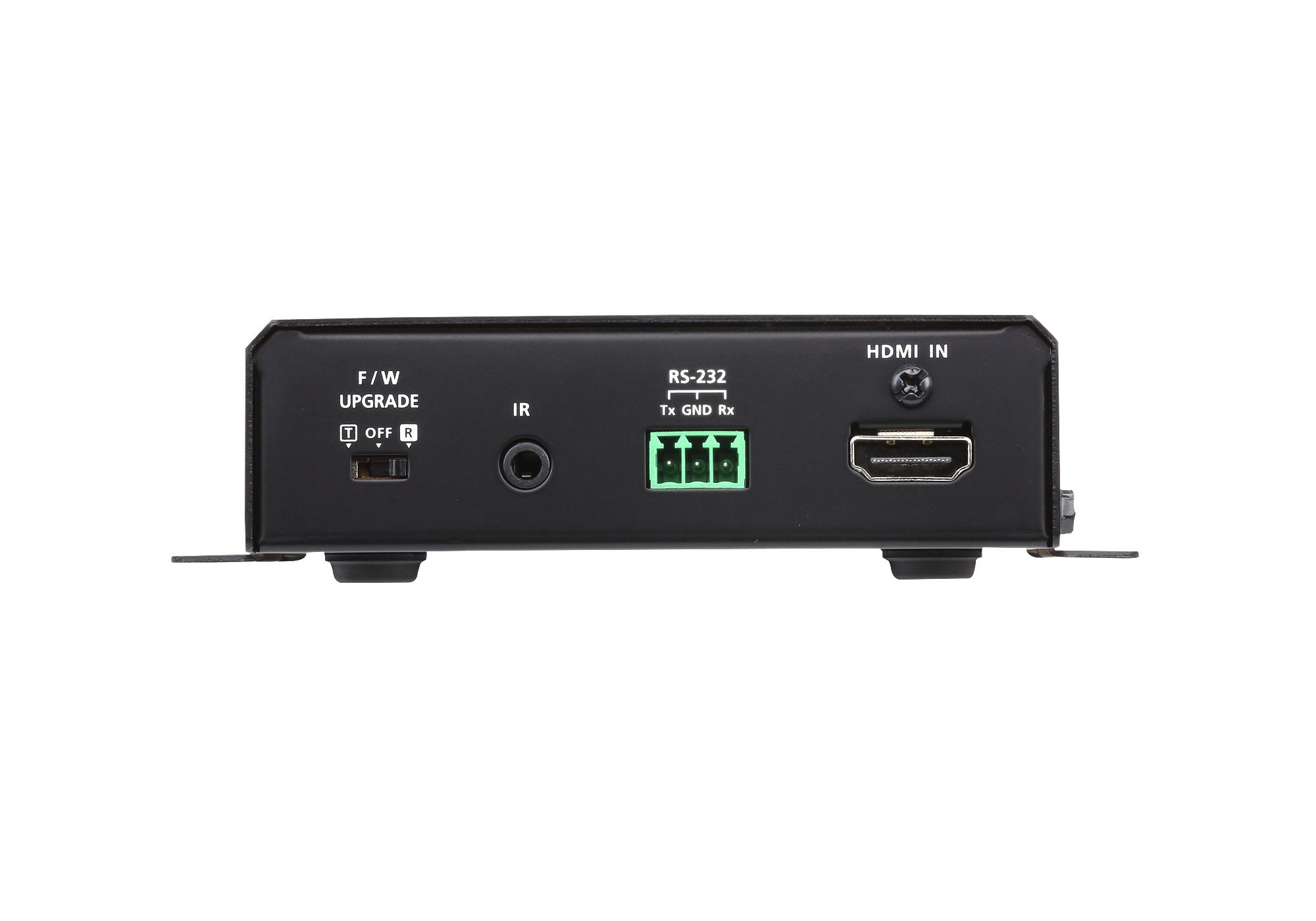

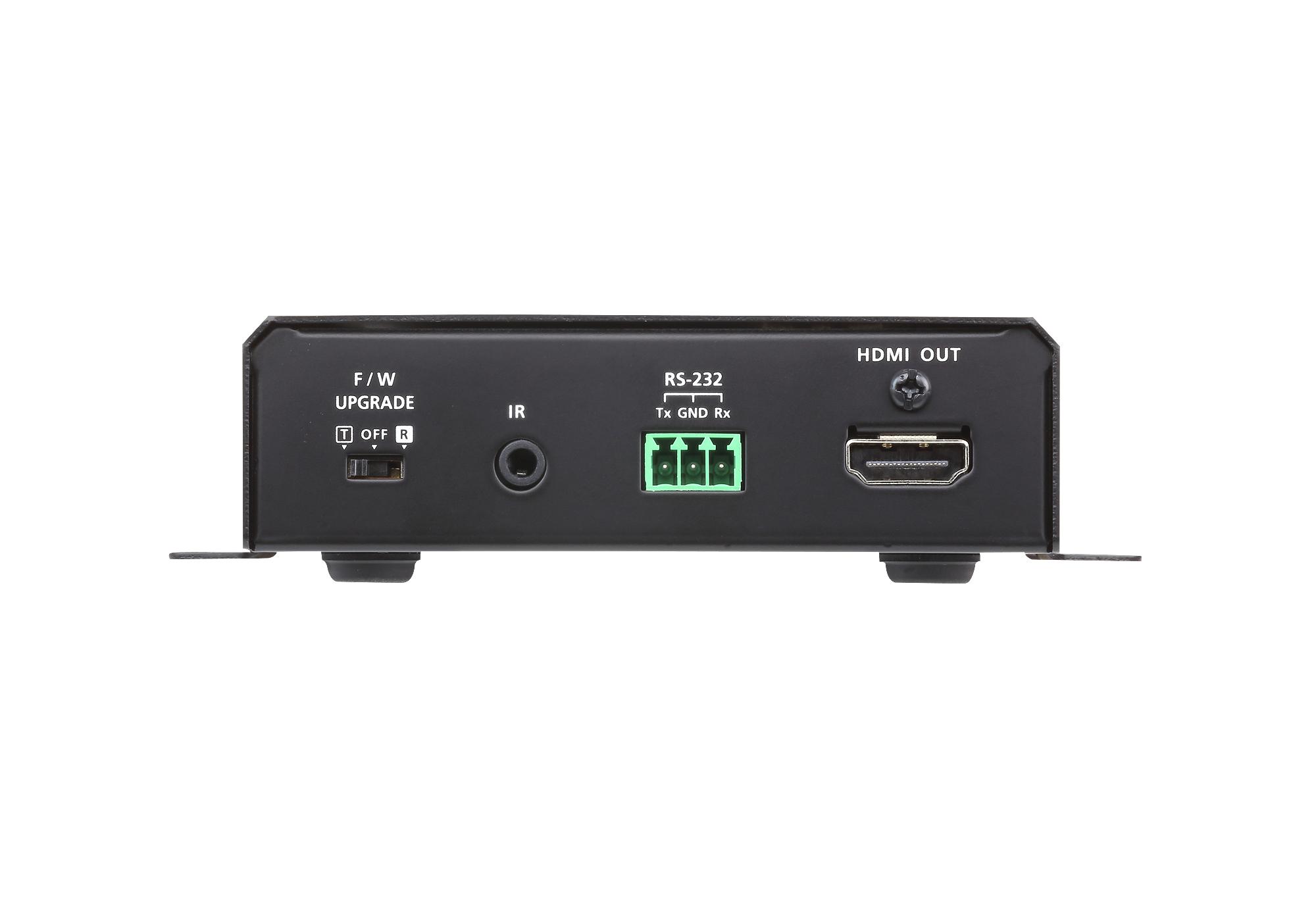

Function VE1812R VE1812T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ώ
Max. Distance N/A 1.8 m
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 Ώ N/A
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)		 HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)		 Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A

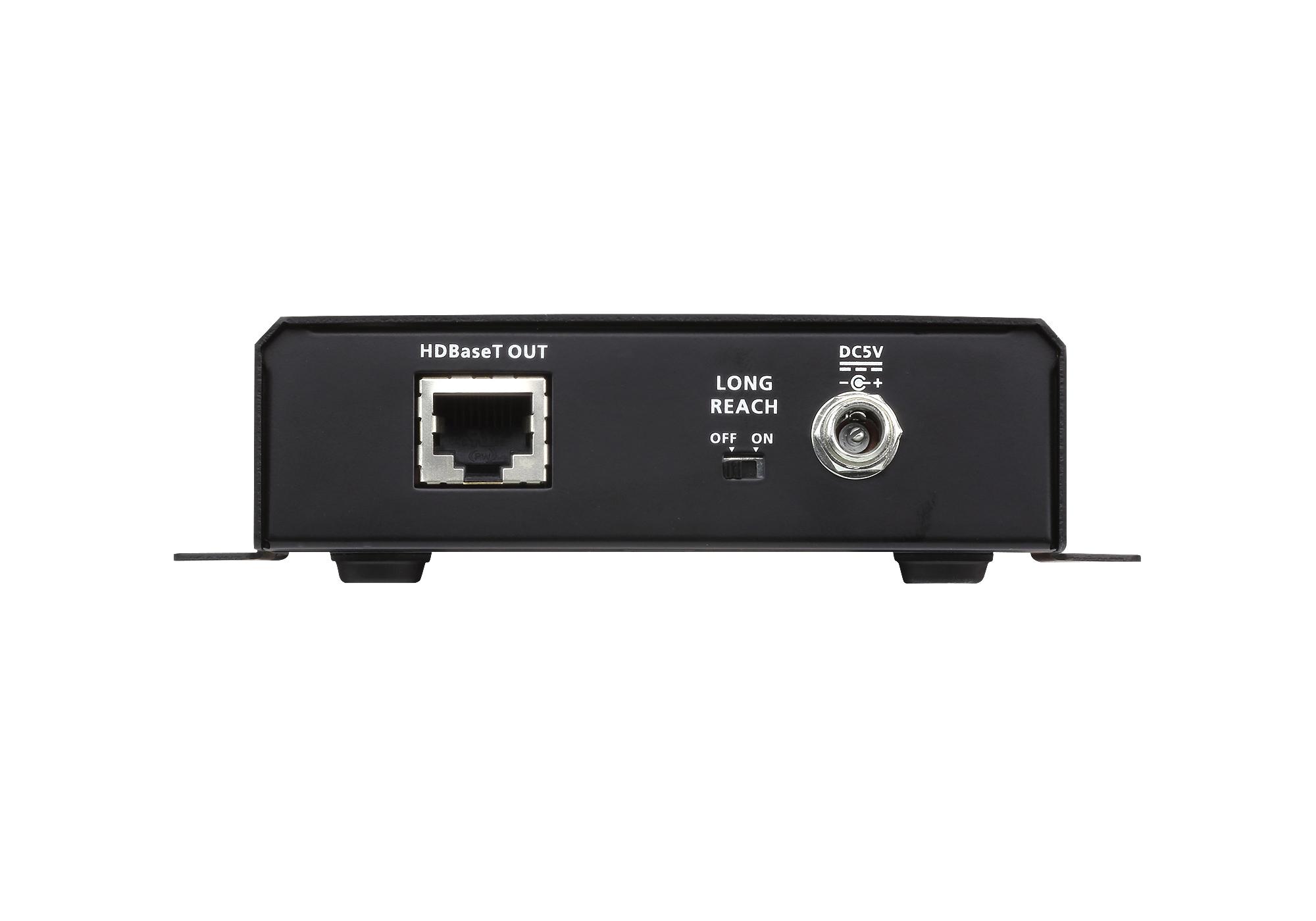

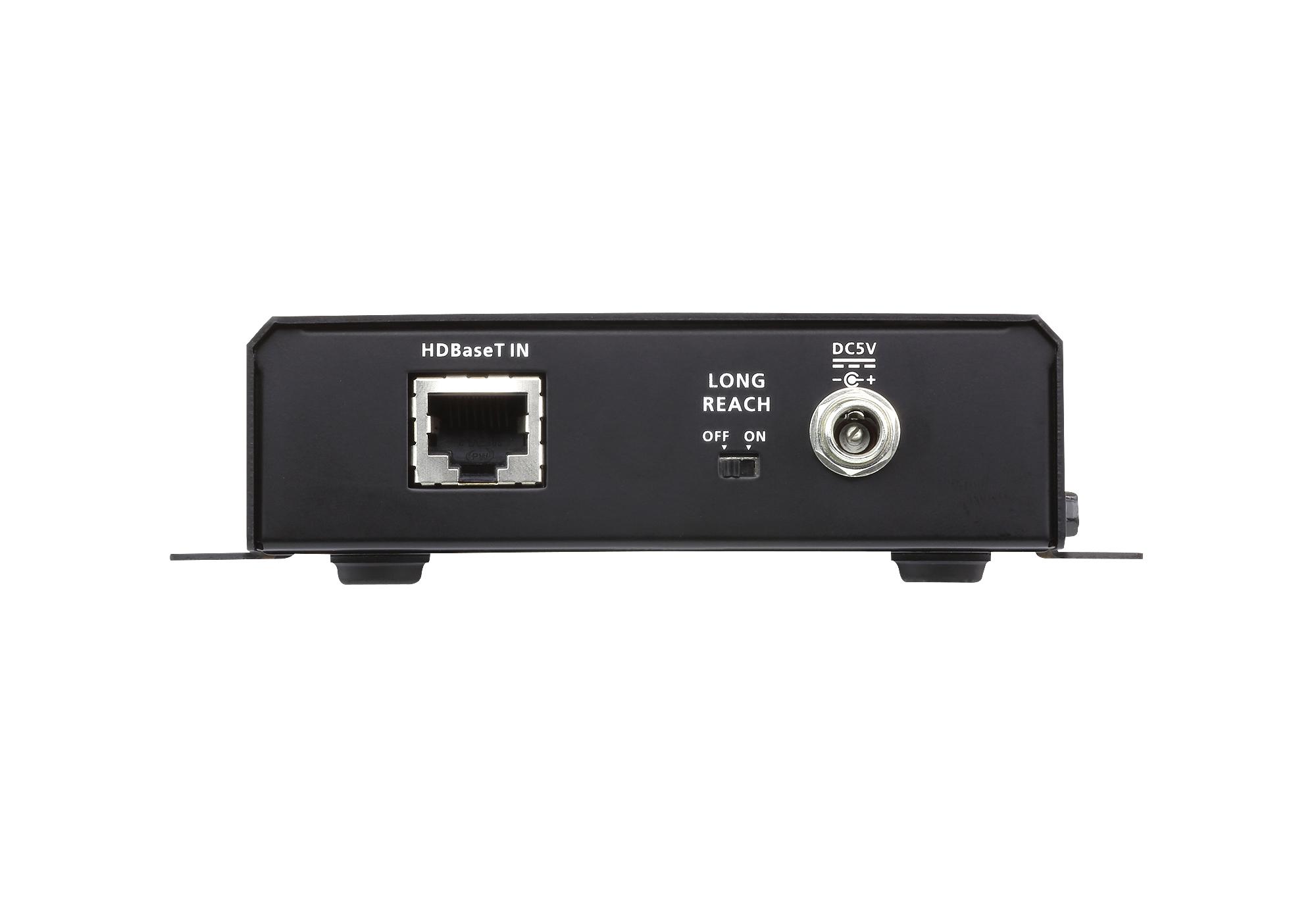

Connectors
Unit To Unit 1 x RJ-45 Female 1 x RJ-45 Female
Power 1 x DC Jack (Black) with locking 1 x DC Jack (Black) with locking
Control
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control		 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR 1 x Mini Stereo Jack Female (Black) 1 x Mini Stereo Jack Female (Black)
Switches
Long Reach Mode Switch 1 x Slide Switch – ON/OFF 1 x Slide Switch – ON/OFF
Firmware Upgrade 1 x Slide Switch – ON/OFF 1 x Slide Switch – ON/OFF
Power Consumption DC 5V, 6.4W BTU
Environmental
Operating Temperature 0 – 40°C 0 – 40°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.45 kg ( 0.99 lb ) 0.47 kg ( 1.04 lb )
Dimensions (L x W x H) with bracket 14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)		 14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket 13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)		 13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

  • 1x VE1812 HDMI HDBaseT Transmitter with POH
  • 1x VE1812 HDMI HDBaseT Receiver with POH
  • 1x Power Adapter
  • 1x IR Transmitter
  • 1x IR Receiver
  • 2x RS-232 Terminal Blocks
  • 1x User Instructions
