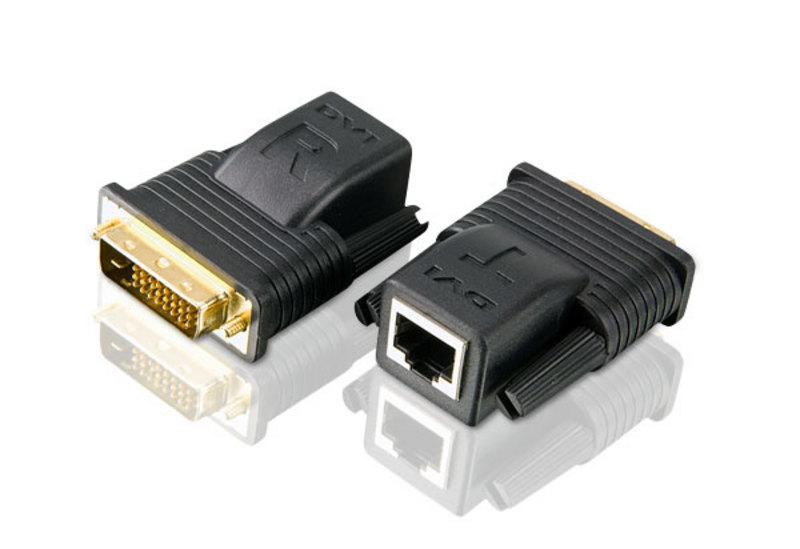

VE066 Aten Mini DVI Over Cat 5 Extender

£79.00 inc VAT

The Aten VE066 mini DVI up to 20m CAT5 extender is HDCP 1.1 compliant with superior video quality up to 1920 x 1200. The VE066 supports LCD screens, Plasma TV and projectors.

Data Sheet



SKU: VE066 Categories: , , , , , , Tags: , , ,

Description

TThe Aten VE066 Mini Cat 5 DVI Extender allows you to increase the distance between your DVI display and DVI source by up to 20 m using only one Cat 5e or Cat 6 cable, providing a convenient way to replace heavy and expensive DVI cables. With hot-plugging support, easily add or remove the VE066 Transmitter connected to the source or the VE066 Receiver connected to the display without having to power down the devices. Compatible with all ATEN DVI switches and DVI splitters, the VE066 Mini Cat 5 DVI Extender is a compact, convenient and economical way to extend your DVI display.

Features

  • Extends the distance between DVI source and DVI display
  • Uses Cat 5e cable to connect the Transmitter and Receiver units
  • Long distance transmission – up to 20 m*
  • HDCP 1.1 Compliant
  • Supports hot-plugging
  • Superior video quality – up to 1920 x 1200
  • Compact housing
  • Compatible with all ATEN DVI switches and DVI splitters
  • Supports LCD Screen, Plasma TV, and projectors
  • Perfect for Home entertainment system, Bank, Surveillance system, Outdoors multimedia display, Airport, Finance institution
  • Smart Video Display – Image quality is optimized based on the available resolution of the output device
  • Non-Powered* Using different source devices / display devices will result in varying results. For best results, we recommend using high quality cables

Specifications

Mini Cat 5 DVI Extender



Function VE066R VE066T
Video Input
Interfaces N/A 1 x DVI-D Male (Gold)
Impedance N/A 100 Ώ
Video Output
Interfaces 1 x DVI-D Male (Gold) N/A
Impedance 100 Ώ N/A
Video
Max. Data Rate 4.95 Gbps (1.65 Gbps Per Lane) 4.95 Gbps (1.65 Gbps Per Lane)
Max. Pixel Clock 165 MHz 165 MHz
Compliance HDCP Compatible HDCP Compatible
Max. Resolutions / Distance Up to 1920 x 1200@20m Up to 1920 x 1200@20m
Environmental
Operating Temperature 0 – 50°C 0 – 50°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing 0 – 80% RH, Non-Condensing
Physical Properties
Housing Plastic Plastic
Weight 0.05 kg ( 0.11 lb ) 0.05 kg ( 0.11 lb )
Dimensions (L x W x H) 5.66 x 4.07 x 2.15 cm
(2.23 x 1.6 x 0.85 in.)		 5.66 x 4.07 x 2.15 cm
(2.23 x 1.6 x 0.85 in.)
Carton Lot 20 pcs 20 pcs

Package Contents

  • 1x VE066T Mini Cat 5 DVI Extender (Transmitter)
  • 1x VE066R Mini Cat 5 DVI Extender (Receiver)
  • 1x User Instructions
