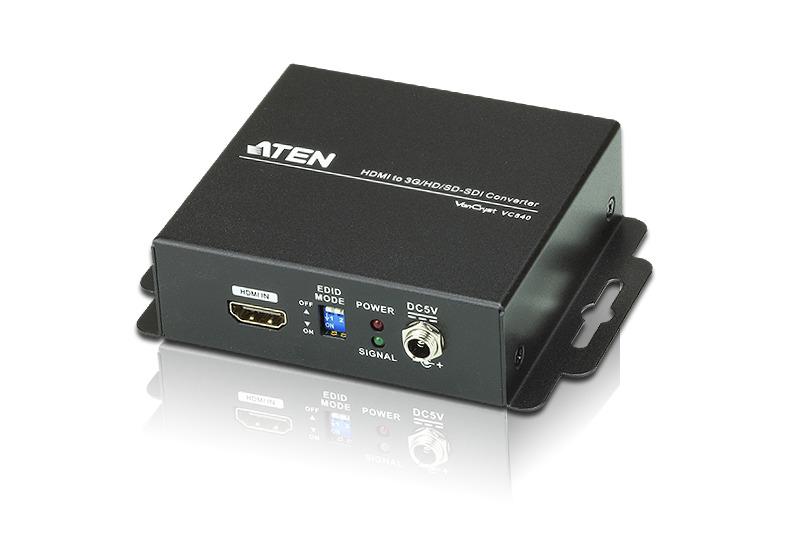

VC840 Aten HDMI to 3G/HD/SD-SDI Converter

£231.60 inc VAT

Aten VC840 converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals and supports additional analog stereo audio and coaxial digital audio. It Features automatic detection of 3G / HD ?SD-SDI signals, supports 8 audio channels @ 48kHz rate and an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6.

Data Sheet

SKU: VC840 Categories: , Tags: ,

Description

The VC840 HDMI to 3G/HD/SD SDI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC840 provides 2 low jitter SDI outputs for dual display. The VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

Features

  • Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals
  • Supports additional analog stereo audio and coaxial digital audio
  • HDMI (Deep Color)
  • LED indication of power and signal status
  • Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
  • Supported SDI formats:
    • SD-SDI (SMPTE 259M, up to 270Mbps)
    • HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
    • 3G-SDI (SMPTE 424M, 425M level A, up to 2.97Gbps)
  • Video Support:
    525i@59.96, 625i@50
    720p@50/59.94/60
    1080i@50/59.94/60
    1080p@23.97/24/25/29.97/30/50/59.94/60
    2048 x 1080
  • Supports 8 audio channels @ 48kHz rate
  • Offers 2 low-jitter SDI outputs for dual display
  • Features automatic detection of 3G/HD/SD-SDI signals
  • Reclocking SDI signals for cascading and thus longer transmission
  • Locking power connector for secure communications
  • Selectable EDID settings and EDID learning mode

Specifications

Video Input

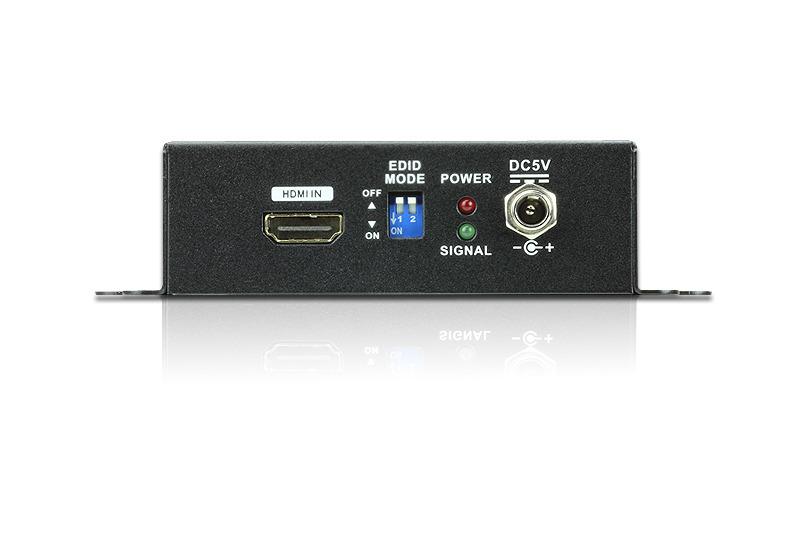

Interface 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video Output

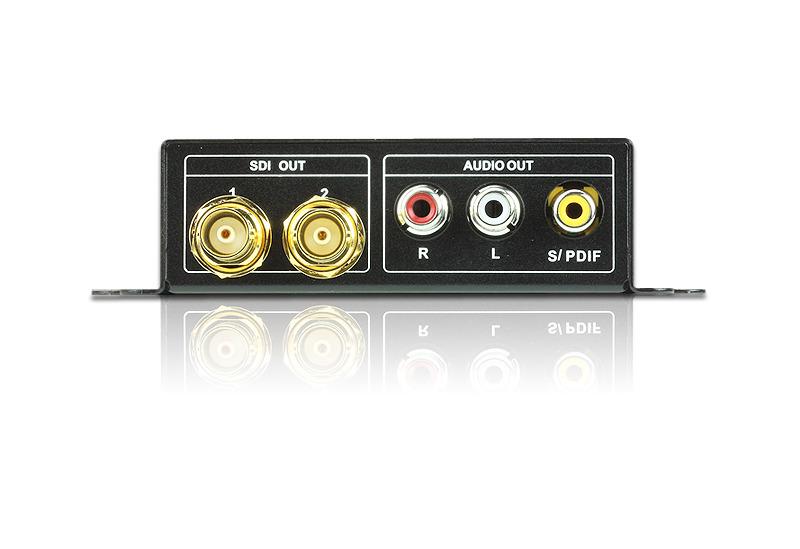

Interface 2 x BNC  (Gold)
Impedance 75 Ώ
Video
Max. Data Rate 2.97  Gbps
Max. Pixel Clock 148.5 MHz
Supported Resolutions NTSC@59.96Hz, PAL@50 Hz;
720p@50/59.94/60 Hz;
1080i@50/59.94/60 Hz;
1080p@23.97/24/25/29.97/30/50/59.94/60 Hz
Max. Distance 90m  (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)
Audio
Output Analog: 2 x RCA  (Red/White)
Digital: 1 x RCA  (Yellow)
SDI Formats SD-SDI (SMPTE 259M, up to 270  Mbps)
HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
3G-SDI (SMPTE 424M, 425M level  A, up to 2.97  Gbps)
EDID Settings EDID Mode: Learn
Power
Connectors 1 x DC Jack
Consumption 5 VDC, 3.5W
Environmental
Operating Temperature 0 – 40 ºC
Storage Temperature -20 – 60 ºC
Humidity 20 – 90% RH,  Non-Condensing
Physical Properties
Housing Metal
Weight 0.29 kg
Dimensions (L x W x H) 12.20 x 10.70 x 3.04 cm

Package Contents

  • 1x VC840 HDMI to 3G/HD/SD-SDI Converter
  • 1x Power Adapter
  • 1x User Instructions
