VC480 Aten 3G/HD/SD-SDI to HDMI Converter

£275.00 inc VAT

Aten VC480 converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals and supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6. It supports 8 audio channels @48KHz rate and features automatic detection of 3G/HD/SD-SDI signals.

Data Sheet

SKU: VC480 Categories: , , Tags: ,

Description

The VC480 3G/HD/SD SDI to HDMI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC480 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

Features

  • Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
  • Supports additional analog stereo audio and coaxial digital audio
  • HDMI (Deep Color)
  • LED indication of power and signal status
  • Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
  • Supported SDI formats:
    • SD-SDI (SMPTE 259M, up to 270Mbps)
    • HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
    • 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)
  • Video Support:
    525i@59.96, 625i@50
    720p@23.98/24/25/29.94/30/50/59.94/60
    1080i@50/59.94/60
    1080p@23.97/24/25/29.97/30/50/59.94/60
    2048 x 1080
  • Buffered loop-through output provides extended monitoring
  • Supports 8 audio channels @48kHz rate
  • Features automatic detection of 3G/HD/SD-SDI signals
  • Reclocking SDI signals for cascading and thus longer transmission
  • Locking power connector for secure communications

Specifications

Video Input

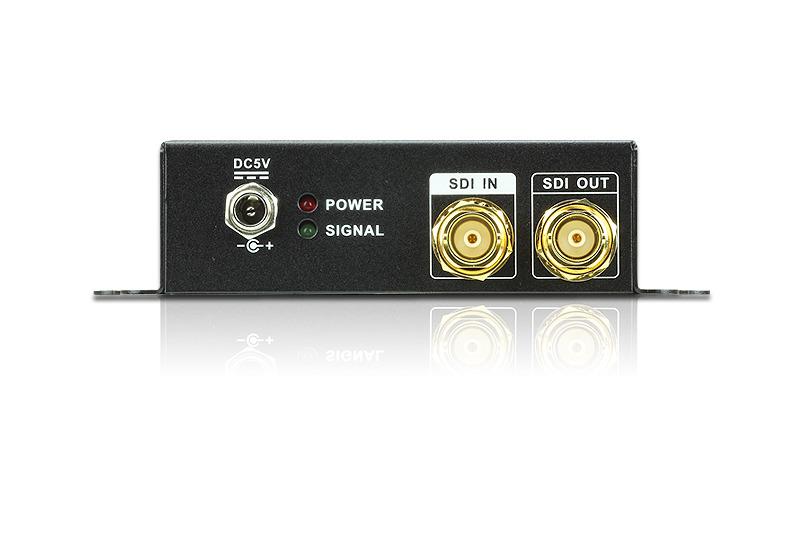

Interface 1 x BNC  (Gold)
Impedance 75 Ώ
Video Output

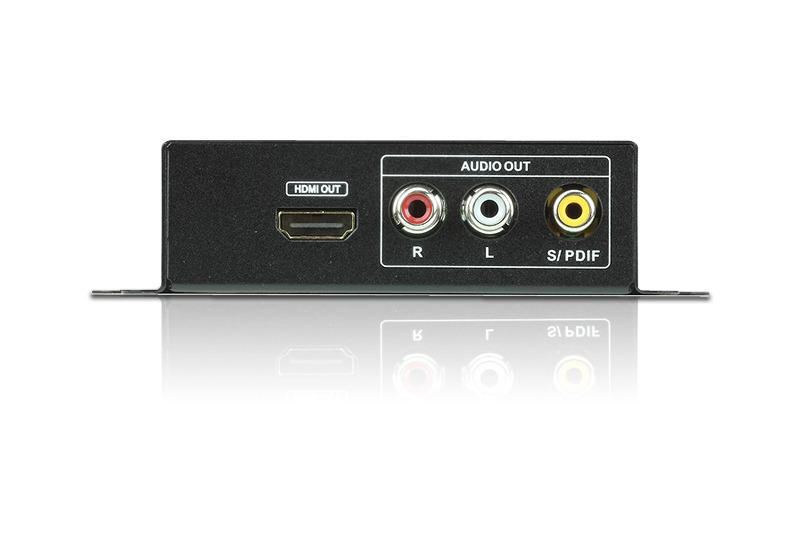

Interface 1 x HDMI Type A Female (Black);

1 x BNC  (Gold)
Impedance 100 Ώ
Video
Max. Data Rate 2.97  Gbps
Max. Pixel Clock 148.5 MHz
Supported Resolutions NTSC@59.96Hz,  PAL@50 Hz;

720p@50/59.94/60 Hz;

1080i@50/59.94/60 Hz;

1080p@23.97/24/25/29.97/30/50/59.94/60 Hz
Max. Distance 90m  (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)
Audio
Output Analog: 2 x RCA  (Red/White)

Digital: 1 x RCA  (Yellow)
SDI Formats SD-SDI (SMPTE 259M, up to 270  Mbps)

HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)

3G-SDI (SMPTE 424M, 425M level  A, up to 2.97  Gbps)
Power
Connectors 1 x DC Jack
Consumption 5 VDC, 10W
Environmental
Operating Temperature 0 – 40 ºC
Storage Temperature -20 – 60 ºC
Humidity 20 – 90% RH,  Non-Condensing
Physical Properties
Housing Metal
Weight 0.29 kg
Dimensions (L x W x H) 12.30 x 10.87 x 3.05 cm

Package Contents

  • 1x VC480 3G/HD/SD-SDI to HDMI Converter
  • 1x Power Adapter
  • 1x User Instructions
