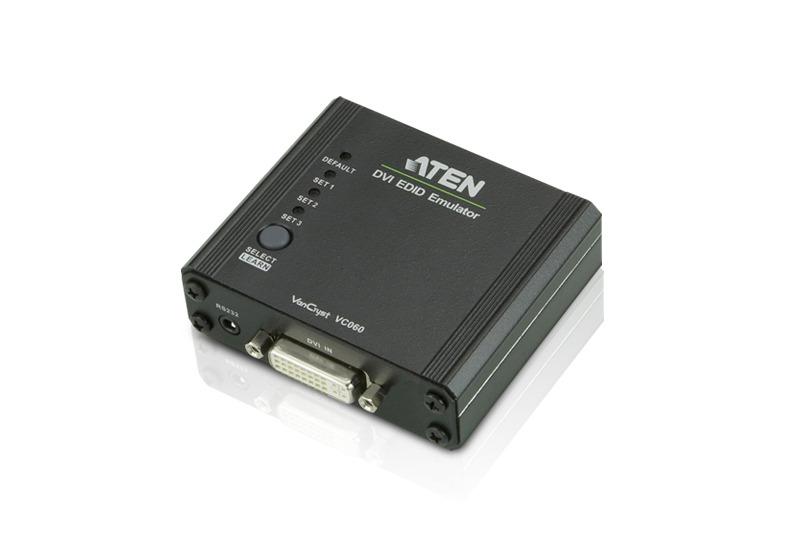

VC060 Aten DVI EDID Emulator

£99.00 inc VAT

Aten VC060  DVI Emulator is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a DVI source device to efficiently optimize video resolution. It features superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200) and an EDID wizard that allows a user an easy way to manage EDID settings and EDID mode selection: default, learning and programming. The VC060 supports wide screen formats and hot-plugging.

Data Sheet

Description

The ATEN VC060 is a DVI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a DVI source device to efficiently optimize video resolution.

The ATEN DVI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

  • Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
  • EDID Wizard – allows a user an easy way to manage EDID settings
  • EDID mode selection – Default, Learning , Programming
  • Automatically manages EDID communication between connected devices
  • Signaling rates up to 2.25 Gbits in support of 1080p display
  • LED indication of video source devices
  • Supports wide screen
  • Supports hot-plugging
  • Non-Powered *
    * If the video source is not receiving enough power an external power cord should be connected.
Video Input
Interface 1 x DVI-I Female (White)
Impedance 100 Ώ

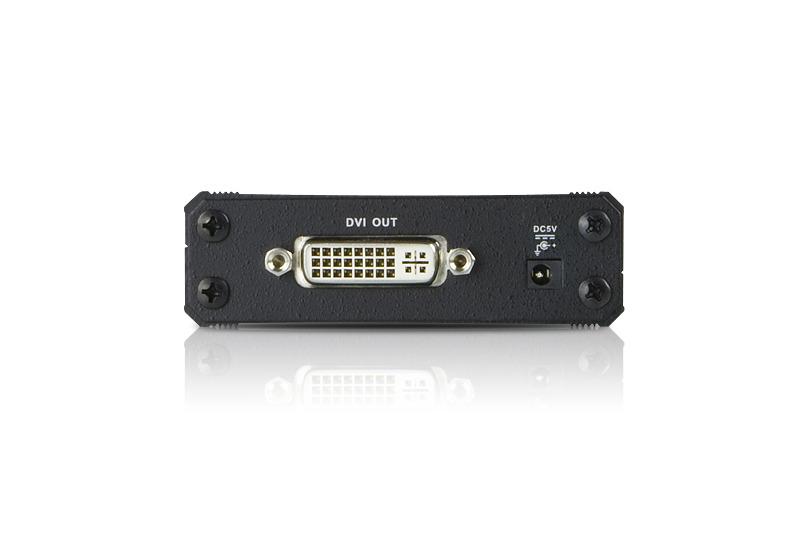

Video Output
Interface 1 x DVI-I Female (White)
Impedance 100 Ώ
EDID Settings EDID Mode: Default / Learn / Customized (EDID Wizard support)
Power
Connectors 1 x DC Jack
Consumption 5 VDC, 0.15W
Environmental
Operating Temperature 0 – 50 ºC
Storage Temperature -20 – 60 ºC
Humidity 0 – 80% RH,  Non-Condensing
Physical Properties
Housing Metal
Weight 0.15 kg
Dimensions (L x W x H) 7.90 x 7.76 x 2.45 cm
  • 1x VC060 DVI Emulator
  • 1x RS-232 Configuration Cable
  • 1x USB to DC Power Cord
  • 1x User Instructions
