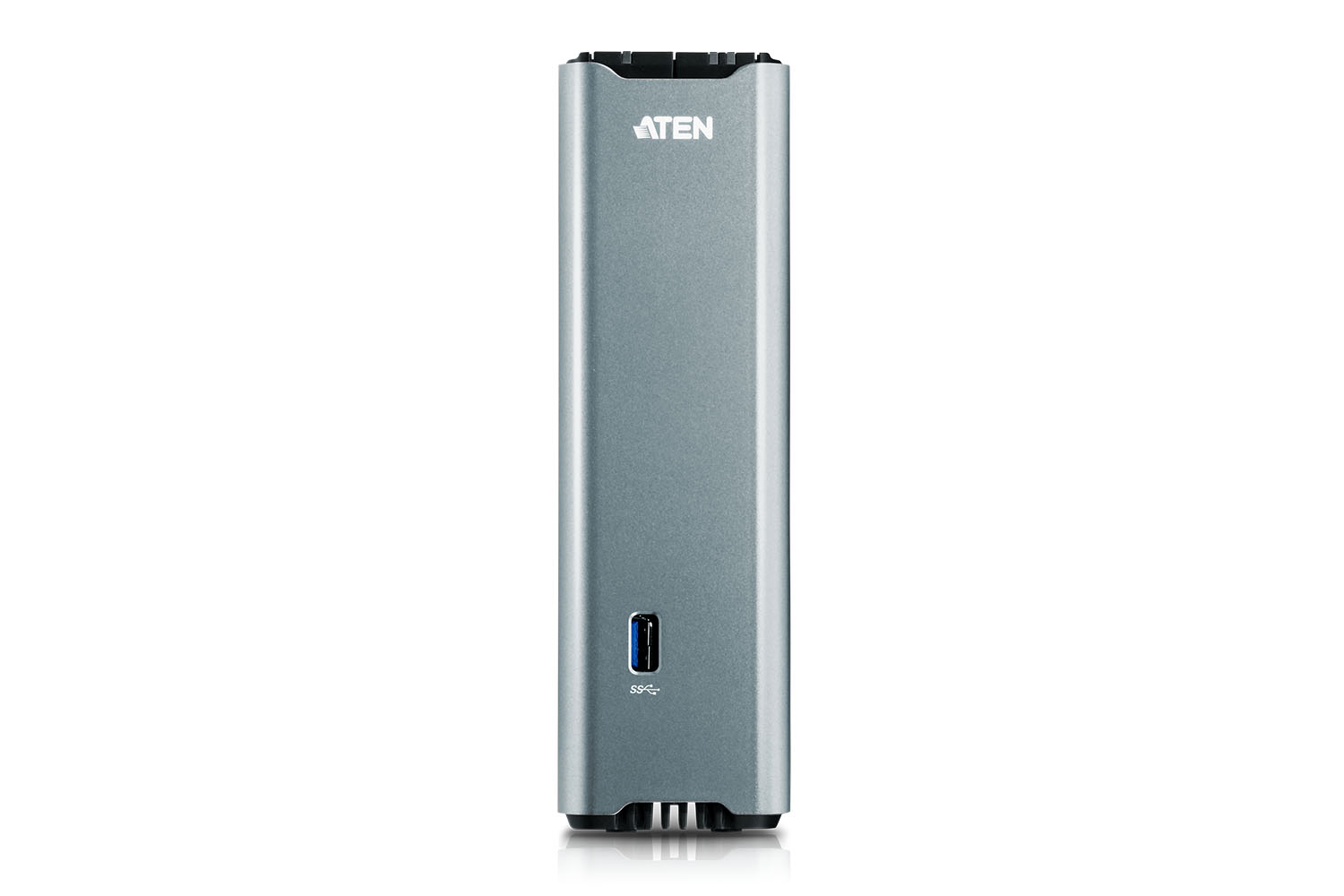

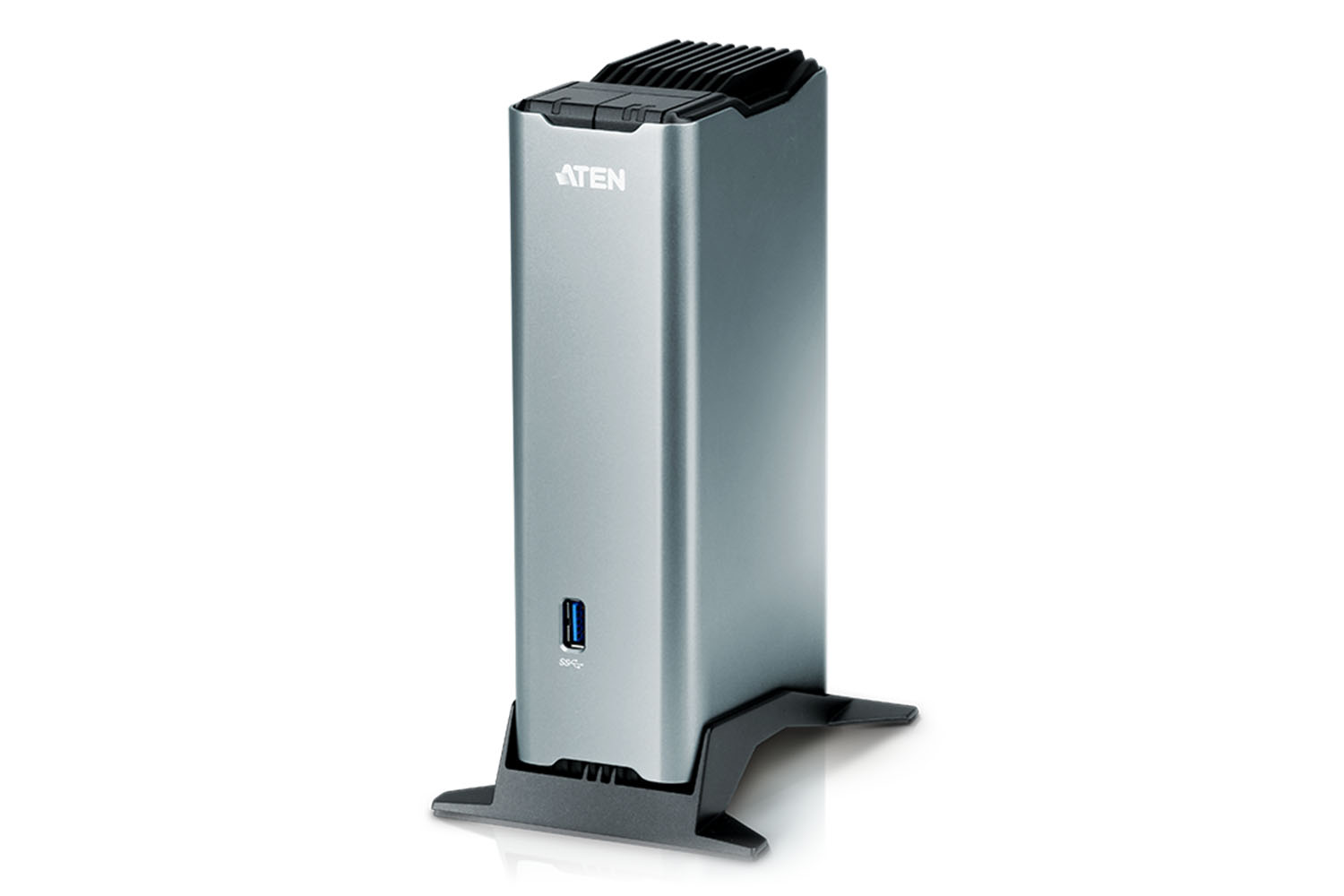

US7220 Aten 2 Port Thunderbolt 2 KVM Sharing Switch

The Aten US7220 2-port Thunderbolt 2.0 compliant KVM sharing switch is the first in the market is a dual-computer docking station with full KVM functionality for your workspace. You can share Thunderbolt devices, a dual-monitor setup and USB peripherals through a single cable, directly to two computers. The US7220 supports three USB 3.1 Gen 1 ports with data transfer rates up to 5 Gbps, two USB 2.0 ports with data transfer rates up to 480 Mbps, high-definition audio signals with Dolby and DTS pass-through via Mini TOSLINK; and 2.1 channel audio via 3.5 mm audio cable, Analog/Digital audio line-in and line-out, HDMI 1.4b with 4K (UHD) resolution, DisplayPort 1.2 with 4K (UHD) resolution and eSATA port for storage devices.

Data Sheet

Manual

SKU: US7220 Categories: 1 Console KVM Switch, 2-Port KVM Switch, Aten, Aten KVM Solutions, Aten KVM Switches, DisplayPort KVM Switches, KVM Switch with Audio, KVM Switch with Peripheral Sharer USB 2.0 Hub, Thunderbolt KVM Switch Tags: 4K, displayport, Thunderbolt, USB 3.0, USB Peripheral Sharer, with audio

Description

Description

The US7220 Thunderbolt 2 Sharing Switch is a dual-computer docking station with full KVM functionality for your workspace. You can share Thunderbolt devices, a dual-monitor setup and USB peripherals through a single cable, directly to two computers.

The US7220 enables two Thunderbolt 2- enabled computers to share peripherals with ultra-high 20 Gbps data transfer rates. As a KVM sharing switch it allows you to easily switch the keyboard, video, mouse and peripherals between two computers with the push of a button. With the ability to daisy-chain up to five Thunderbolt devices, the US7220 connects up to 11 peripherals including Thunderbolt monitors and video capture devices; plus USB drives, printers, high-definition cameras, keyboards, mice and more.

The ATEN Thunderbolt 2 Sharing Switch is the ideal choice for those who want the flexibility of laptop computing – with the performance, sharing and high-definition/dual-monitor capabilities of a full workstation.

Diagram

Features

Thunderbolt 2.0 compliant with data transfer rates up to 20 Gbps
Connect 11 devices to a laptop through a single Thunderbolt cable*
Two Thunderbolt ports connect two Thunderbolt hosts
One Thunderbolt port connects a Thunderbolt device and daisy-chains up to 5 additional devices
Gigabit Ethernet port
HDMI port supports an additional HDMI display
Supports three USB 3.1 Gen 1 ports with data transfer rates up to 5 Gbps
Two USB 2.0 ports with data transfer rates up to 480 Mbps
Supports high-definition audio signals with Dolby and DTS pass-through via Mini TOSLINK; and 2.1 channel audio via 3.5 mm audio cable
Analog/Digital audio line-in and line-out
Supports HDMI 1.4b with 4K (UHD) resolution
Supports DisplayPort 1.2 with 4K (UHD) resolution
eSATA port for storage devices
Note: Additional Thunderbolt cable sold separately.

Specifications

Computer Connections	2
Device Connections	1 Direct; 5 Max. (via Daisy chain mode)

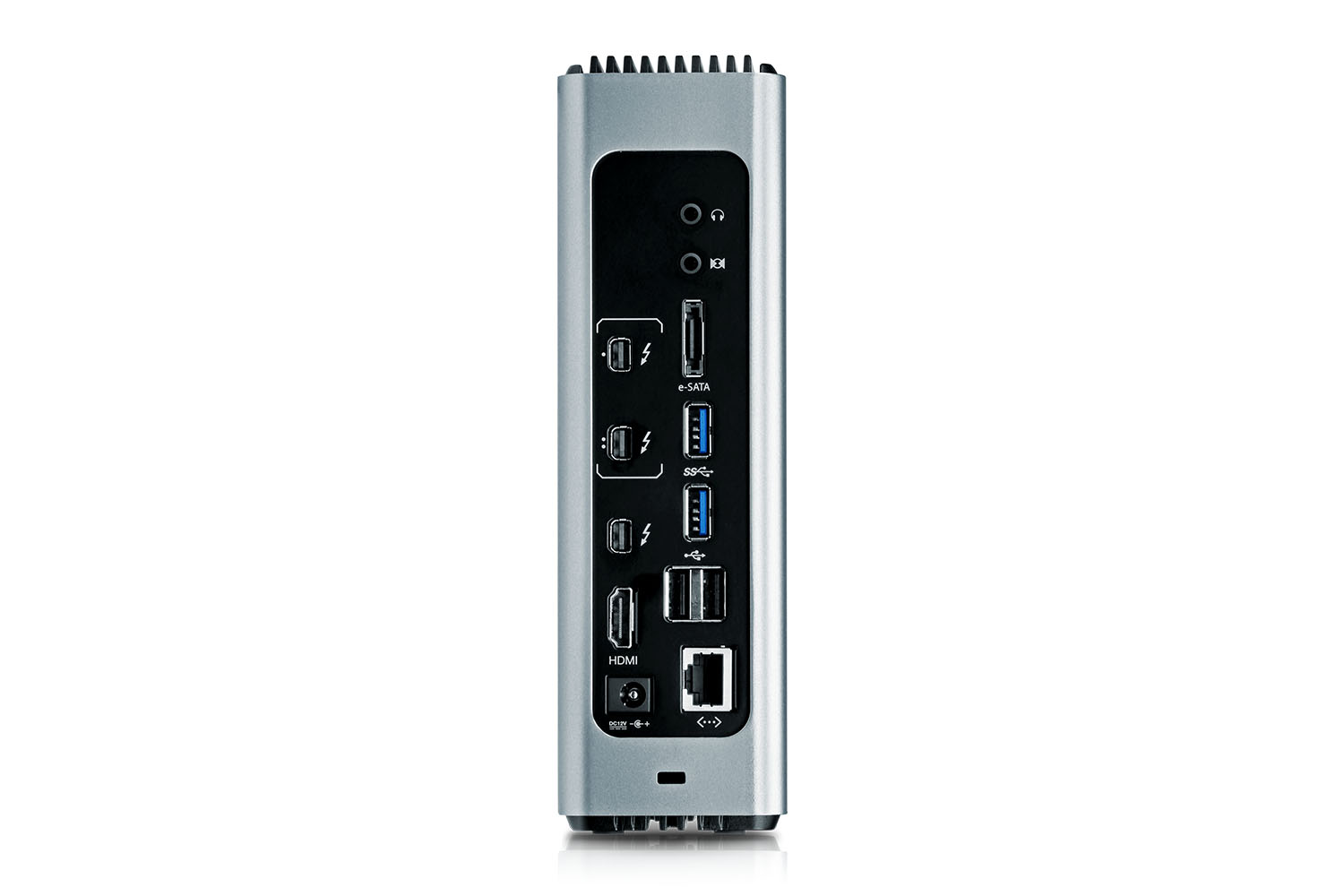

Connectors
Computer	2 x Thunderbolt 2.0 Female (Black)
Device	1 x Thunderbolt 2.0 Female (Black) 3 x USB3.1 Gen1 Type A Female (Blue) 2 x USB2.0 Type A Female (Black) 1 x E-SATA Female (Black)
LAN Ports	1 x Gigabit Ethernet Female (Black)
Audio Inputs	1 x Stereo / Mini Toslink Jack Female (Black)
Audio Outputs	1 x Stereo / Mini Toslink Jack Female (Black)
Power Jack	1
Video Output	1 x HDMI Female (Black) 1 x Thunderbolt / Mini DisplayPort Female*
Port Selection	Port selection button x2
LEDs
Selected	2
Video Resolution	Single View: Mini DisplayPort / Thunderbolt – 38402160@60 HDMI – 38402160@30Dual View: Thunderbolt – 38402160@60 HDMI – 38402160@30The US7220 supports either HDMI or Mini DisplayPort, but not both.
Power
Consumption	DC12V , 90W
Package Contents	1 x 1m Thunderbolt 2.0 Cable 1 x Power Adapter 1 x Vertical Stand
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Aluminum
Weight	0.78 kg ( 1.72 lb )
Dimensions (L x W x H)	5.70 x 9.75 x 19.19 cm (2.24 x 3.84 x 7.56 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
