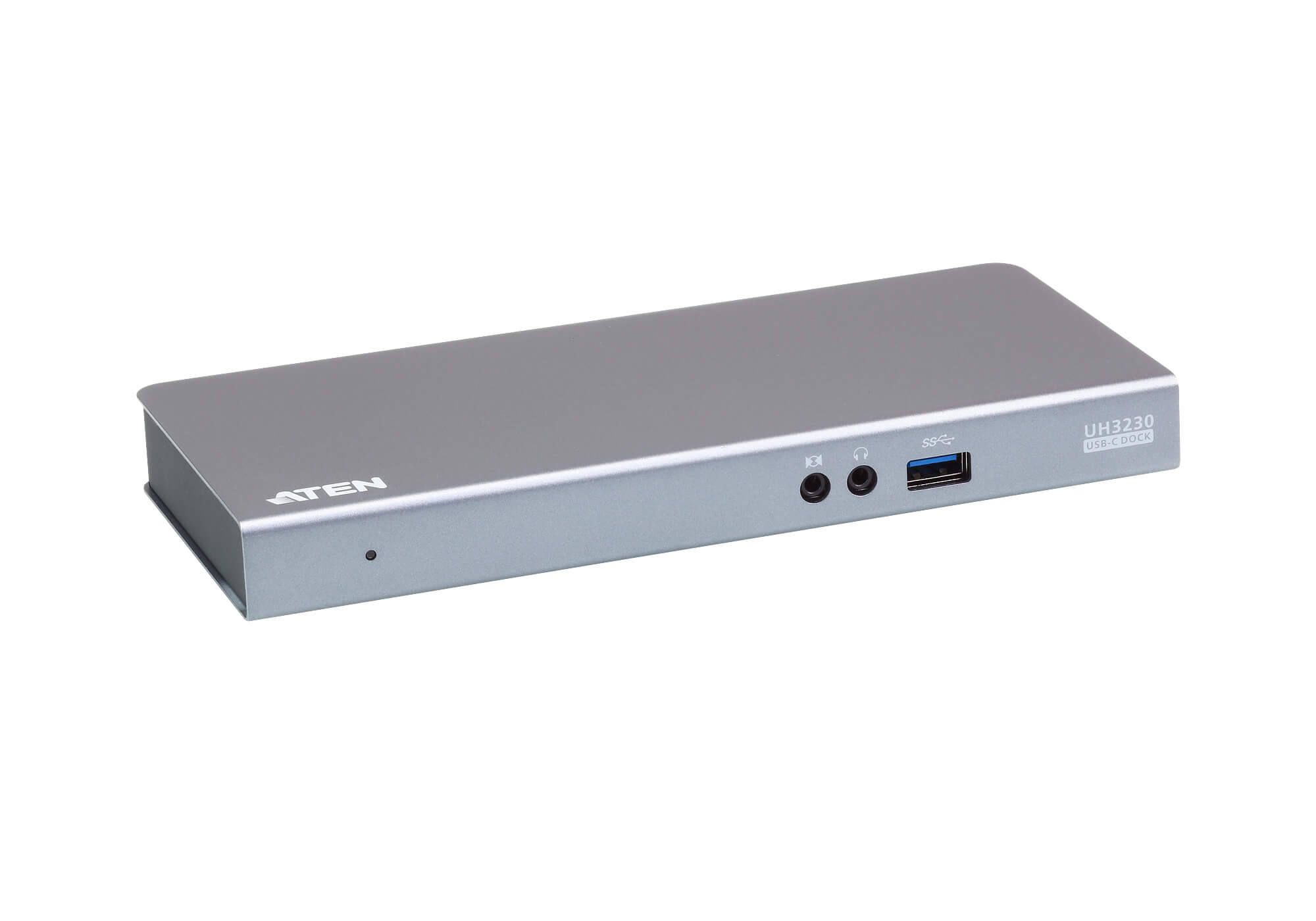

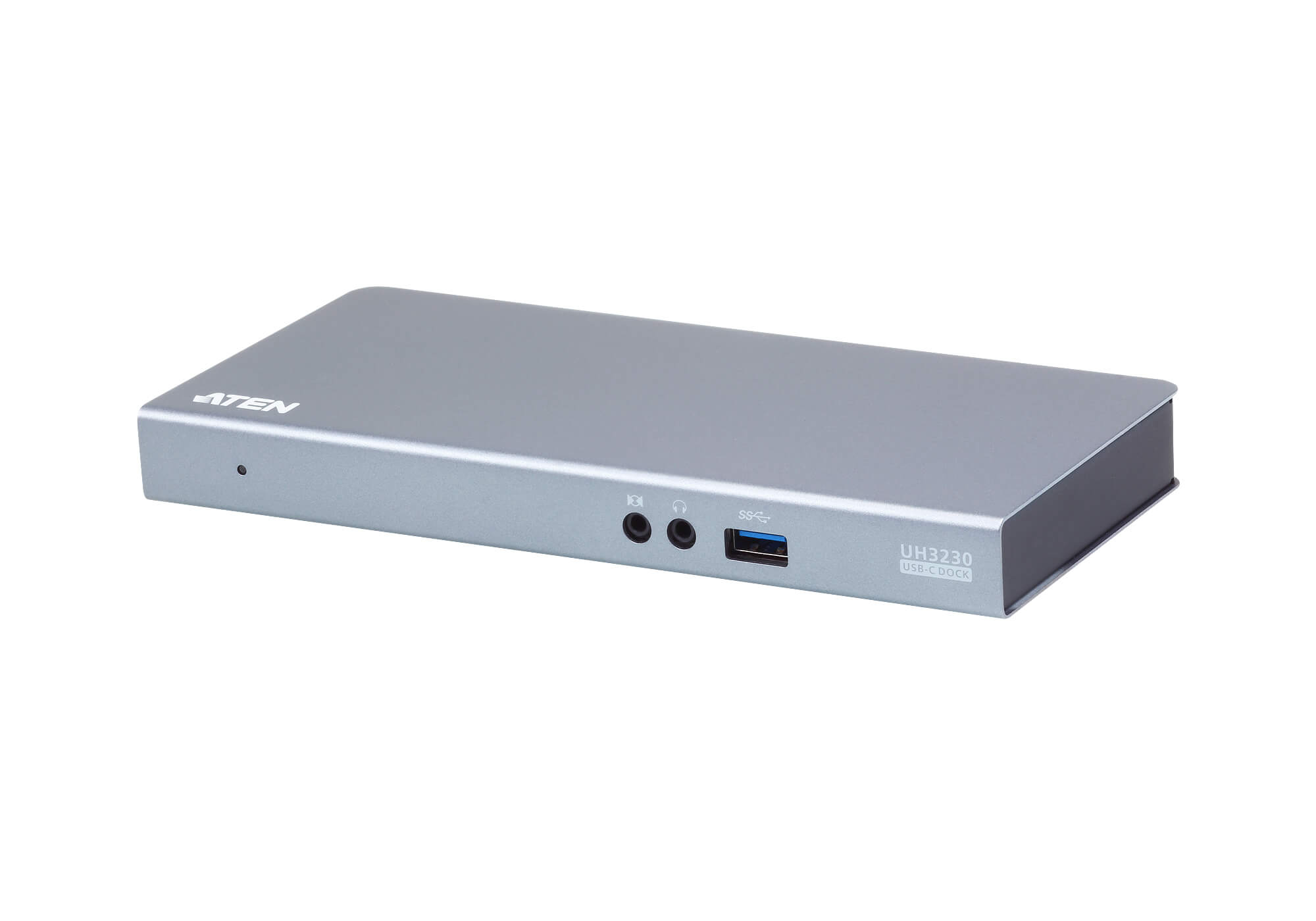

UH3230 Aten USB-C Multiport Dock with Power Charging

£219.00 inc VAT

The Aten UH3230 USB-C Multiport Dock with power charging allows you to connect USB-C embedded computer to up to 8 peripheral ports that include a USB-C, Gigabit LAN, DisplayPort with Multi-Stream Transport, HDMI, audio and three USB 3.1 Gen 1 ports – through a single USB-C cable. It supports HDMI 2.0 and DisplayPort 1.2 with 4K (UHD) resolution, analogue audio line-in and line-out, Gigabit LAN ans dual monitor in mirror and extended mode.

Data Sheet

Manual

SKU: UH3230 Categories: , , , Tags: , , , ,

Description

The UH3230 USB-C Multiport Dock connects a USB-C embedded computer to up to 8 peripheral ports that include a USB-C, Gigabit LAN, DisplayPort with Multi-Stream Transport, HDMI, audio and three USB 3.1 Gen 1 ports – through a single USB-C cable. The UH3230 allows your laptop to quickly dock and perform like a desktop computer. This multiport dock also supports USB-C Power Delivery 2.0, which means the UH3230 can provide power to matched USB-C laptops with PD Profile specifications of 20V/3A, 20V/1.8A, 12V/3A, and 5V/3A.

Features

banner

images

Turn your Laptop into a Multitasking Workstation

The UH3230 connects all the devices you have ever wanted to transform your everyday USB-C or Thunderbolt™ 3 laptop into a more advanced desktop computer – in an instant.

There’s no need to carry or reconnect multiple cables every time you return to your desk, which means you can spend more time working or playing and less time concerned with setup.

Expand with a Further 8 Ports and Connections

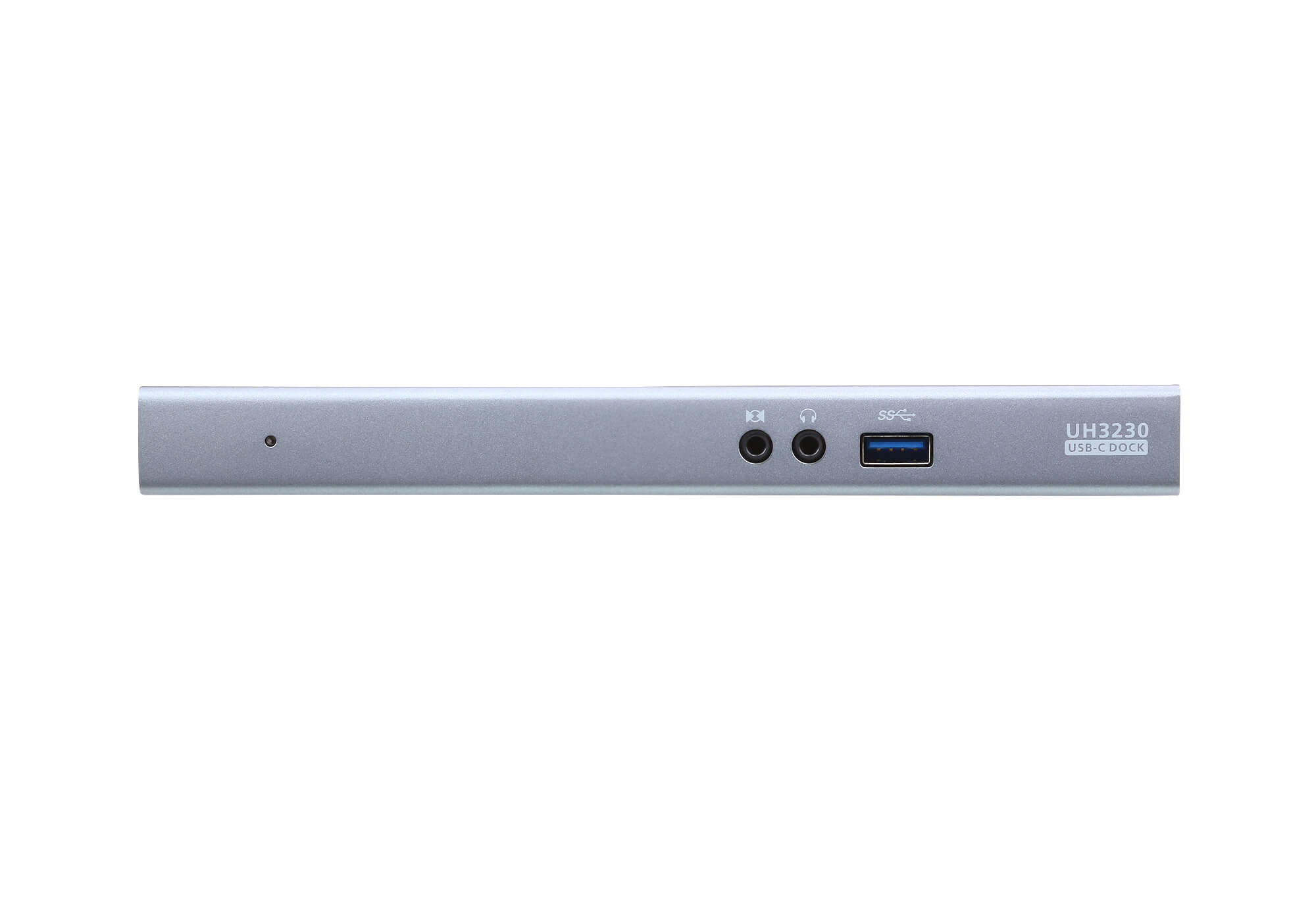

The UH3230 provides eight peripheral ports – USB-C, Gigabit LAN, DisplayPort with Multi-Stream Transport, HDMI, audio and three USB 3.1 Gen 1 ports – through a single USB-C cable. The front panel USB 3.1 port is ideal for high speed data transfers and quickly charging portable devices.

The UH3230 supports single display up to 4K resolutions via DisplayPort or HDMI and dual monitors in mirror and extended mode at resolutions up to 1080p.

images
images

Charge your Laptop while Increasing Productivity

Supports USB-C Power Delivery 2.0, which provides power to matched USB-C laptops with PD profile specifications of 20V/3A, 20V/1.8A, 12V/3A, and 5V/3A.

Full Features :

  • Connect up to 8 devices to a laptop through a single USB-C cable
  • Supports HDMI 2.0 with 4K (UHD) resolutions*
  • Supports DisplayPort 1.2 with 4K (UHD) resolutions*
  • Analog audio line-in and line-out
  • Gigabit LAN port
  • Supports dual monitors in mirror and extended mode**
  • USB 3.1 Gen 1 front panel port supports Fast-Charging
  • Supports USB Power Delivery 2.0 for charging a laptop via USB-C port; supported power profiles include 20V/3A, 20V/1.8A, 12V/3A, and 5V/3A.

* For video output to work through a USB-C port, it must support DP Alt Mode. For Dual-View to work, a computer’s graphics card must support MST technology.
** Mac computers only support single-view output.

Specifications

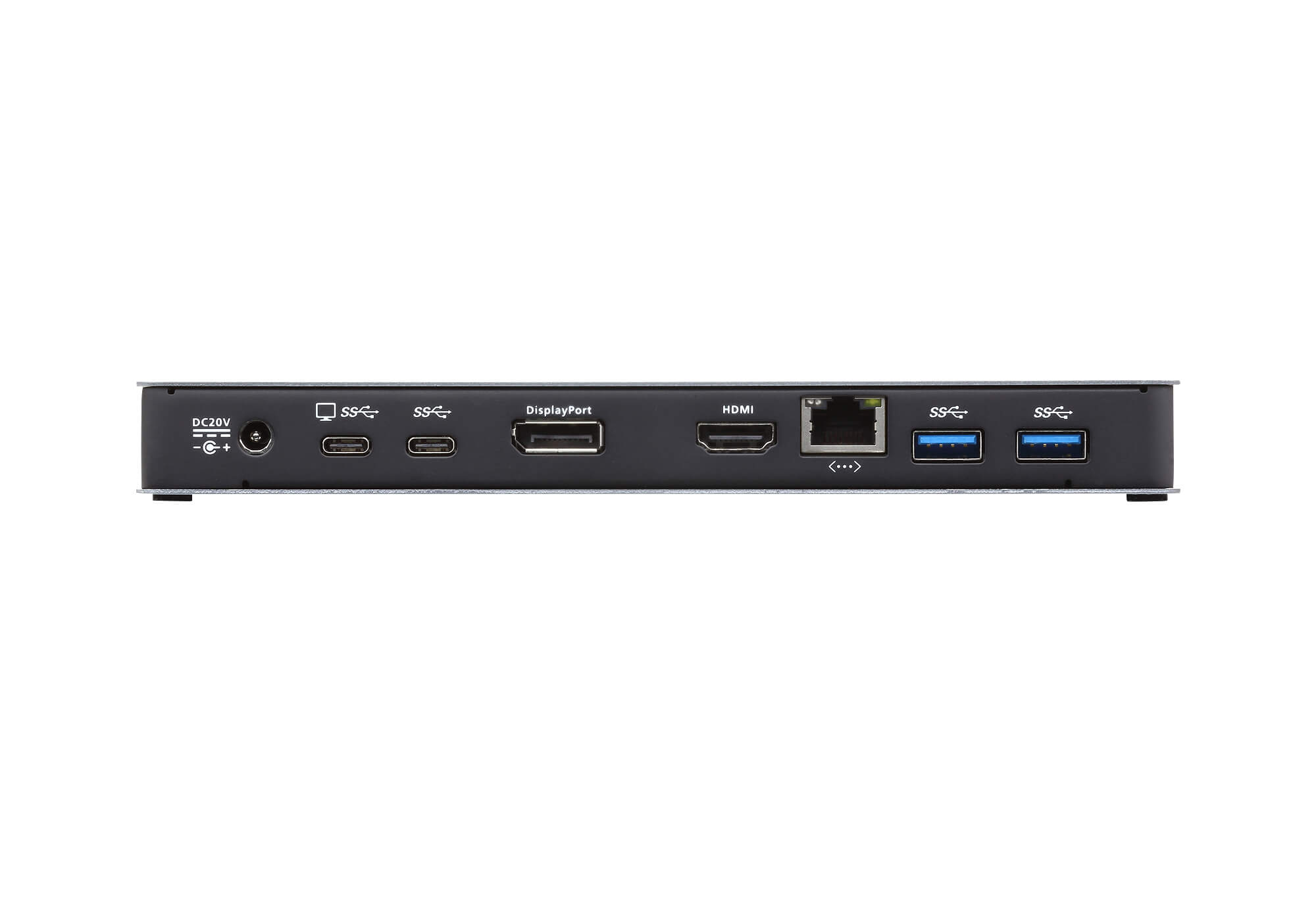

Computer Connections 1
Connectors
Device 1 x USB-C Female (Black, Data only)
3 x USB3.1 Gen1 Type A Female (Blue)
Computer 1 x USB-C Female (Black)
Video Output 1 x Displayport Female (Black)
1 x HDMI Female (Black)
LAN Ports 1 x Gigabit Ethernet Female (Black)
Audio Inputs 1 x 3.5mm Stereo Input Female (Black)
Audio Outputs 1 x 3.5mm Stereo Output Female (Black)
Power Jack 1
LEDs
Power 1 (White)
Video Resolution Single-View:
DisplayPort- 3840×2160@30*
or
HDMI – 4096×2160@30

Dual-View**:
DisplayPort 1 – 2048×1200@60*
HDMI 2 – 1920×1200@60

*For video output to work through a USB-C port, it must support DP Alt Mode. The UH3230 supports DP++ standard for using optional active/passive video adapter to convert DP signals to DVI/HDMI.
** For Dual-View to work, a computer’s graphics card must support MST technology. Mac computers only support a single-view output.Power ConsumptionDC20V , 90WPackage Contents1 x USB-C CableEnvironmentalOperating Temperature0–40°CStorage Temperature-20–60°CHumidity0–80% RH, Non-condensingPhysical PropertiesHousingMetalWeight0.56 kg ( 1.24 lb )Dimensions (L x W x H)20.00 x 9.07 x 2.15 cm
(7.87 x 3.57 x 0.85 in.)NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

  • 1x UH3230 USB-C Multiport Dock
  • 1x USB-C Cable
  • 1x AC Power Adapter with Cable
  • 1x User Instructions
