UCE3250 Aten CAT 5 50m USB 2.0 4-port Extender

£199.00 inc VAT

Aten UCE3250 USB 2.0 with 4-port USB Hub over CATx extender can easily send the USB signals via Cat.5/5e/6 cable up to 50at data rate of High Speed (480Mb/s). The UCE3250 transmits data through signal packages with better compatibility and preserves the integrity of the data over long distances. The power supply at the remote UCE3250 unit helps provide sufficient power to any type of USB device, such as flash drives, Keyboards, mice, webcams, scanners, or printers, etc. The extender does not require any additional software installation.

Data Sheet

Manual

SKU: UCE3250 Categories: , , Tags: ,

Description

The UCE3250 4-port USB 2.0 Cat 5 Extender is a two-unit device that serves as a USB hub and a USB extender. The UCE3250 unit can connect as many as 4 USB peripherals from up to 50 meters away from your computer over a Cat 5 / 5e / 6 Ethernet cable.

The UCE3250 transmits data through signal packages with better compatibility and preserves the integrity of the data over long distances. The power supply at the remote UCE3250 unit helps provide sufficient power to any type of USB device, such as flash drives, Keyboards, mice, webcams, scanners, or printers, etc.

With its durable metal housing, this high-quality UCE3250 USB extender provides a fast and fl exible solution for industrial applications. In addition, the compact size and integrated wall mounting enables space-saving installation.

Features

UCE3250 Features:

  • High-Speed USB 2.0 compliant with a data transfer rate of up to 480 Mbps
  • Extension distance of up to 50m over a Cat 5/5e/6 cable
  • Receives up to 4 USB peripherals of all types – flash drives, keyboards, mice, webcams, scanners, printers and more
  • Metal mechanical with wall mount design supports industrial deployment
  • Supports Windows®, OS X®, and Linux®
  • Plug- and- play

Specifications

UCE3250 Specifications:

Function UCE3250L UCE3250R
Connectors

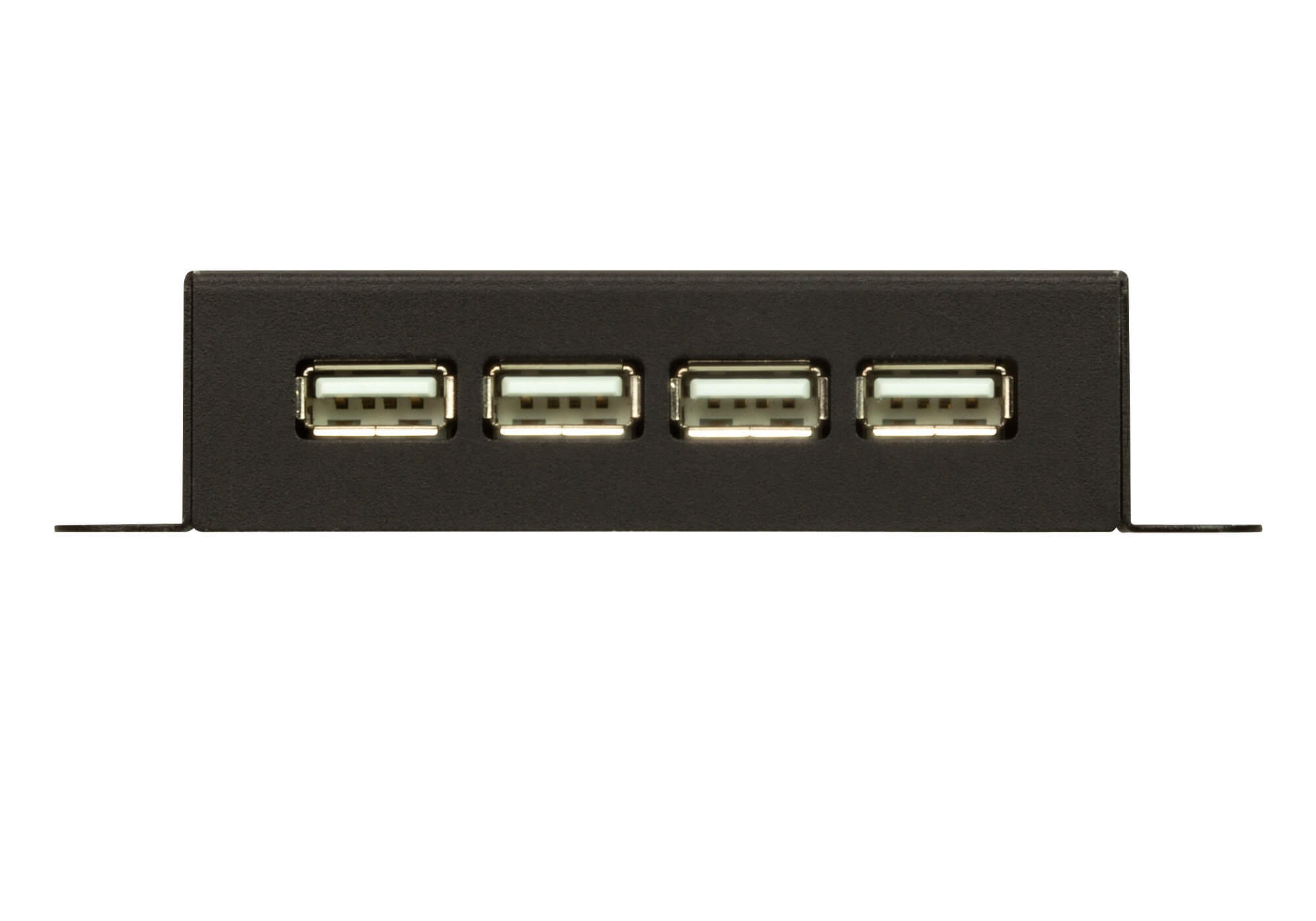

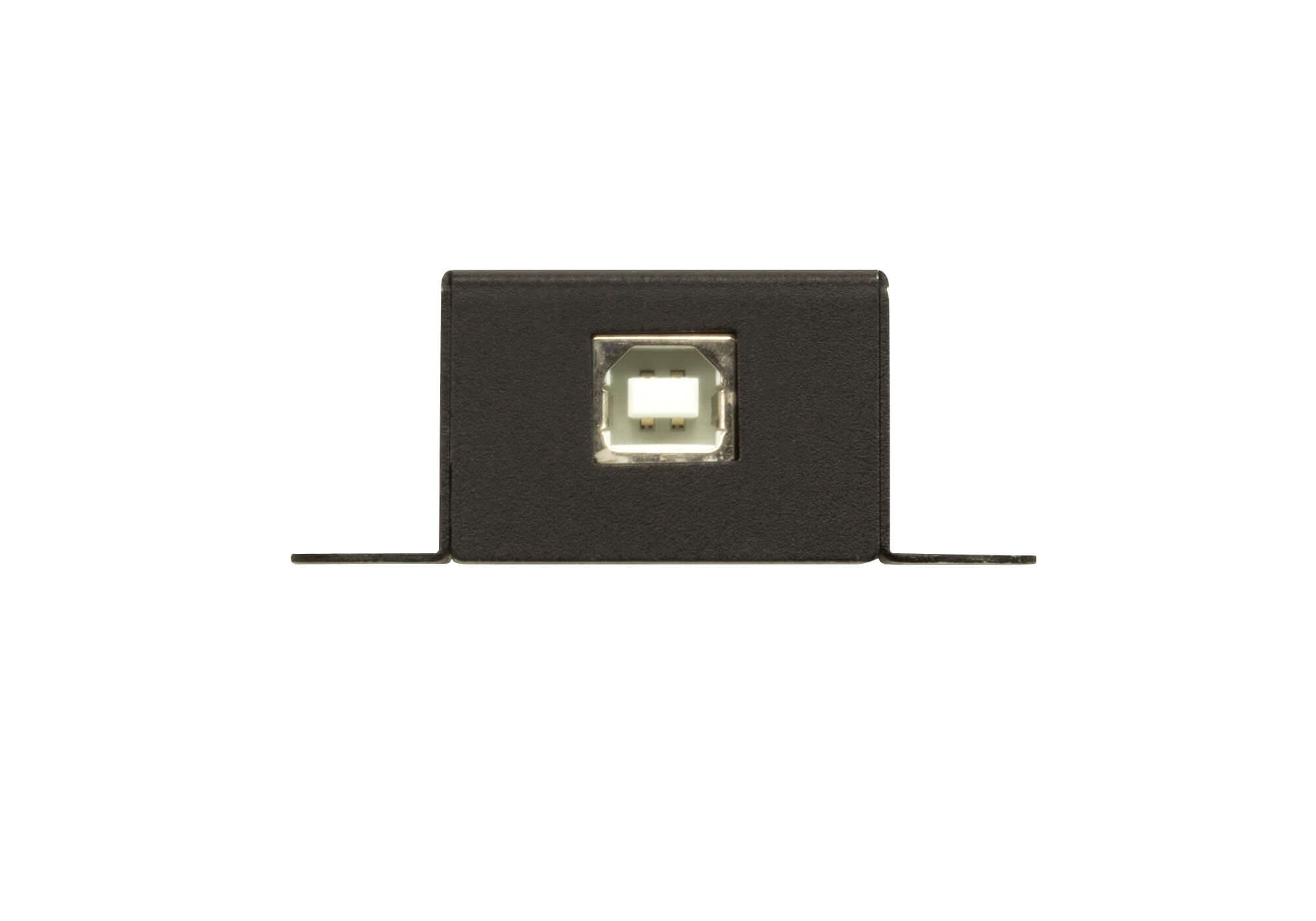

USB Port 1 x USB Type B Female 4 x USB Type A Female

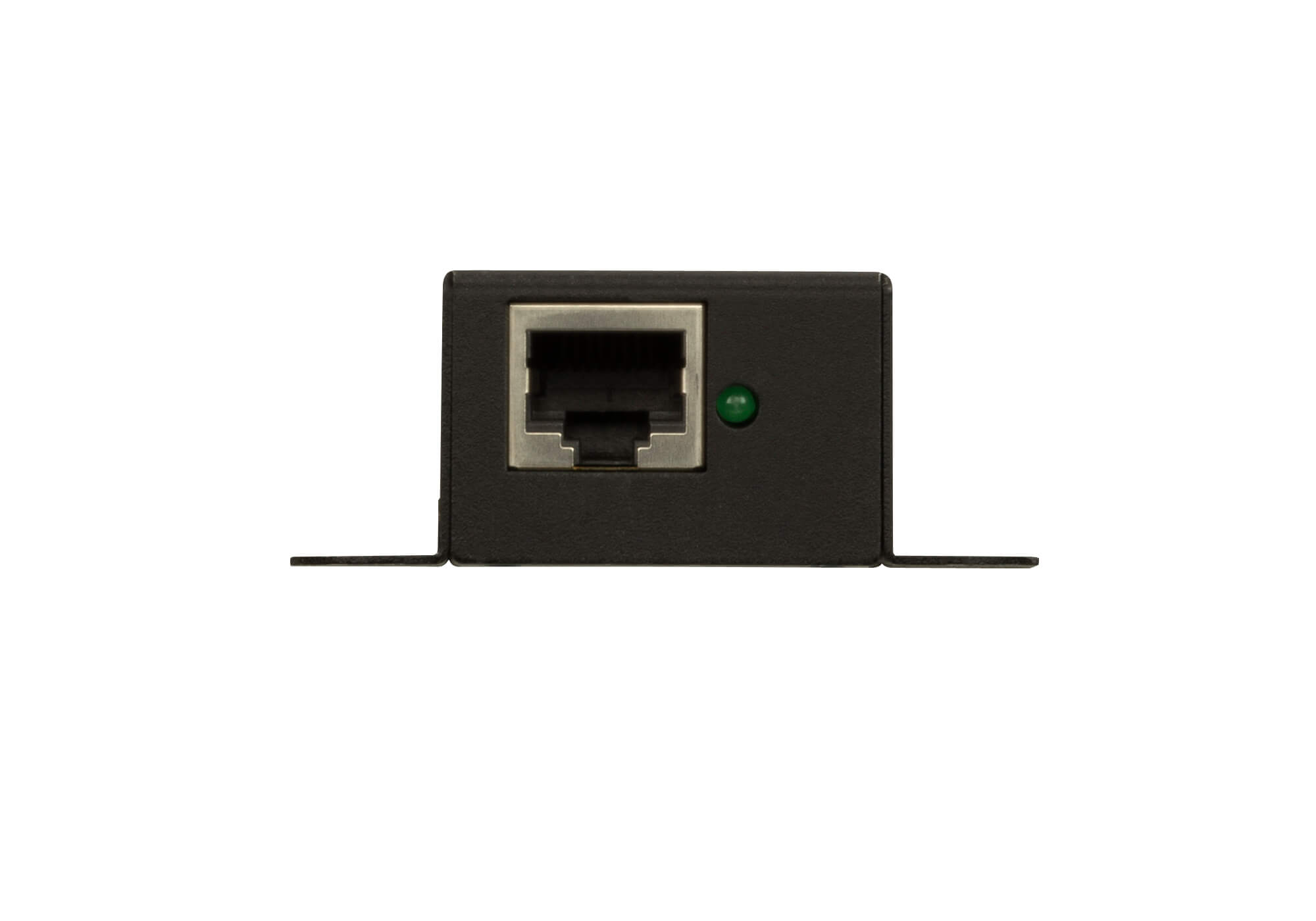

Link 1 x RJ45 Female 1 x RJ45 Female

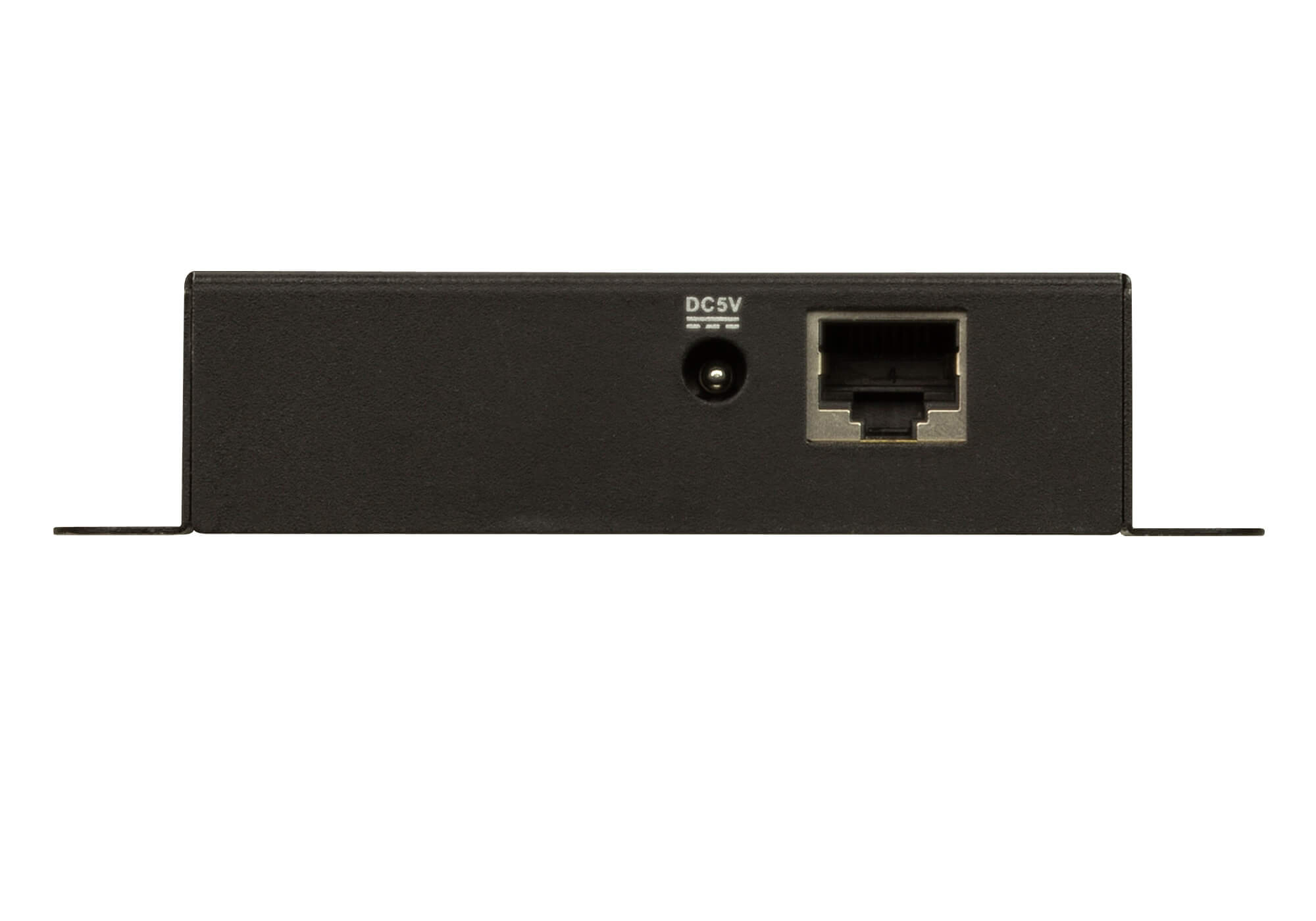

Power N/A 1 x DC Jack
USB Specification 2.0 / 1.1 High / Full / Low Speed 2.0 / 1.1 High / Full / Low Speed
USB Devices Supported N/A 4 Devices
Power Consumption Bus-Powered Self-Powered, 5V, 13W
Environmental
Operating Temperature 0–50°C 0–50°C
Storage Temperature -20–70°C -20–70°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Weight 0.09 kg ( 0.2 lb ) 0.16 kg ( 0.35 lb )
Housing Metal Metal
Dimensions (L x W x H) 6.70 x 6.02 x 2.37 cm
(2.64 x 2.37 x 0.93 in.)		 6.33 x 11.04 x 2.41 cm
(2.49 x 4.35 x 0.95 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

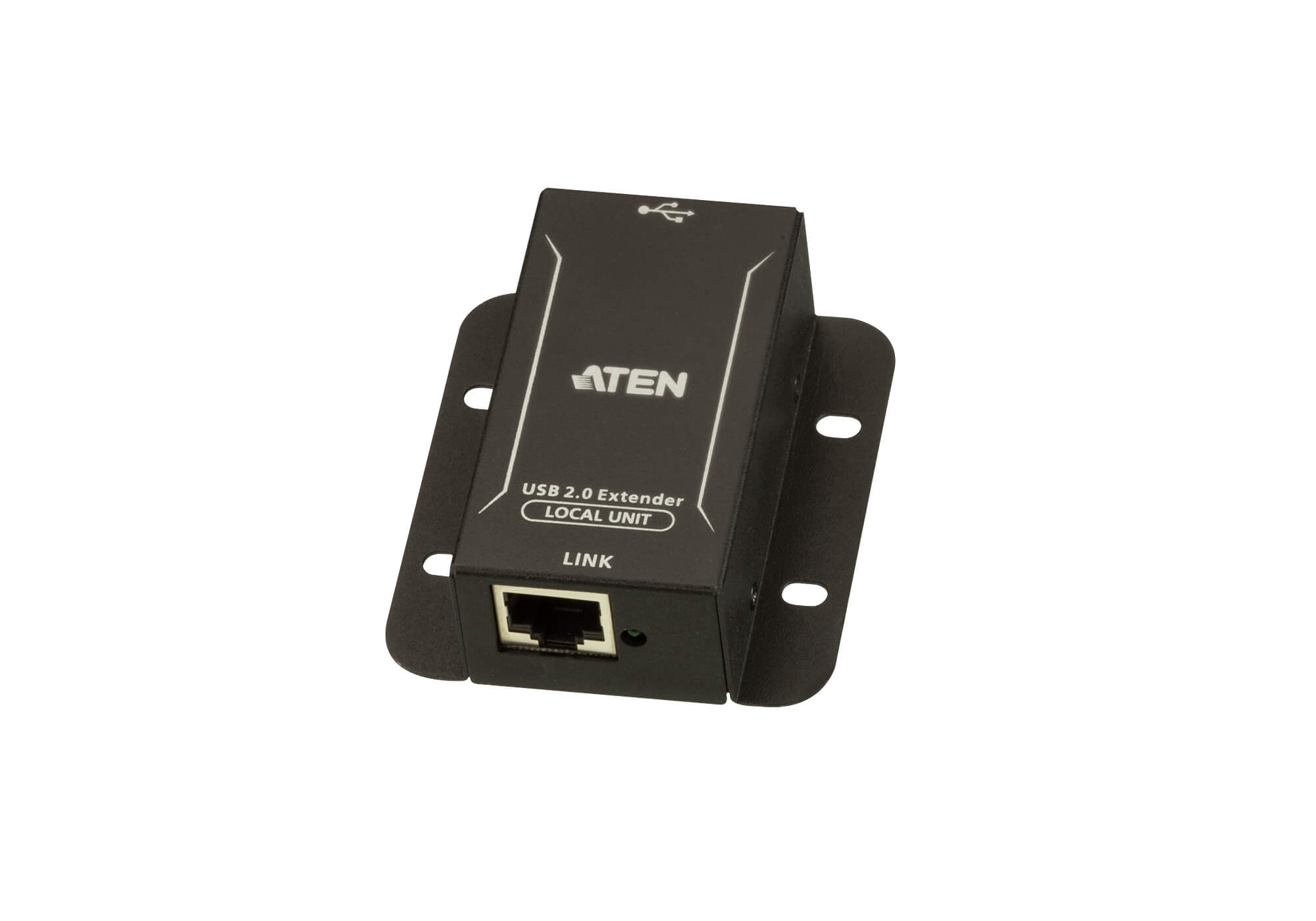

  • 1x UCE3250L 4-port USB 2.0 CAT 5 Extender (Local unit)

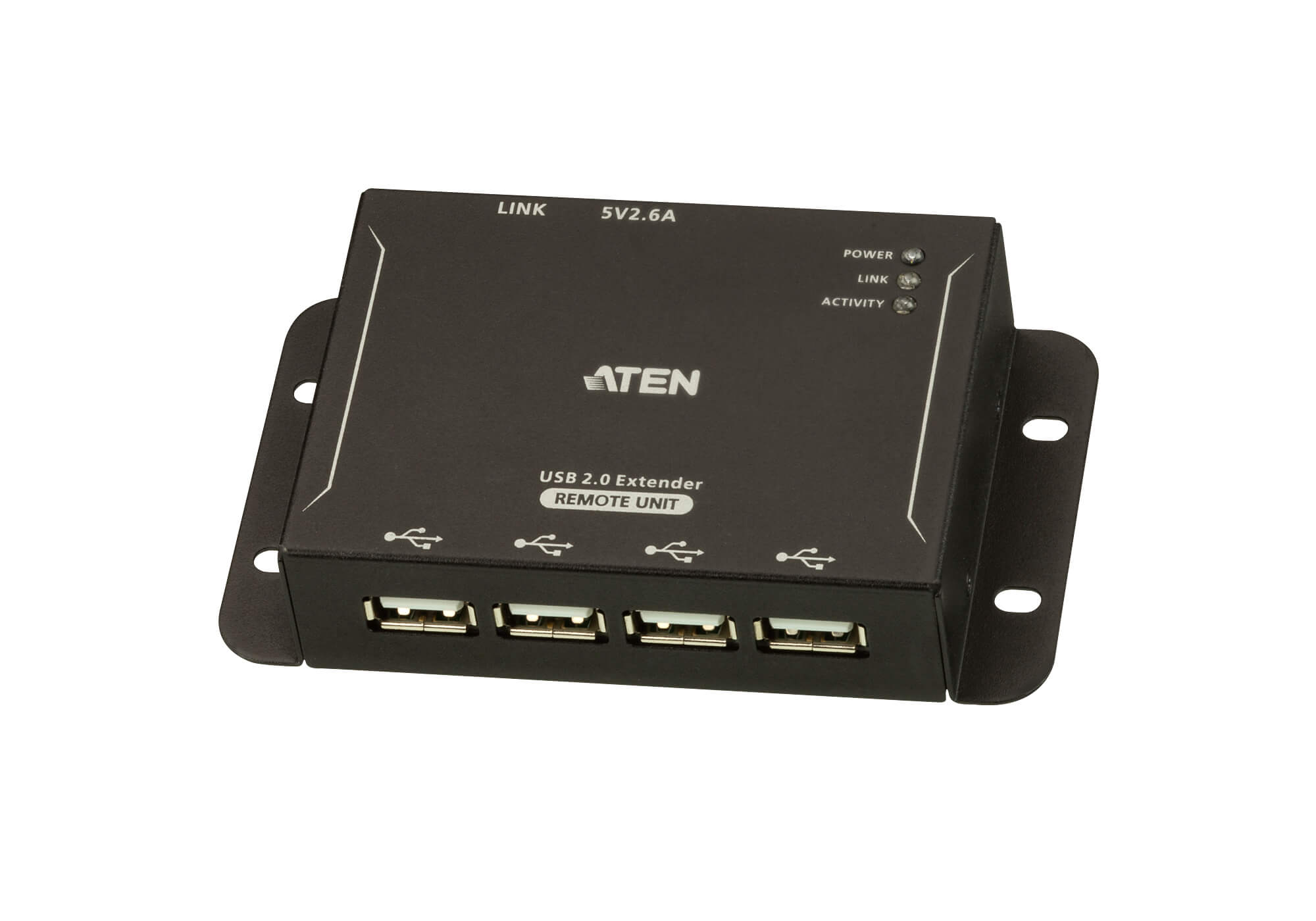

  • 1x UCE3250R 4-port USB 2.0 CAT 5 Extender (Remote unit)
  • 1x USB Type-A Male to Type-B Male Cable
  • 1x Power Adapter
  • 1x User lnstructions
