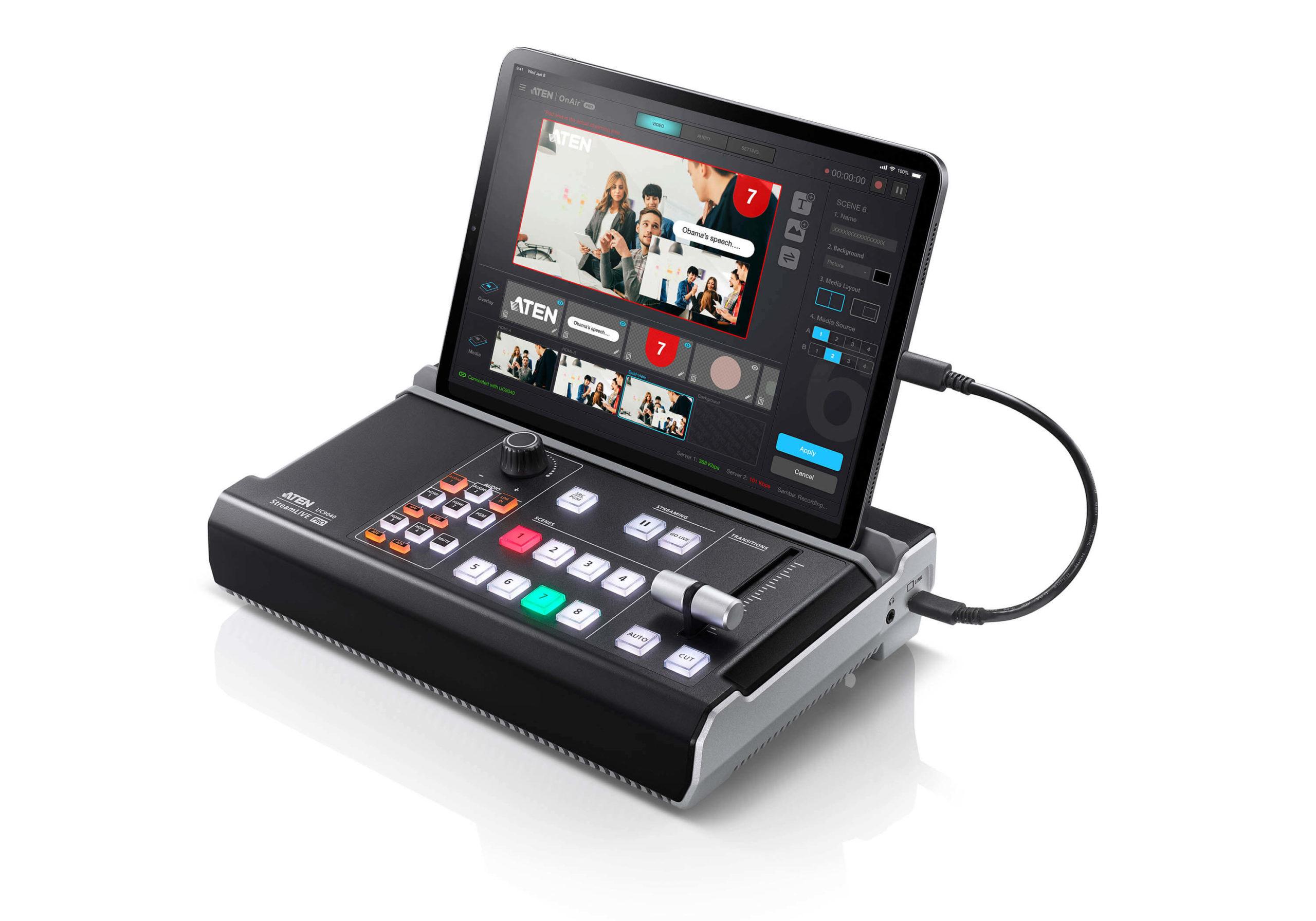

UC9040 Aten StreamLive PRO All-in-one Multi-channel AV Mixer

The Aten UC9040 All-in-one design to simplify streaming workflow – Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer. It offers professional-quality live streaming everywhere – Compatible with every major platform and can livestream to two platforms at the same time from virtually anywhere. Intuitive and powerful app – OnAir™ Pro App preset up to 8 scenes with custom video layout, preview and full screen program monitoring, real-time editing, transitions in stunning DVE, PbP or PiP visual effects, and graphic and text overlays for a professional finish. Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys.

Data Sheet

UC9040 Manual

SKU: UC9040 Categories: , , , , , , , , , , , , , , , , Tag:

Description

All-in-one Brings It All Together

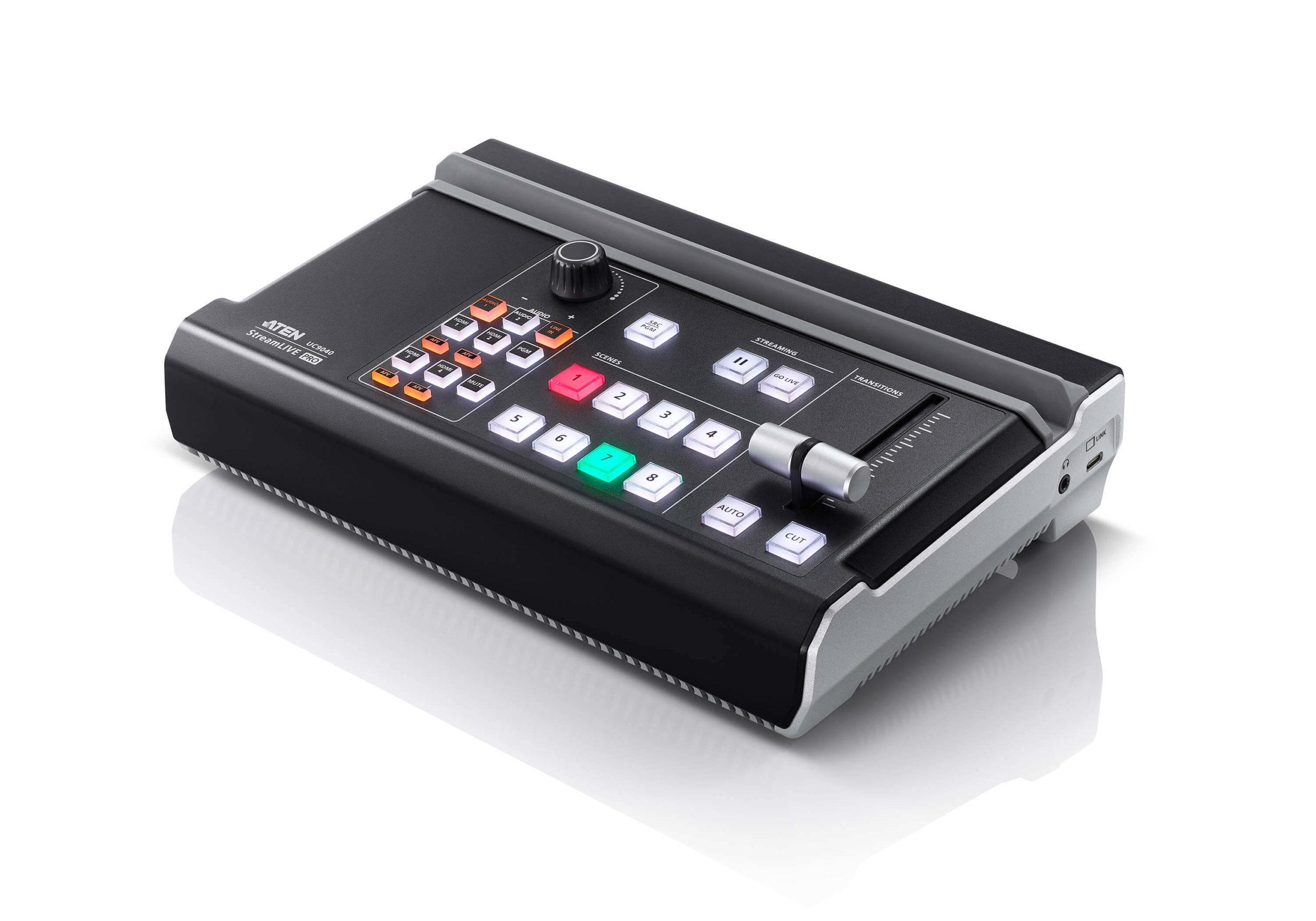

ATEN UC9040 StreamLIVE PRO is an innovative all-in-one 4-port HDMI AV mixer, packed with direct streaming, direct recording, and scene-based switching capability. It is optimized for the easiest operation and uses iPad to replace a computer and a monitor for controlling, preview monitoring, real-time editing, and arranging elements into your program mixing, thus reducing the complexity of your livestreaming setup’s equipment and cabling. It is literally a live production studio in a box but with extremely powerful features.

Intuitive, Pro-level Livestreaming and Recording for Anyone

StreamLIVE is specifically designed for live video streamers who are struggling with complex streaming equipment. Everything you need for livestreaming is ready to just plug-n-play with the intuitive control interface from hardware console to touch screen on iPad. It is incredibly easy to use and works with all your existing equipment. You can set up quickly, use drag and drop to design custom layouts, and make live switching between the video sources or scenes a breeze.

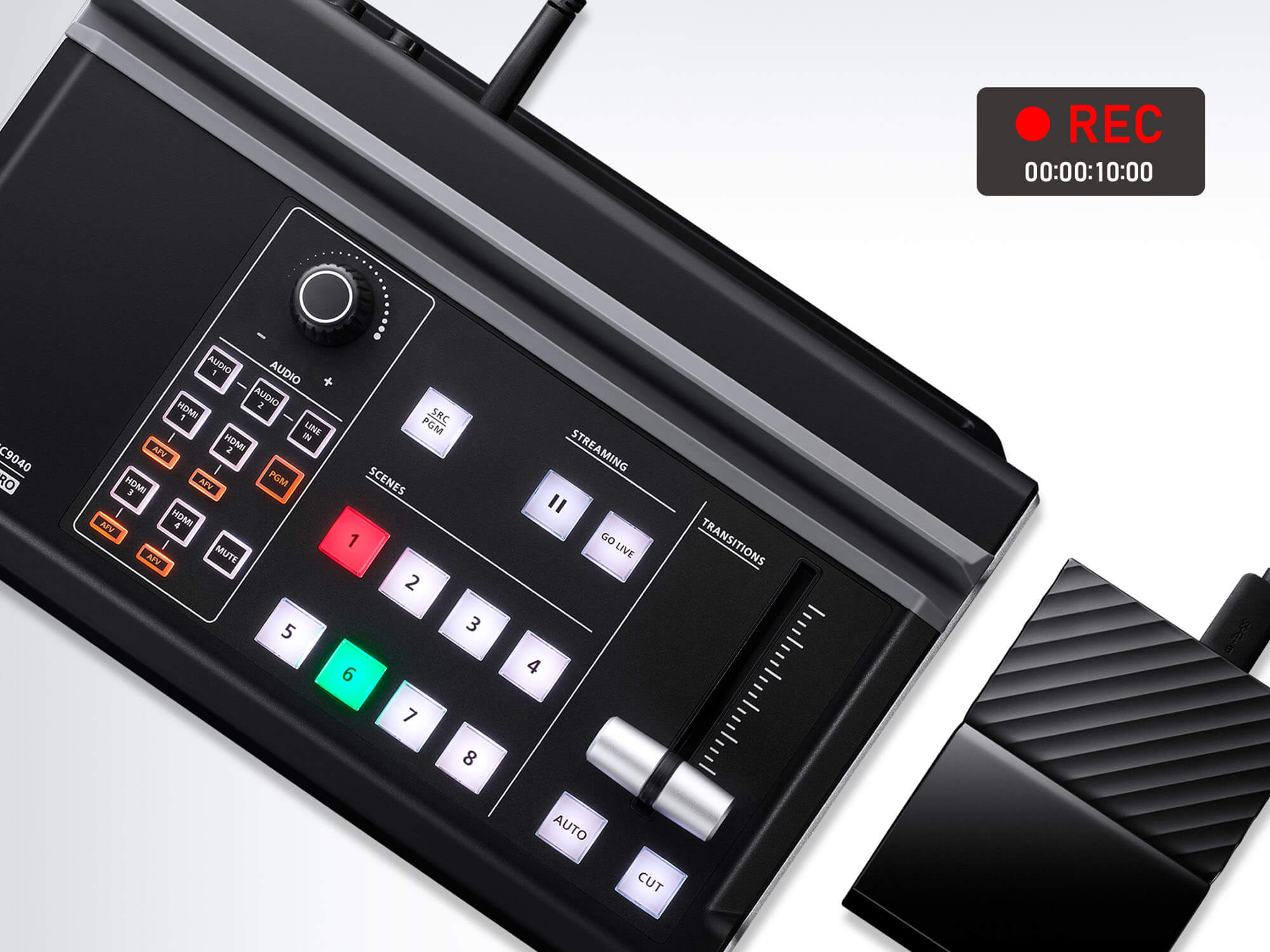

Content Recording for On-demand Video

Choose to livestream your content or record it for on VOD (video on demand) experiences! The StreamLIVE PRO supports recording of video content and saving it directly to a connected external hard drive via USB. Record incredible videos in H.264 encoded FHD quality that are perfect for any production and post-production workflow and can work instantly with the most popular software packages. Build up a library of video on demand or use it for any content management system.

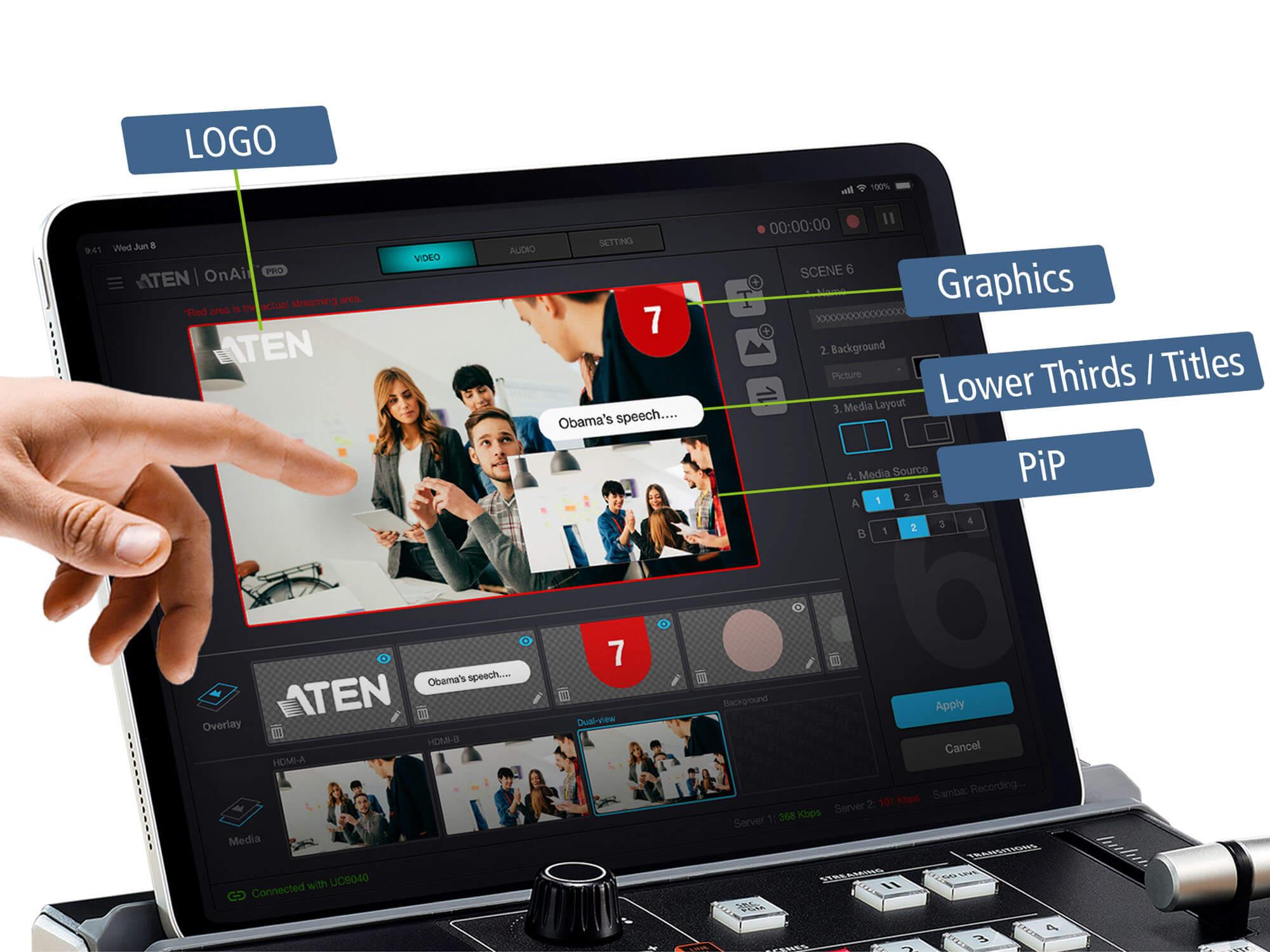

OnAir™ Pro App, Custom Layouts in Seconds

The OnAir Pro app includes powerful DVE (Digital Video Effects) and a built-in graphic editor to make your iPad a perfect personal video editing suite. Freely combine, crop, and scale video to make professional PnP, PbP, or split layouts. Add transparent png images and backgrounds from your iPad’s photo library, and create title overlays with professional-looking effects in seconds. Everything can de done easily and in real time for great production, even during filming.

Direct Dual-Streaming, Reach A Wider Audience

With the built-in hardware encoder and streaming server, StreamLIVE PRO can livestream to two platforms at the same time virtually anywhere via Ethernet connection, including Facebook, YouTube, Vimeo, Livestream, or any custom RTMP destination, all in stable high-quality full HD. It can also free up your computer for monitoring streams and engaging with audience, saving you from a costly powerful computer for encoding.

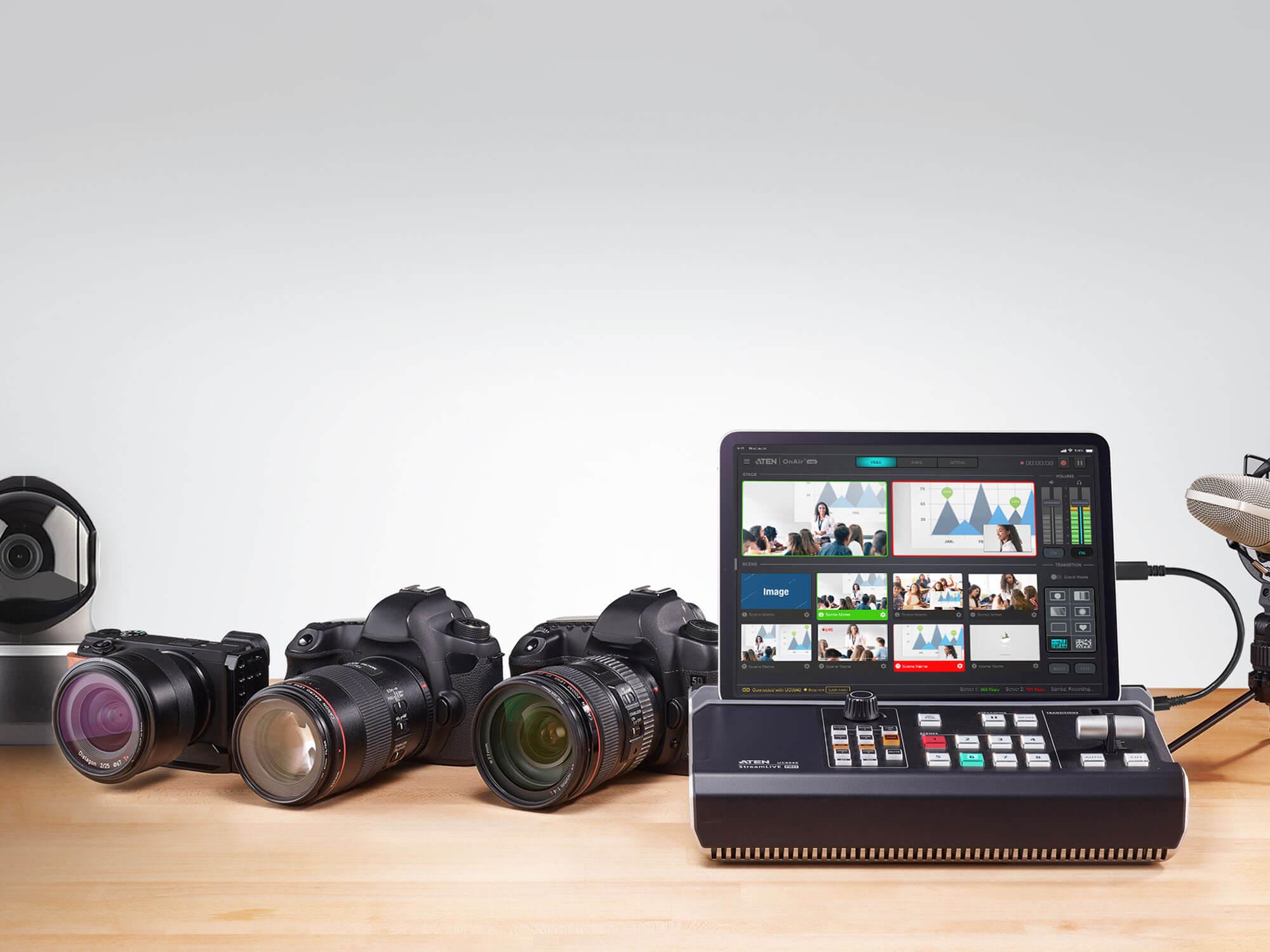

Portable, Stream Anywhere You Like

The all-in-one design greatly reduces setup time and streamlines the video production process. StreamLIVE packs heavy-duty performance and great features into just 2.3 kg, making StreamLIVE a portable video production system that you can take anywhere. Use this compact video production studio with an iPad, cameras, mic, and cables without the need for carrying a monitor and computer with you.

UC9040 Features:

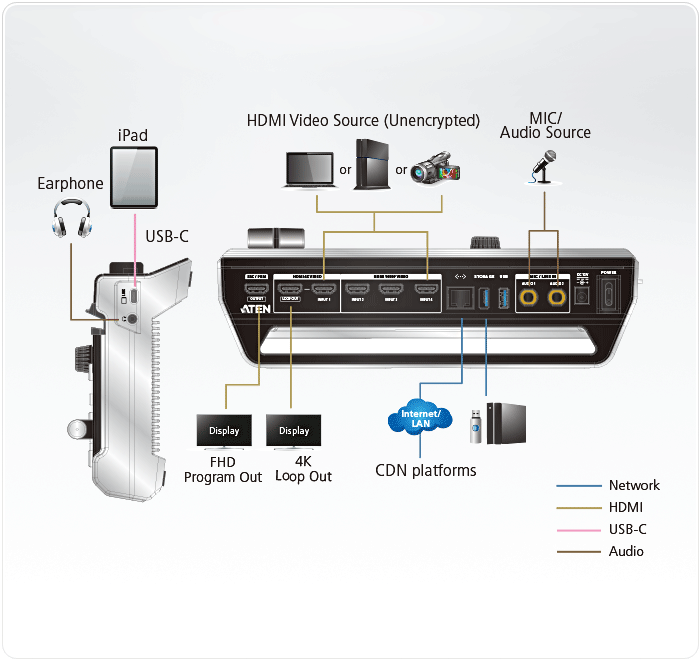

The StreamLIVE™ PRO is a portable, all-in-one, multi-channel audio/video mixer device that integrates a 1080p video capture, video recorder, video switch, stream broadcaster, video converter, video splitter, and audio mixer into one compact box to eliminate the hassle of working with different AV equipment. The StreamLIVE™ PRO makes HDMI video sources broadcast for higher quality live stream to CDN platforms such as YouTube Live, Facebook,and Twitch.

For added convenience, the StreamLIVE™ PRO provides an intuitive app – OnAir™ Pro App, making it easy to monitor, edit image layouts, and DVE, PiP or PbP settings. There are eight stunning DVE transitions including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square. The StreamLIVE™ PRO is PC and software-free, and with its well-designed control panel, it makes livestreaming operations smooth and effortless. You can even preview video and monitor audio levels before going live with your web broadcast! To get started, simply connect video/audio sources, and an Ethernet with an ATEN app-installed iPad, and you are ready to roll.

Whether you’re capturing, editing or streaming, the StreamLIVE™ PRO with its ergonomic and practical design, it is flexible enough to fit all independent live streaming broadcasting environments. With a rich feature set, the StreamLIVE™ PRO addresses the challenges that independent live streaming broadcasters encounter and provides an easy-to-use solution.



  • All-in-one design to simplify streaming workflow – Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
  • Professional-quality live streaming everywhere – Compatible with every major platform and can livestream to two platforms at the same time from virtually anywhere
  • 1080P Recording – Features a media recording that can be used to record a program and save recordings directly to a connected external hard drive or flash drive via USB

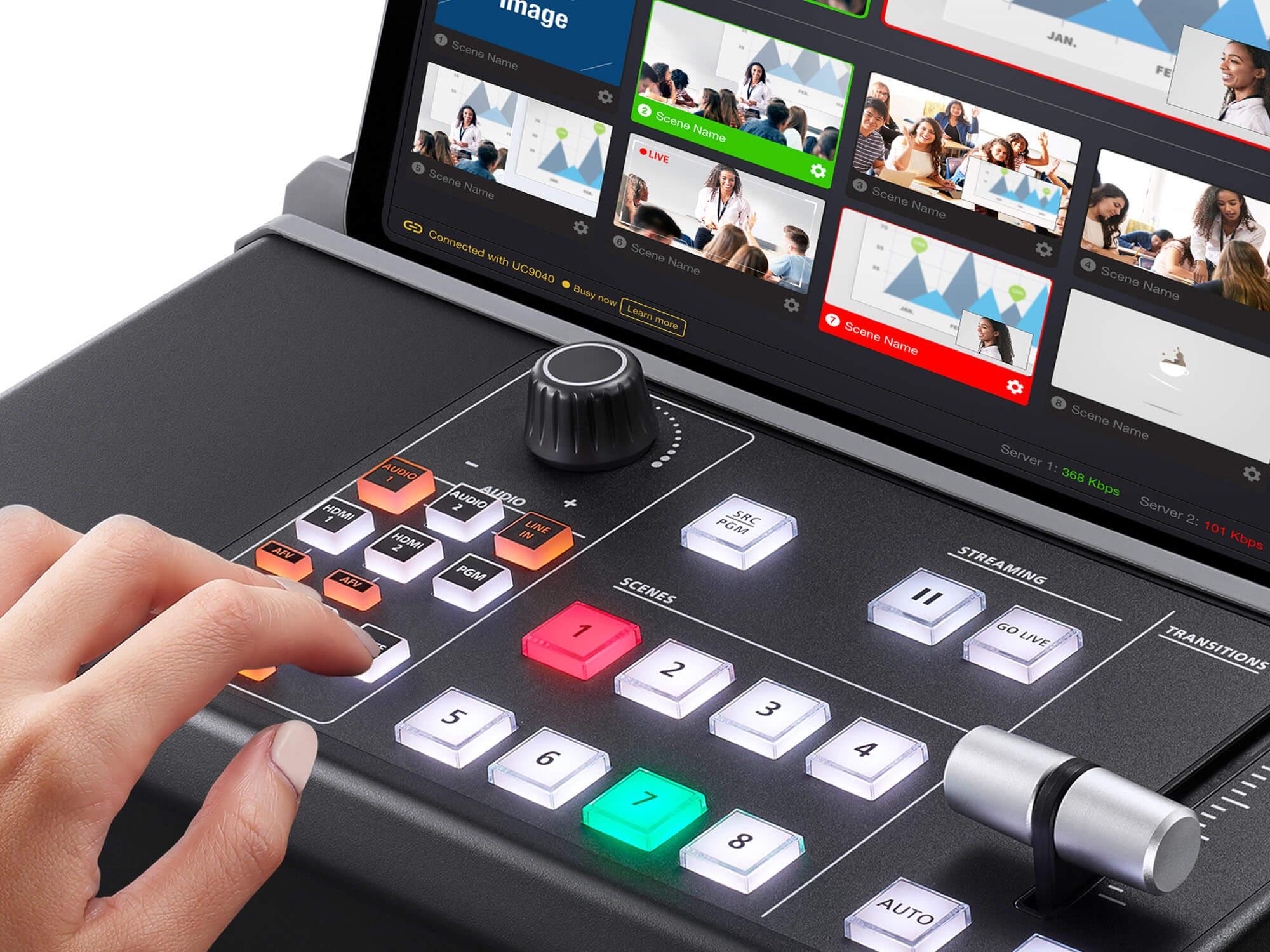

  • Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys
  • Intuitive and powerful app – OnAir™ Pro App preset up to 8 scenes with custom video layout, preview and full screen program monitoring, real-time editing, transitions in stunning DVE, PbP or PiP visual effects, and graphic and text overlays for a professional finish
  • DVE (Digital Video Effect) Video Transition – Including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square.
  • Storyboard-like management – quick and smooth transitions control for professional programming during live events
  • Audio Management – Multi-channel audio mixing with faders, meters, and balance for every input
  • Fanless and optimized thermal air flow system for quiet operation
  • Multitask designed handle-stand to enhance portability and ergonomic comfort angle

UC9040 Specifications:

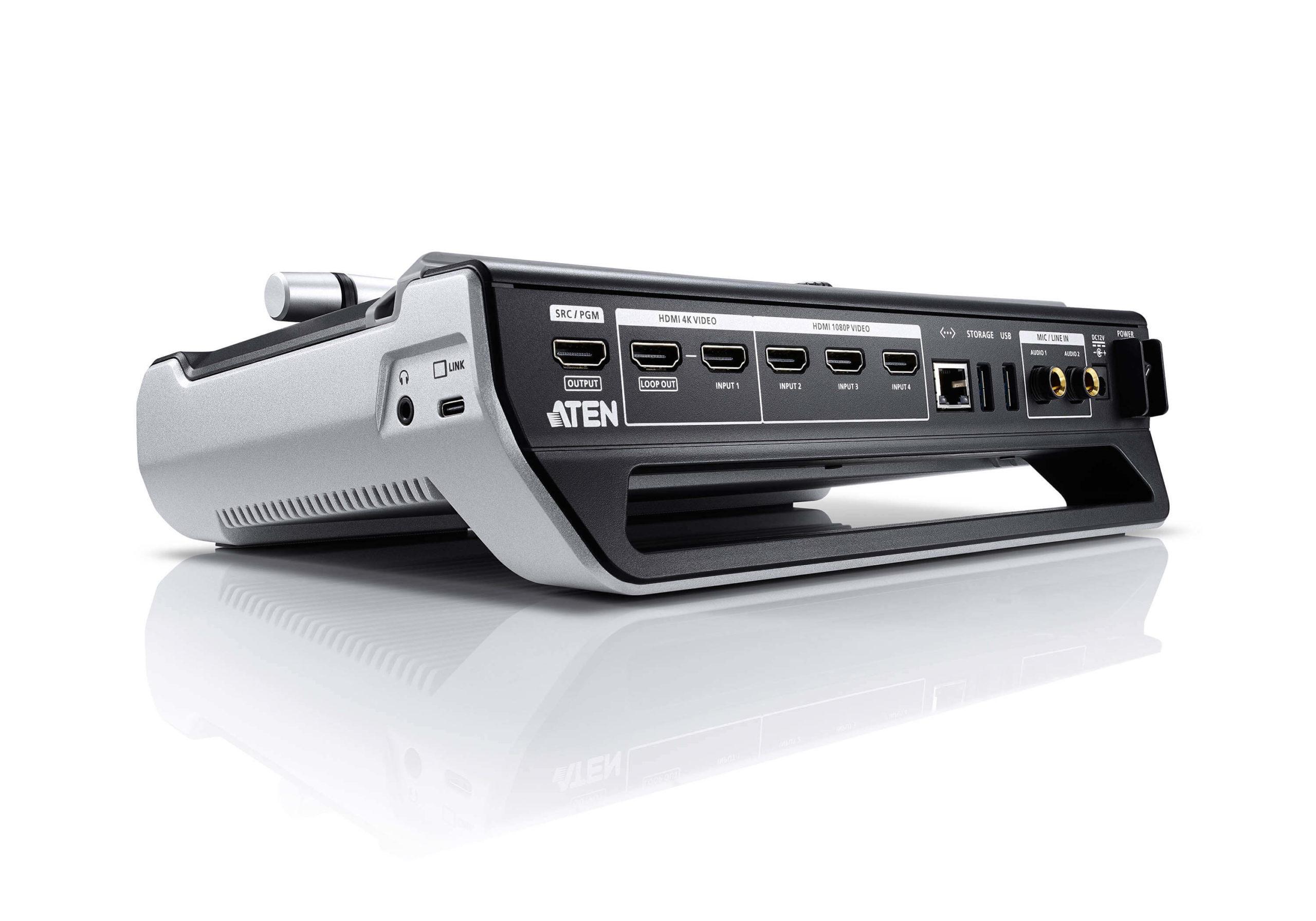

Video Input
Interfaces 1 x 4K HDMI Type-A Female
(up to 2160p60, unencrypted)
3 x HDMI Type-A Female
(up to 1080p60, switcher, unencrypted )
Video Output
Interfaces 1 x 4K Loop-Thru HDMI Type-A Female
(up to 2160p60, unencrypted)
1 x PGM HDMI Type-A Female
(up to 1080p60, unencrypted)
Video Sampling 4:2:2 8-bit
Color Space 4:2:2 YUV
Video Resolution HDMI 1 Input:
VGA(640×480@60), 480p60/50/30/25, SVGA(800×600@60), XGA(1024×768@60), 720p60/50/30/25, SXGA(1280×1024@60), WXGA+(1440×900@60), UXGA(1600×1200@60 RB), WUXGA+(1680×1050@60), 1080p60/50/30/25, 2160p60/50/30/25HDMI 2/3/4 Input:
VGA(640×480@60), 480p60/50/30/25, SVGA(800×600@60), XGA(1024×768@60), 720p60/50/30/25, SXGA(1280×1024@60), WXGA+(1440×900@60), UXGA(1600×1200@60 RB), 1080p60/50/30/25SRC/PGM HDMI Output:
480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25

HDMI Loop-Through Output:
VGA(640×480@60), 480p60/50/30/25, SVGA(800×600@60), XGA(1024×768@60), 720p60/50/30/25, SXGA(1280×1024@60), WXGA+(1440×900@60), UXGA(1600×1200@60 RB), WUXGA+(1680×1050@60), 1080p60/50/30/25, 2160p60/50/30/25
Audio Inputs
Interfaces HDMI captured inputs (stereo)
2 x 1/4″ TRS jack (dual mono)
Audio Outputs
Interfaces HDMI outputs (stereo)
1x 1/8″ TRS jack (stereo)
Network Protocol Dual-stream encoder supports direct live streaming to CDN server over ethernet using Real Time Messaging Protocol (RTMP/RTMPS)
——————————————————-
Video EncodingFormat: H.264
Bit rate: 512Kbps~10Mbps
Color Format: YUV420
Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25
——————————————————————-
Audio EncodingFormat: AAC
Sampling rate: 48kHz
Bit rate: 128kbps
Recording Storage Max. video resolution: 1080p30/25
File format：MP4
Support media: USB 3.x compatible mobile drive (HDD / SSD) or flash drive, at least 32GB of free space
Connection 2x USB 3.1 Gen1 Type-A Female (blue)
1x USB Type-C
1x GbE LAN port
Environmental
Operating Temperature 0 – 40 ºC
Storage Temperature -20 – 60 ºC
Humidity 0 – 80% RH, Non-Condensing
OS Support • iPad Pro (3rd gen or later) with iOS 11 and above
The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required):
• iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later)
Power
Maximum Input Power Rating DC12V, 7.5A
Power Consumption DC12V:17.37W:184BTU
Physical Properties
Housing Metal
Weight 1.85 kg ( 4.07 lb )
Dimensions (L x W x H) 28.85 x 18.99 x 9.66 cm
(11.36 x 7.48 x 3.8 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1 x UC9040 StreamLIVE™ PRO
  • 1 x USB-C to USB-C Cable
  • 1 x USB-C to USB-A Cable
  • 1 x Power Adapter
  • 1 x User Instructions
