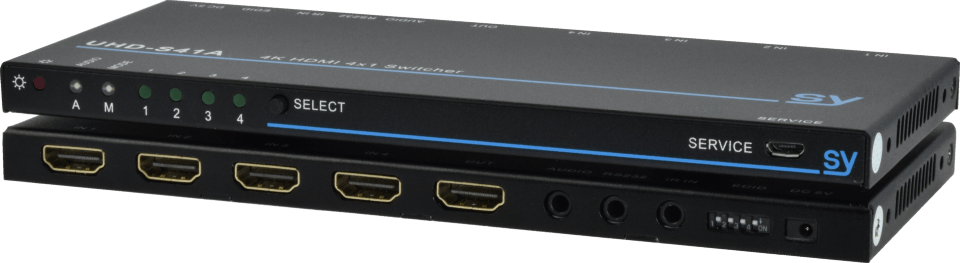

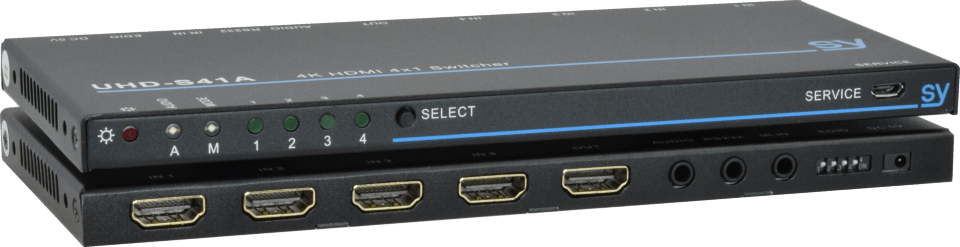

SY-UHD-S41A S Y Electronics 4 Port HDMI UHD Switch

The S Y Electronics SY-UHD-S41A 4 ports HDMI UHD 1.4 switch is HDCP compliant, supports 3D and UHD @30Hz with built-in compensation and sync signal technology. The switch supports VESA and SMPTE Video, 480p/1024×768/720p//1280×800/1080p/3840×2160@30Hz. The SY-UHD-S41A allows you to connect up to 4 HDMI devices to be displayed on one screen one-at-a-time. No Longer Manufactured. Please See Replacement

Manual

Description

The SY-HD-S41 is a 4 x 1 UHD HDMI selection switcher offering control from the Front Panel, IR, RS232 and Auto-switching. It offers HDMI1.4a, support 3D, HDCP compliant , EDID management and support up to UHD @30Hz. The switch has a built-in gain compensation and sync signal technology and it is controllable via auto-switch, toggle button, IR & RS232 (3.5 Jack).

  • HDMI1.4a, support 3DH
  • DCP compliant
  • Support up to UHD @30Hz
  • EDID Management
  • Built-in gain compensation and sync signal technology
  • Controllable via auto-switch, toggle button, IR & RS232 (3.5 Jack)

HDMI: HDMI 1.4, support HDMI Deep Color, full 3D & 4Kx2K@30Hz
HDCP: HDCP 1.4 compatible
Video Signal: Support VESA and SMPTE Video, 480p/1024×768/720p//1280×800/1080p/3840×2160@30Hz
ARC: HDMI support ARC function
Bandwidth: 10.2Gbps
Input: 4 x HDMI, 1 x IR IN
Output: 1 x HDMI, 1 x unbalanced audio
Power Supply: DC 5V 1A
Power Consumption: 5W
Temperature: ﹣10 to 40C
Humidity: 10%-90%
Dimension: W194 x H11.4 x D80
Weight: 160
