Sale!

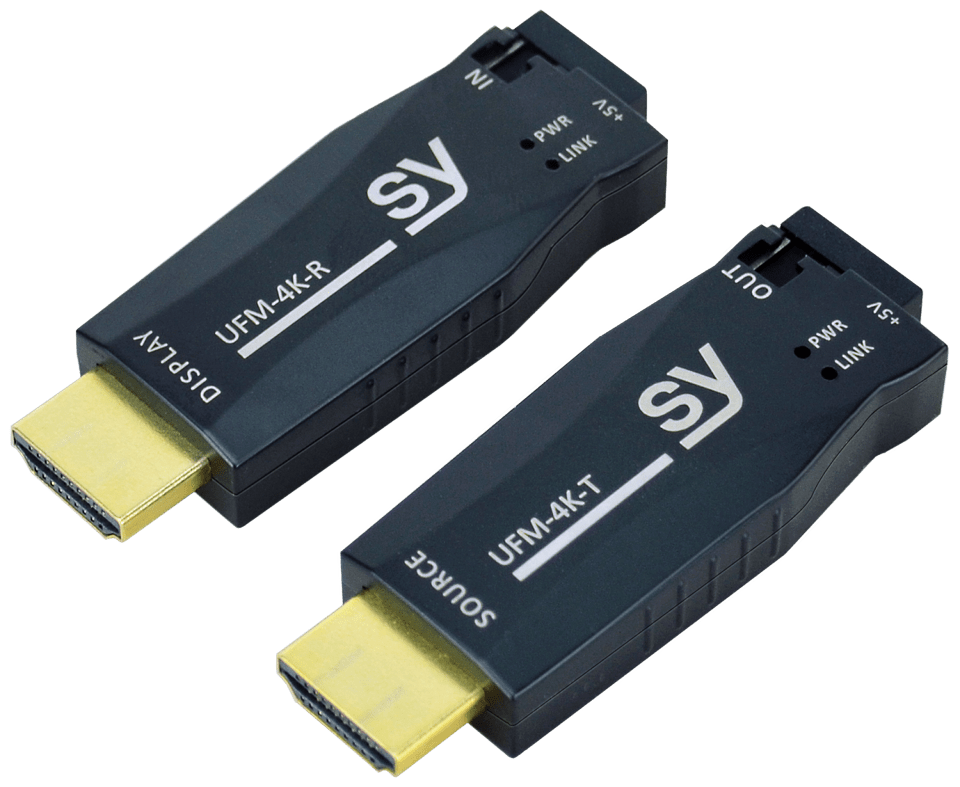

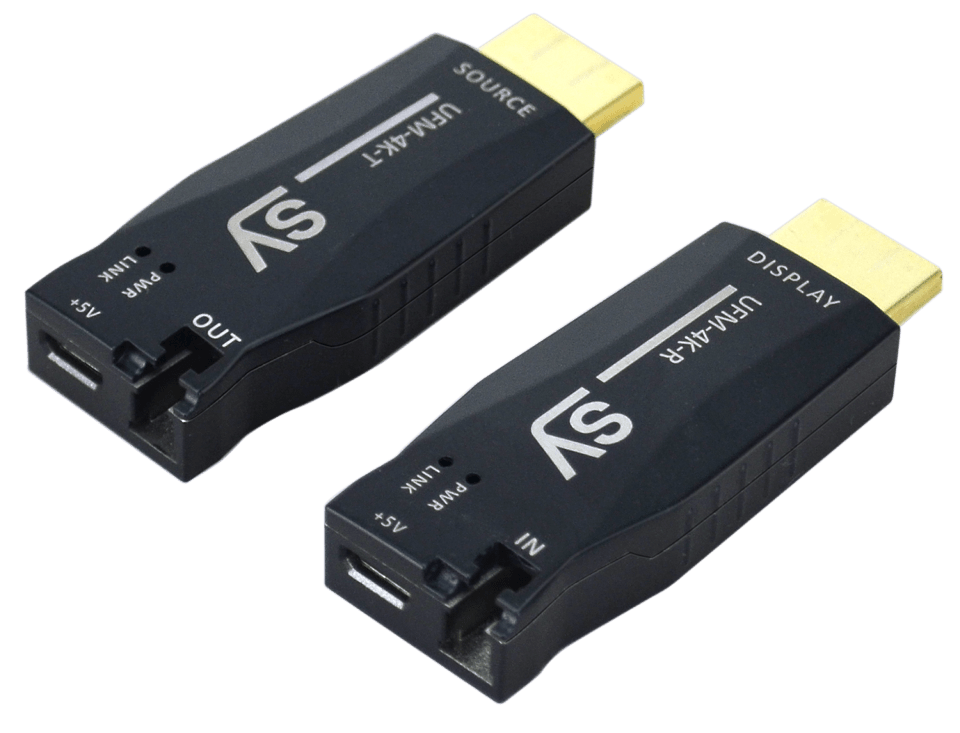

SY-UFM-4K-SET S Y Electronics 4K30 UHD Simplex (1 Fibre) Extender Dongle Set Single LC-LC Fibre

£895.00 inc VAT

S Y Electronics  SY-UFM-4K-SET mini Fibre extender uses only a single LC-LC fibre, supports HDMI 1.4 and extends signal up to 300m and up to 2000m using Multi-mode (HDCP not supported). The extender pffers pass-through EDID and it is USB powrerd.

User Manual

SKU: SY-UFM-4K-SET Categories: , , , , , , , , , , , , , , , , , , Tags: , , ,

Description

4K mini Fibre extender, using only a single filament with LC-LC connections.
Bypass EDID and HDCP 1.4 are supported for up to 300m using any type of fibre (Multi-mode or Single-mode).
Maximum distance of 2Km (Single-mode) can be achieved without HDCP encryption.

Features

  • Mini Fibre optic extender
  • Supports HDM I .4, 4K60 4:2:0 (10.2Gbps)
  • Simplex LC-LC connection (mono fibre)
  • 300m extension using Multi-mode or Single Mode
  • 2000m using Multi-mode (HDCP not supported)#
  • Pass-through EDID
  • Totally immune to EMC and ground noise



WARRANTY
2 year return to base parts and labour.

Specifications

  • Supports HDMI 1.4 up to 4K30 and HDCP1.4
  • Supports HDCP 1.4
  • Simplex LC-LC optical fibre connection
  • Power and Link status LED indicators
  • USB powered
  • Transmits up to 300m with Single-mode or Multi-mode fibre
  • Tx & Rx units plug directly into Source and Display HDMI ports
