SY-SE-10 S Y Electronics 18G 4K HDMI 2.0 Up/Down Scaler with Audio De-Embedding EDID Management & Test Pattern Generator

£229.00 inc VAT

The S Y Electronics SY-SE-10 18G 4K HDMI 2.0 Up/Down Scaler with Audio De-Embedding and EDID management test pattern generator is a must-have for all AV installers to ensure trouble-free HDMI and HDBaseT connections. It scales 4K to HD and HD to 4K, offers 16 Selectable EDID Modes and De-embedded stereo audio output.

Manual



SKU: SY-SE-10 Categories: , , , , Tags: , , ,

Description

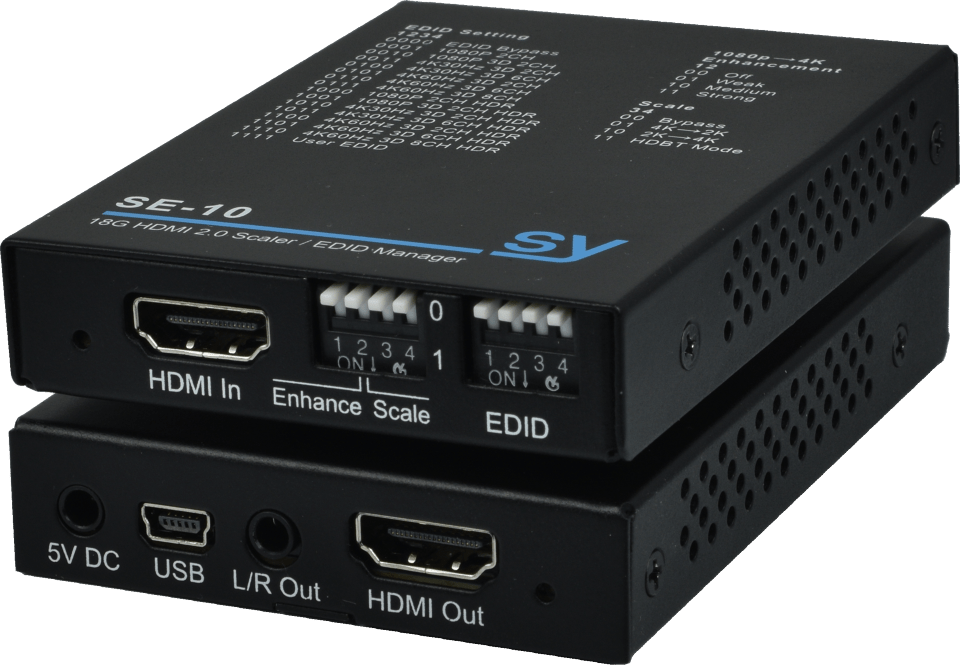

SY-SE-10 pocket sized utility test device with 4K <-> HD scaling, EDID management, test patterns and audio de-embedder. A must-have for all AV installers to ensure trouble-free HDMI and HDBaseT connections.

  • An indispensable multi-fix tool for all AV installers
    Scaler, EDID manager, test pattern generator and audio de-embedder, all within this pocket-sized utility device.
  • Scale 4K to HD and HD to 4K
    Scale up or down from HD to 4K (3840×2160) and from 4K (3840×2160) to 1080p.
  • EDID management
    14 fixed EDID settings (including HDR and Audio modes), an EDID bypass mode and one programmable EDID location.
  • Test Pattern Generator
    Two test patterns at 1080p and 4K UHD.
  • Audio De-embedder
    De-embeds the incoming audio to stereo L/R analogue.

Specifications

SY-SE-10 Specifications:

  • 18Gbps HDMI 2.0
  • 4K to 2K or 2K to 4K Scaler
  • 16 Selectable EDID Modes
  • De-embedded stereo audio output
  • Upscale video enhancement modes
  • USB or 5V PSU power inputs
  • HDCP 1.4, 2.2
