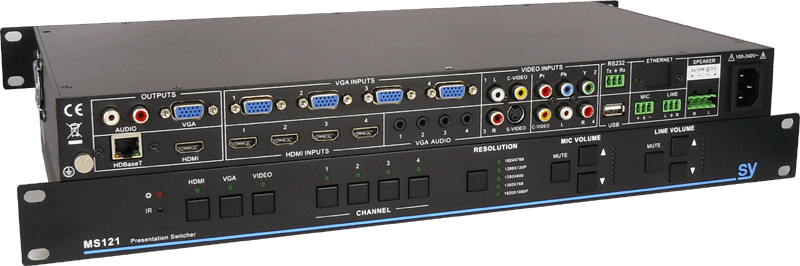

SY-MS121-AP S Y Electronics 12-Way Presentation Switch /Scaler with HDBaseT Output

SY-MS121-AP is a full HD scaler/presentation switcher with 12 video, 6 audio & 2 mic/line inputs. It scales & switches any video signal HDMI, VGA, YUV, Composite and S-Video to HDBT, HDMI & VGA simultaneously, and any audio to the built-in 2 x 20W amplifier. It’s controllable via the button, IR and RS232, 1U rack mountable and incorporates an integral 110/230V power supply. This product includes one HDBT 60m receiver SY-HDBT-70P-R.

•  12 video Inputs: 4 x HDMI, 4 x VGA, 1 x YUV, 2 x C-video & 1 x S-video
•  2 mic inputs with level control and mixer function
•  Upscale outputs to HDBT, HDMI & VGA simultaneously up to 1080P
•  HDBT output paired with receiver (SY-HDBT-70P-R) for 70m transmission
•  Built-in 2 x 20Watt Class-D Amplifier
•  Output resolutions selectable to assure preferred output
•  Output display H/V size adjustment
•  Output display H/V position adjustment
•  Mic volume and line volume level control
•  Video parameter setting and preset
•  Powerful OSD function with full control
•  Ultra-fast switching for instantaneous display
•  HDMI 1.3 and HDCP compliant
•  Firmware update via USB
•  Output freeze function
•  Front panel lockout
•  Controllable via front panel, IR, RS232

• Video Input : 4 HDMI, 4 VGA, 1 YPbPr, 1 C-Video, 1 S-Video, 0.5V~2.0Vp-p
• Video Input Signal : HDMI, VGA, RGBHV, RGBs, RGsB, RsBsGs, NTSC 3.58, NTSC 4.42, PAL, SECAM
• Video Output : 1 HDMI, 1 VGA, 1 HDBT
• Audio Input : 6 Stereo Audio for line audio for YPbPr, C-Video & S-Video, VGA ), HDMI audio (embeded digital audio), 2 Mic/Line
• Audio Output : Stereo line audio;  2x10W@8Ohm/ 2x20W@4Ohm amplifier
• Output Resolutions :1920x1080p; 1360×768; 1280x720p; 1280×800; 1024×768
• Gain : 0 dB
• Bandwidth : HDMI: 4.95Gbps(1.65Gbps per color); C-Video/S-Video: 150MHz, YPbPr: 170MHz, VGA: 375MHz
• Maximum Pixel Clock : 145MHz
• Stereo Channel Separation : >80dB @1KHz
• Frequency Response : 20Hz~20KHz
• CMRR : >90dB @20Hz to 20KHz
• DVI/HDMI Standard : DVI1.0 & HDMI 1.3,Compliant with HDCP
• Control : Front Panel, IR remote & RS232, TCP/IP control
• Power Supply : 100VAC ~ 240VAC, 50/60Hz;  65W
• Temperature :  -20 ~ +70C
• Humidity : 10% ~ 90%
• Dimension : W483 x H44 x D235mm
• Weight : 2.1Kg

Warranty

2 years parts and labour
