SY-MMU-1616 S Y Electronics 16×16 Modular Multi-Format Matrix Frame

SY-MMU-1616

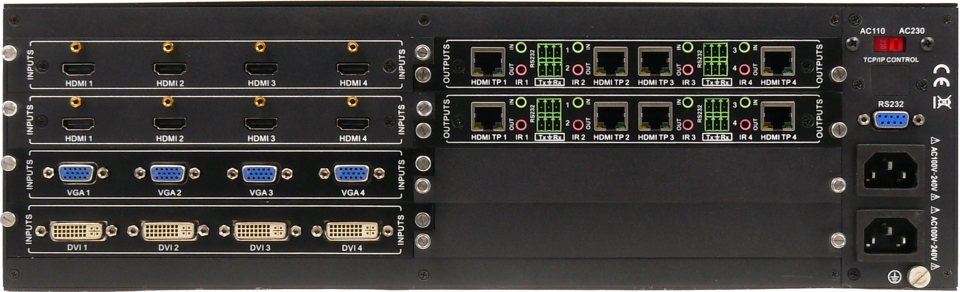

The MMU-1616 is a modular multi-format matrix with 4 input slots & 4 output slots. It supports digital and analogue signal cards and is HDCP compliant. The unit is 4U rack mountable and features RS232 and TCP/IP control and an integral 110/230V redundant power supply.

• Designed for demanding professionals
  SY MMU series provides the widest range of connections all within one chassis, offering a high-performance customisable matrix switching platform.
• Modular System
  Choose any combination of input and output HDMI (HD/4K), HDBaseT (4K/HD) UHD Fibre, DVI, SDI, VGA plus various audio I/O.
• Upgrade
  Populate the right number of inputs and outputs to meet the requirements of each specific project by upgrading and replacing input and output cards.
• Control
  With LAN, IR, and RS232, the unit is easy to control and ready for connection to SY control panels.

• 16×16 Chassis (4K UHD)
• Multi-format Transcoding Matrix
• UHD HDMI I/Os
• HDBaseT I/Os
• UHD Fibre I/Os
• DVI Seamless I/Os
• VGA I/Os
• DVI I/Os
• SDI I/Os
• RS232 Control

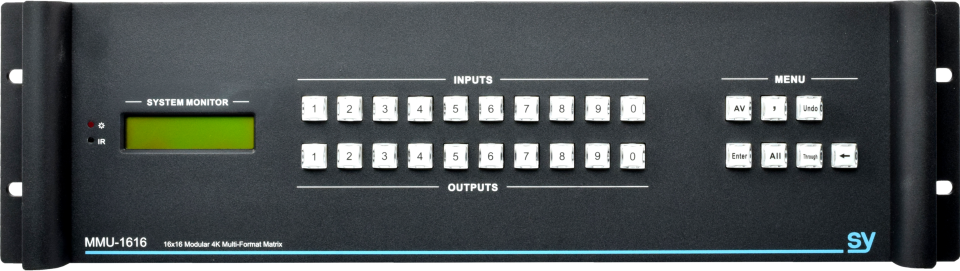

• Front Panel Control
• Infra-red Control
• EDID Management
• HDCP 1.4 Compliant
• Pixel accurate re-clocking
• Hot-swappable
• Rackmount chassis
• Internal PSU
• Data rate 10.2 Gbps
