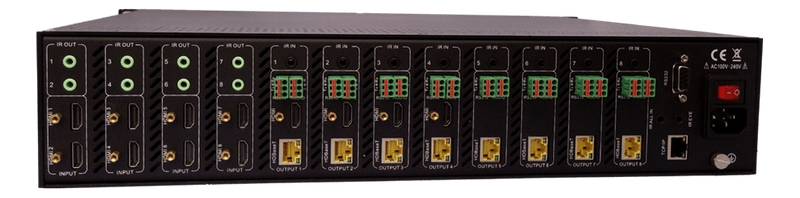

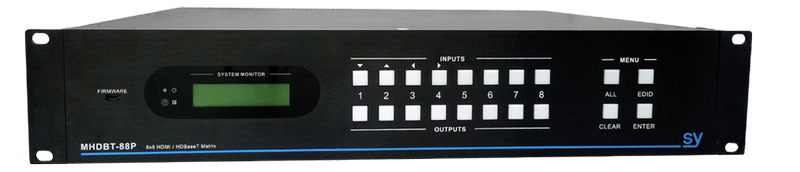

SY-MHDBT-88P S Y Electronics 8×8 HDMI to HDBT Matrix Switcher

HDBT 8 x 8 Matrix Switcher includes 8 HDMI inputs, 8 HDBT outputs, 4 local HDMI outputs, 4 stereo audio outputs. The HDBT outputs are compatible with the HDBT 70 Receiver, to transmit HDMI, IR, RS232 and PoC over a single Cat5e/Cat6 cable.

Supports 1080P@24Hz & 3D
HDCP Compliant and DVI compatible, supporting HDMI 1.4a
Powerful EDID & HDCP management
8 HDBT outputs, to transmit HDMI, IR&RS232 to a 70m distance over a Cat5E/6 cable
Supports PoC, provides power for all the receivers connected to HDBT outputs
Supports multiple control ways, including front panel, RS232, IR and optional TCP/IP control
IR OUT signal switching follow with video signal, also can be broken away from video switching
Supports remote control from receiver by IR & RS232
Multiple EDID management
LCD indicator shows connection status, switching status, HDCP status, and output resolution.

Input 8 HDMI, TMDS 2.9V/3.3V, 100Ω
8 IR
Output 4 HDMI, TMDS 2.9V/3.3V, 100Ω
8 HDBT PoC
8 IR
8 Stereo audio
Gain 0 dB
Bandwidth 6.75 Gbit/s
Maximum Pixel Clock 225MHz
Switching Speed 200ns (Max.)
HDBT Transmission Distance 70m with PoC
Resolution Range Up to 1920 x 1200 or 1080P@60Hz, supports 3D
HDCP  Supports HDCP 1.4a, auto and manual HDCP management
CMRR >90dB@20Hz~20KHz
Frequency Response 20Hz ~ 20KHz
Stereo Audio Distortion 0.1% 32Ω/70mW@1KHz, 0.1% 16Ω/105mW @1KHz
Control Buttons, IR remote & RS232 (9-pin female D connector), Optial TCP/IP control
Power Supply 100VAC ~ 240VAC, 50/60Hz;  117.8W (Full load)
Temperature  -20 ~ +70C
Humidity 10% ~ 90%
Chassis Dimension W440 x H87.8 x D380mm
Weight 5.6Kg

WARRANTY
2 year return to base parts and labour. 3rd year available with online registration.
