SY-KP4NVE-BW Features:
Combined Keypad/Controller – for space and power saving
Back box compatibility – for UK and Euro standards
Device Suite configuration – to dramatically reduce configuration time for even the most complex projects
Open standards – for ethernet and serial control protocols allows easy integration with other control systems when required
Modern design – provides a robust yet modern stylish design with a variety of finishes available
Timeout period – after a period of inactivity can be set to automate scripts, for example a Power Off sequence
Macro based scripts – each button press allows many commands simultaneously
SY Device Suite – updated in the cloud, provides drivers for most common devices and may be user written or edited
The Ethernet on-board brings the added benefits of:
Web GUI – interfaces to Windows, iOS and Android devices for web control of the Keypad
Control network devices – up to 10 network devices can be controlled from a single Ethernet Keypad Controller
Program over IP – download the project configuration files and update firmware over IP
Absolute Volume – over IP provides a definitive audio volume level with feedback directly on the Keypads with Rotary Volume Control
Wake On LAN – support for devices with embedded systems prior to Power Up
Macro functions – create and run a named Macro in addition to button controls
Real-time Feedback – the bi-directional serial and Ethernet ports bring actual device status to the Keypad and Web GUI in real-time
Each button on the SY Keypad Controllers features a tri-colour LED to allow feedback colour or state to be programmed or change on receipt of information back from the bi-directional serial ports. With a range of Keypad Controllers available ‘V’ models also feature a Rotary Volume Control
with level indication derived directly from the device being controlled.
For the user each button can be programmed to perform multiple functions and is the ideal solution to replace multiple handsets whilst providing a permanent location for the point of control, saving lost or misplaced handsets and there’s no more running out of batteries just when you need
the system to work.
The SY Keypad Controllers also fit in standard UK and European size back boxes and are supplied in a modern smooth matt white finish that is resistant to finger marks yet easily wiped clean.
Push Buttons – depending on model
Navigation buttons – depending on model
Rotary Volume Control – depending on model
4 Control ports – bi-directional RS232 or IR (software configurable)
2 Inputs ports – detect sensors for motion or room dividers
2 Output ports – control screens and relay units

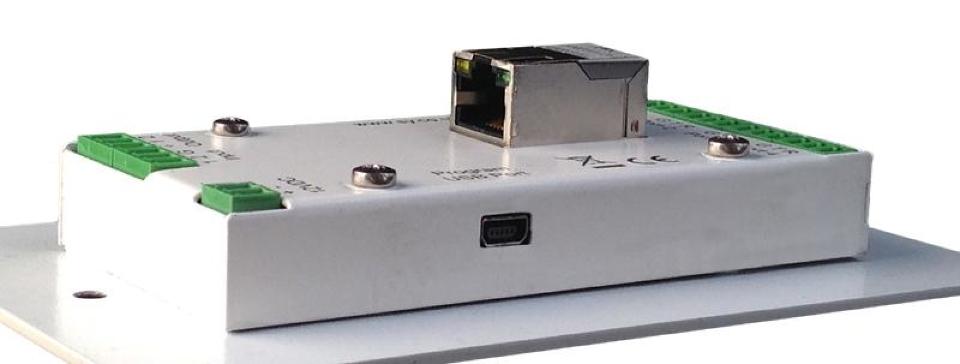

Ethernet 10/100 Port – configurable from Device Suite
Tri-colour LEDs – allows device state changes to be indicated
USB Programming port – provides power whilst uploading or downloading
Device Suite Software Features:
Easy to use – no programming required
Driver Library – for device control, updated in the cloud
Multiple actions per button – creates macros for intuitive control
8 levels per button – for Toggle or Button Group Levels
Power Up and Timeout
Panel and Button Lockout
Conditional Scripting based on real device state
Time Delays
Upload and Download Script File
Firmware Update
115200 max Baud Rate
Amend Default Folder Path
Built-In ACSII/HEX Convertor
RS232 and IR test functionality including RS232 return data capture
