SY Electronics SY-HX150-11U-18G-SET HDMI 2.0 and USB 2.0 extender has been designed to satisfy the demands of the Professional System Integrator. We have included important functions developed and carried over from our other class leading products. Using the new HX technology, Xcalibur-11U can Extend USB 2.0 data for use with KVM etc, along with HDMI 2.0 video signals. Transmit to an HX Receiver 18G 4K @60hz RGB 4:4:4 to 120m and 1080p to 150m.
Xcalibur-11U-18G – HDMI 2.0 & USB 2.0 Extender – This innovative new range has been designed to satisfy the demands of the Professional System Integrator. We have included important functions developed and carried over from our other class leading products. Using the new HX technology, Xcalibur-11U can Extend USB 2.0 data for use with KVM etc, along with HDMI 2.0 video signals. Transmit to an HX Receiver 18G 4K @60hz RGB 4:4:4 to 120m and 1080p to 150m.
The Xcalibur-11U extender set comprises 1x HX-11U Transmitter and 1x HX-11U Receiver unit which connect together over CAT6 cable.
Xcalibur-11U has features such as Bi-directional IR, PoC, control of EDID and Auto HDCP.
USB – The Xcalibur-11U supports up to USB 2.0, to 170Mbps max.

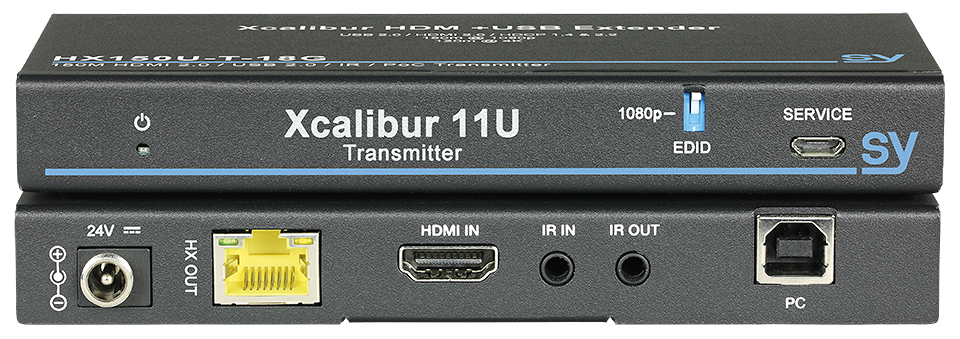

The Transmitter has a USB-B port connects to a PC.
The Receiver has 2x USB-A ports for connecting peripheral devices. Ideal for KVM, Mass Storage, camera,….
Supports Bulk, Control, Interrupt, and Isochronous Transfers.
Long Range transmission – It will transmit USB 2.0 data and HDMI 2.0 video signals to 150m @1080p or 120m @4K60 4:4:4 over a CAT6 cable, utilising the normal T568B CAT wiring standard.
HDR – The Xcalibur product range supports HDR, HDR10, HDR10+, HLG and Dolby vision.
Auto Down Scaling – The Transmitter unit has a built in Automatic Down-Scaler that. 4k signals will be scaled down to 1080p while retaining the Refresh Rate, (frame rates are always preserved). As an example, a 4K60Hz source can be displayed on a 1080p60Hz display automatically.
HDCP Control – Compliant with HDCP v1.4 and v2.2 with Automatic HDCP control.
EDID Management – As well Auto mode, there is a front panel DIP switch to set to 1080p mode.
Audio Support – Pass through of audio signals up to 7.1 channels for connection to a surround sound system with an HDMI input.
Control – The Xcalibur-11U is equipped with pass-through bi-directional IR ports to control equipment at either end, for instance the Display screen or Input Source equipment.
CEC Control – The device will pass through all CEC commands from input to output.
PoC – (Power over Cable) Only one PSU is required to power both Transmitter and Receiver unit. The PoC system lets the installer choose to connect the 24V DC power supply at either end.
Xcalibur is an innovative product range, comprised of multiple features that complement the HX technology perfectly. It is ideal for use in all applications including Digital Signage, Education, Office Displays, Meeting Rooms, Residential including Hi Spec Home Cinema.
